31AE162-401 - Yard-Man Snow Thrower (1999) Cover & Dash Parts Diagram

Snow Thrower

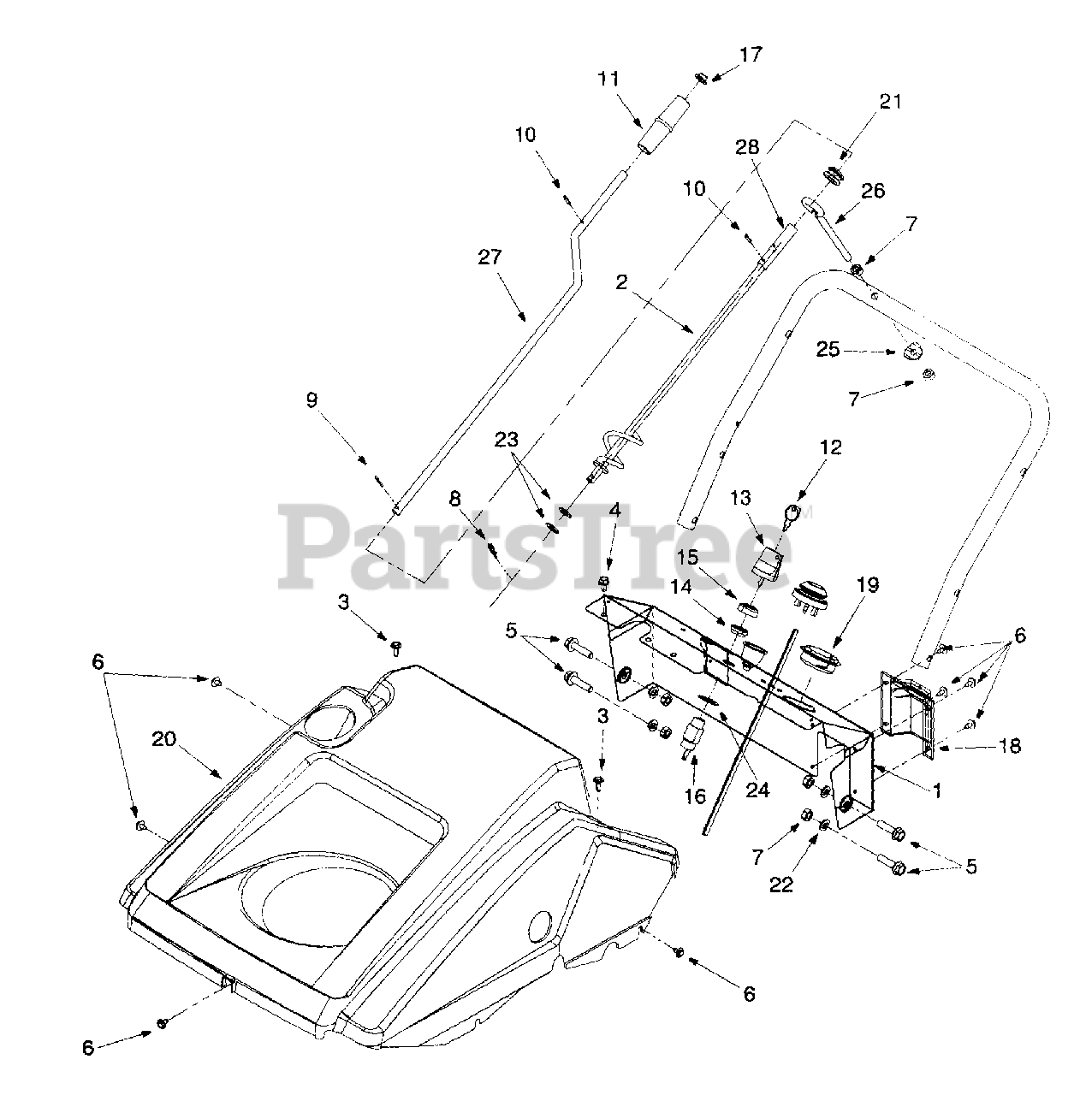

Cover & Dash Parts Diagram

  • Title
1

MTD 684-0054

Dash 21"

$

$

Not available

2

MTD 684-0126

Crank Ass'y Chute
(Superseded to 684-0126-0637)

Variations

MTD 684-0126-0637

CRANK-CHUTE LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-1003

Screw-Hex
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

4

MTD 710-1005

Screw-Hex
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1090

Flange

$3.99

$

Usually ships in 3-6 days

0

6

MTD 710-1268

Screw-Hex

$4.49

$

In Stock, only 2 left!

0

7

MTD 712-3010

Nut-Hex

$4.49

$

In Stock, Qty 20+

0

8

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, only 2 left!

0

10

MTD 715-0138

Pin Roll
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

11

MTD 720-0201A

Knob-Chute Crank

$10.99

$

In Stock, Qty 5

0

12

MTD 725-0201

Key-Ignition Switch
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

13

MTD 725-1341B

Key-Ignition-Std

$10.99

$

In Stock, only 1 left!

0

14

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

15

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

16

MTD 725-1425

Ignition Switch
(Superseded to 925-1425)

$35.99

$

In Stock, Qty 6

0

17

MTD 726-0100

Cap-Push

$4.49

$

In Stock, only 1 left!

0

18

MTD 731-1089A

Cover-Choke

$

$

Not available

19

MTD 731-1133A

Plug
(Superseded to 731-1133C)

$

$

Not available

20

MTD 731-1550A

Shroud

$

$

Currently unavailable

21

MTD 735-0234

Grommet

$5.49

$

In Stock, only 2 left!

0

22

MTD 736-0119

Washer-Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

MTD 736-0185

Washer-Flat

$3.99

$

In Stock, Qty 20+

0

24

MTD 736-0225

Washer Internal Lock

$4.49

$

In Stock, only 2 left!

0

25

MTD 736-0451

Washer

$4.49

$

In Stock, Qty 11

0

26

MTD 747-0697

Eyebolt Chute Crank

$8.49

$

In Stock, only 1 left!

0

27

MTD 747-0737

Upper Chute Crank
(Superseded to 747-0737-0637)

Variations

MTD 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

28

MTD 750-0785

Spacer
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0
