31AE162-034 - Ryobi Snow Thrower (2003) Chute, Crank, Dash Parts Diagram

Snow Thrower

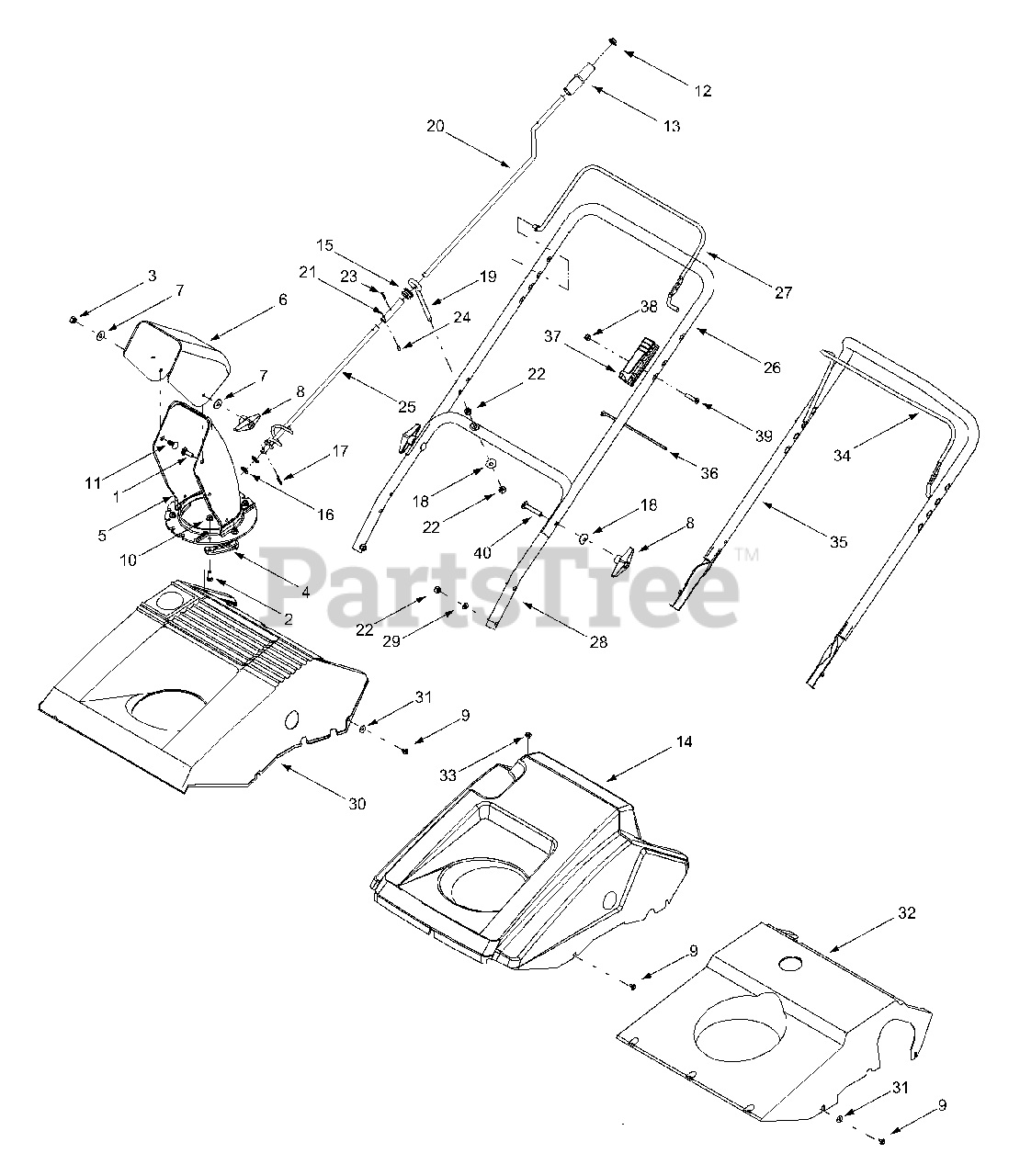

Chute, Crank, Dash Parts Diagram

  • Title
1

MTD 710-04071

Splined Carriage Screw, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 14

0

2

MTD 710-3015

Hex Cap Screw, 1/4-20 x.75

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-3068

Hex Lock Nut, 5/16-18
(Superseded to 912-3009)

$

$

Not available

4

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

5

MTD 731-0915C

Lower Chute, 5.0

$

$

Not available

6

MTD 731-0921

Upper Chute, 5.0
(Superseded to 731-04426C)

$19.99

$

In Stock, only 3 left!

0

7

MTD 736-0159

Washer, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

8

MTD 720-0284

Wingnut Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

9

MTD 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, only 2 left!

0

10

MTD 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

11

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

MTD 726-0100

Push Cap, 3/8

$4.49

$

In Stock, only 1 left!

0

13

MTD 720-0201A

Knob, 1.0 x 3.2

$10.99

$

In Stock, Qty 5

0

14

MTD 731-1765

Shroud, Black-Models E162 & E172

$

$

Not available

15

MTD 735-0234

Rubber Grommet, .44 x .94 x .50

$5.49

$

In Stock, only 2 left!

0

16

MTD 736-0185

Flat Washer, .375 x .738 x .063

$3.99

$

In Stock, Qty 20+

0

17

MTD 714-0104

Internal Cotter Pin, .072 x 1.12

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0451

Saddle Washer, .320 x .93

$4.49

$

In Stock, Qty 11

0

19

MTD 747-0697

Eyebolt, .70

$8.49

$

In Stock, only 1 left!

0

20

MTD 747-0737

Upper Chute Crank
(Superseded to 747-0737-0637)

Variations

MTD 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

21

MTD 750-0785

Spacer, .382 x .50 x 1.12
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0

22

MTD 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

23

MTD 714-0507

Cotter Pin, 3/32 x .75

$4.49

$

In Stock, only 2 left!

0

24

MTD 715-0138

Rolled Pin, 1/8 x .63
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

25

MTD 684-0126

Chute Crank Assembly
(Superseded to 684-0126-0637)

Variations

MTD 684-0126-0637

CRANK-CHUTE LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 749-0705

Upper Handle

Variations

MTD 749-0705-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 747-0946

Auger Bail (Control Handle)

Variations

MTD 747-0946-0637

No Longer Available BAIL - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 749-0796B

Lower Handle

Variations

MTD 749-0796B-0637

Handle-Lower - POWDER BLACK (0637)

$

$

Not available

MTD 749-0796B-0638

No Longer Available HANDLE-LWR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

29

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

MTD 731-1087A

Shroud, Black-Models 150 & E150

$

$

Not available

31

MTD 736-0400

Flat Washer, .194 x .62 x .063

$5.49

$

In Stock, Qty 12

0

32

MTD 731-0702

Shroud, Black-Model 140

$

$

Not available

33

MTD 710-1003

Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

34

MTD 747-0956

Auger Bail (Control Handle), Gullwing-style

Variations

MTD 747-0956-0637

Auger Drive Bail, 2 Holes - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

MTD 747-0956-0638

Auger Drive Bail, 2 Holes - MTD/TROY-BILT RED (0638)

$55.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

35

MTD 749-0711A

Upper Handle, Gullwing-style

Variations

MTD 749-0711A-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

MTD 749-0711A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 720-0295

Foam Grip, 22"

Note: (Not included with handle)

$33.99

$

Usually ships in 3-6 days

0

36

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

37

MTD 746-0883

Control (Cable) Housing

$16.99

$

In Stock, only 3 left!

0

38

MTD 712-0324

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

39

MTD 710-1270

Machine Screw, 1/4-20 x 1.31

$4.49

$

Usually ships in 3-6 days

0

40

MTD 710-0487

Carriage Screw 5/16-18

$7.49

$

Usually ships in 3-6 days

0
