31AE152-382 - MTD Gold Snow Thrower (1998) Handle Assembly Parts Diagram

Gold Snow Thrower

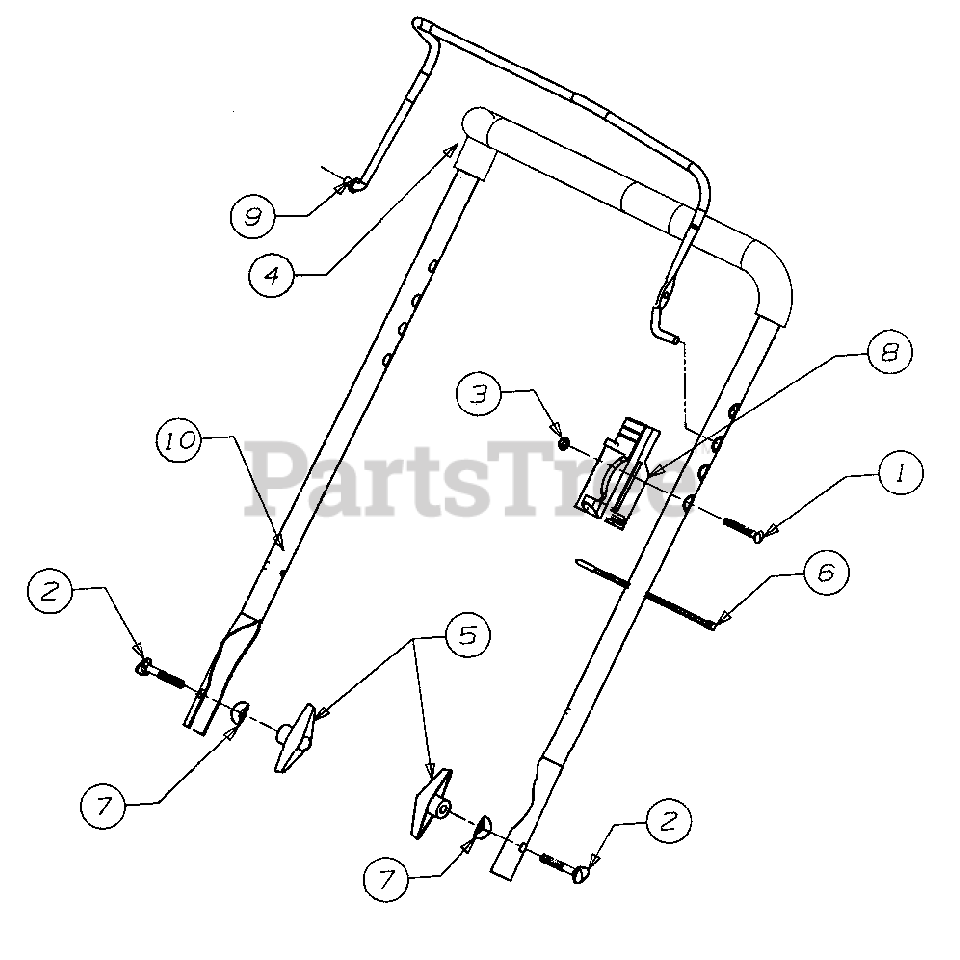

Handle Assembly Parts Diagram

  • Title

1

MTD 710-1270

Screw-Oval C-Sink L

$4.49

$

Usually ships in 3-6 days

0

2

MTD 710-1174

Bolt-Carriage

$7.49

$

In Stock, Qty 20+

0

3

MTD 712-0324

Nut Insul. Lock

$3.99

$

In Stock, Qty 16

0

4

MTD 720-0295

Grip Foam

$33.99

$

Usually ships in 3-6 days

0

5

MTD 720-0284

Knob Handle

$6.99

$

In Stock, Qty 20+

0

6

MTD 725-0157

Tie Cable

$3.99

$

In Stock, only 2 left!

0

7

MTD 736-0451

Washer Saddle

$4.49

$

In Stock, Qty 11

0

8

MTD 746-0883

Body-Lever Control

$16.99

$

In Stock, only 3 left!

0

9

MTD 747-0956

Handle Ass'y. Control

Variations

MTD 747-0956-0637

Auger Drive Bail, 2 Holes - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

MTD 747-0956-0638

Auger Drive Bail, 2 Holes - MTD/TROY-BILT RED (0638)

$55.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

10

MTD 749-0711A

Handle-Upper

Variations

MTD 749-0711A-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

MTD 749-0711A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$
