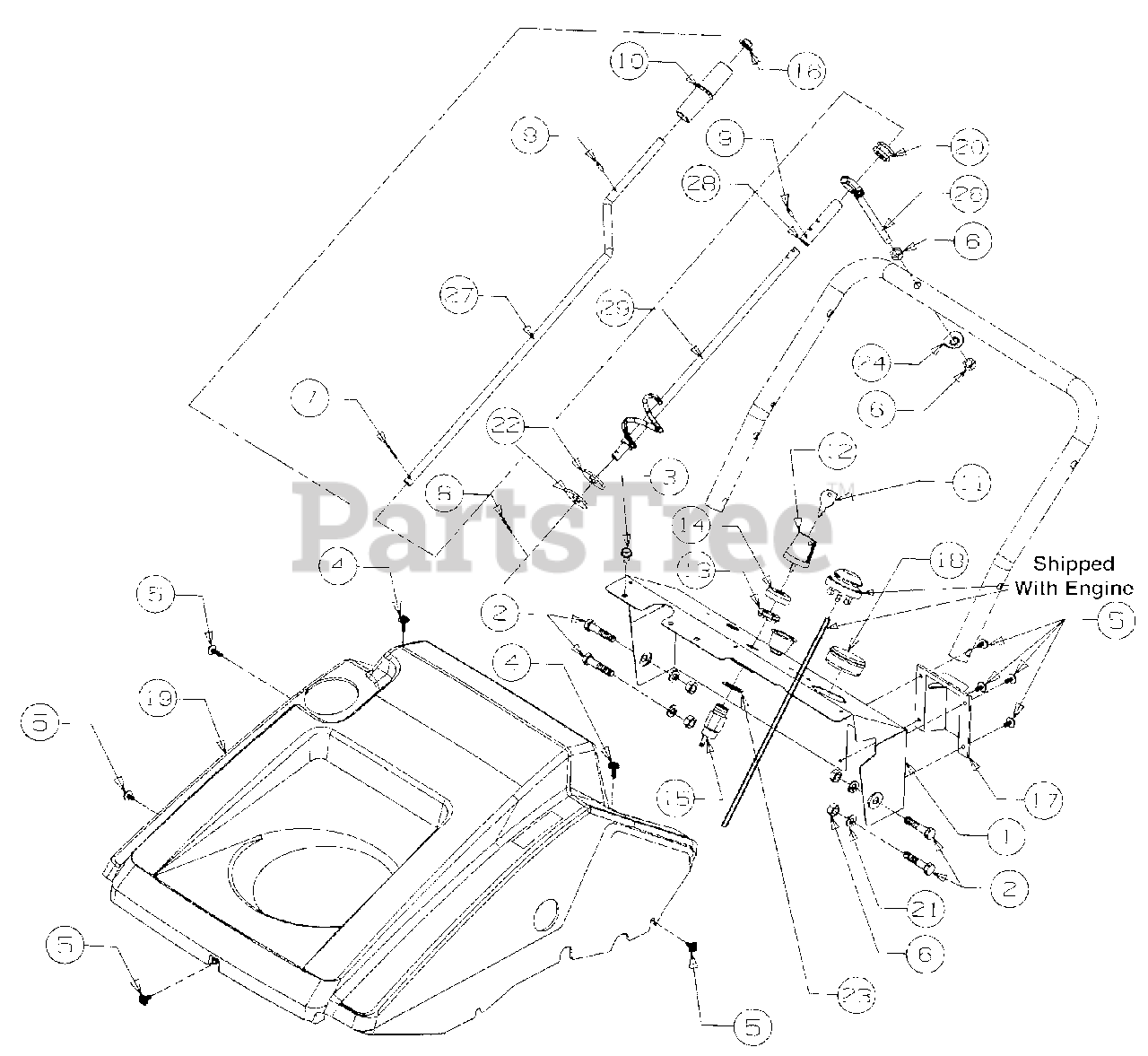

31AE152-382 - MTD Gold Snow Thrower (1998) Chute Crank Parts Diagram

Gold Snow Thrower

Chute Crank Parts Diagram

  • Title
1

Variations

MTD 784-5572-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5572-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 784-5572-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 784-5572-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5572-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 784-5572-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5572-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 784-5572-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

2

MTD 710-0442

Screw-Hex Cap
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0653

Screw-Hex Washer

$4.49

$

In Stock, Qty 8

0

4

MTD 710-1003

Screw-Hex
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

5

MTD 710-1268

Screw-Hex

$4.49

$

In Stock, only 2 left!

0

6

MTD 712-0267

Nut-Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

MTD 714-0111

Pin-Cotter

$4.99

$

In Stock, Qty 13

0

8

MTD 714-0474

Pin-Cotter

$4.99

$

In Stock, Qty 14

0

9

MTD 715-0138

Pin-Roll
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

10

$10.99

$

In Stock, Qty 5

0

11

MTD 725-0201

Key-Ignition
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

12

MTD 725-1341B

Key-Ignition with Logo

$10.99

$

In Stock, only 1 left!

0

13

MTD 725-1346

Nut-Ignition Switch
(Superseded to 925-1346)

$

$

Not available

14

MTD 725-1347

Cover-Ignition Switch

$4.99

$

In Stock, only 1 left!

0

15

MTD 725-1425

Switch-Key
(Superseded to 925-1425)

$35.99

$

In Stock, Qty 6

0

16

MTD 726-0100

Cap-Push

$4.49

$

In Stock, only 1 left!

0

17

MTD 731-1089

Cover-Choke

$

$

Not available

18

MTD 731-1133

Plug-Insert
(Superseded to 731-1133C)

$

$

Not available

19

MTD 731-1765

Shroud-Black

$

$

Not available

20

MTD 735-0234

Grommet-Rubber

$5.49

$

In Stock, only 2 left!

0

21

MTD 736-0119

Washer-Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

UNKNOWN

$

$

Not available

23

MTD 736-0225

Washer-Lock Internal

$4.49

$

In Stock, only 2 left!

0

24

MTD 736-0451

Washer-Saddle

$4.49

$

In Stock, Qty 11

0

26

MTD 747-0697

Eyebolt-Chute Crank

$8.49

$

In Stock, only 1 left!

0

27

MTD 747-0737

Crank-Chute Upper
(Superseded to 747-0737-0637)

Variations

MTD 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

28

MTD 750-0785

Spacer
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0

29

MTD 684-0126

Crank-Chute Lower
(Superseded to 684-0126-0637)

Variations

MTD 684-0126-0637

CRANK-CHUTE LOWER - POWDER BLACK (0637)

$

$

Not available

$

$
