31A807-0905-G5 - Briggs & Stratton Vertical Engine Air Cleaner, Blower Housing, Fuel Supply Parts Diagram

Vertical Engine

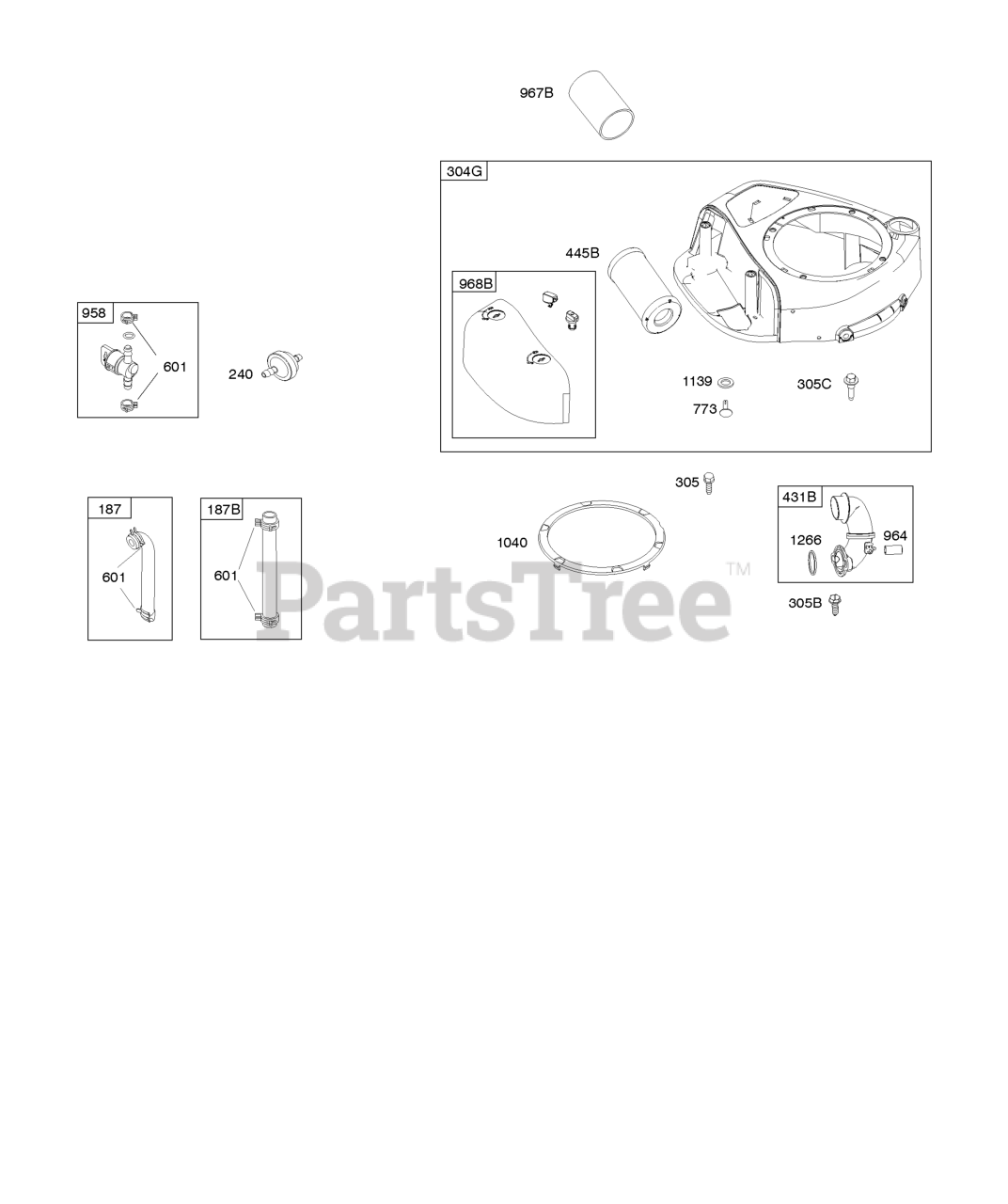

Air Cleaner, Blower Housing, Fuel Supply Parts Diagram

  • Title

187

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$24.99

$

In Stock, only 1 left!

0

187B

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 394358S

FILTER, Fuel

Note: (White, 75 Microns)

$5.99

$

In Stock, Qty 20+

0

304G

Briggs & Stratton 591642

HOUSING, Blower

Note: (Black-Compatible With Canister Style Filter)

$184.99

$

In Stock, only 1 left!

0

305

Briggs & Stratton 697102

Screw
(Superseded to 596718)

Note: (Blower Housing)

$3.99

$

In Stock, only 2 left!

0

305B

Briggs & Stratton 795891

SCREW

Note: (Blower Housing) (Blower Housing To Intake Elbow)

$3.99

$

In Stock, Qty 7

0

305C

Briggs & Stratton 799370

SCREW

Note: (Blower Housing) (Used On Grommet Style Blower Housings)

$3.99

$

In Stock, only 4 left!

0

431B

Briggs & Stratton 797901

ELBOW, Intake

$25.99

$

In Stock, Qty 13

0

445B

Briggs & Stratton 594201

FILTER, A/C Cartridge

$15.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, only 3 left!

0

958

Briggs & Stratton 698183

VALVE, Fuel Shut Off(PLT)

$8.49

$

In Stock, Qty 20+

0

964

Briggs & Stratton 799159

CAP, Connector

$8.49

$

In Stock, only 1 left!

0

967B

Briggs & Stratton 797704

FILTER, Pre Cleaner

$4.99

$

In Stock, Qty 20+

0

968B

Briggs & Stratton 591647

COVER, Air Cleaner

Note: (Black)

$52.99

$

In Stock, Qty 5

0

1040

Briggs & Stratton 698368

PLATE, Trim

$14.99

$

In Stock, only 1 left!

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.49

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0
