31A507-0124-B1 - Briggs & Stratton Vertical Engine CARBURETOR, KIT-CARBURETOR OVERHAUL Parts Diagram

Vertical Engine

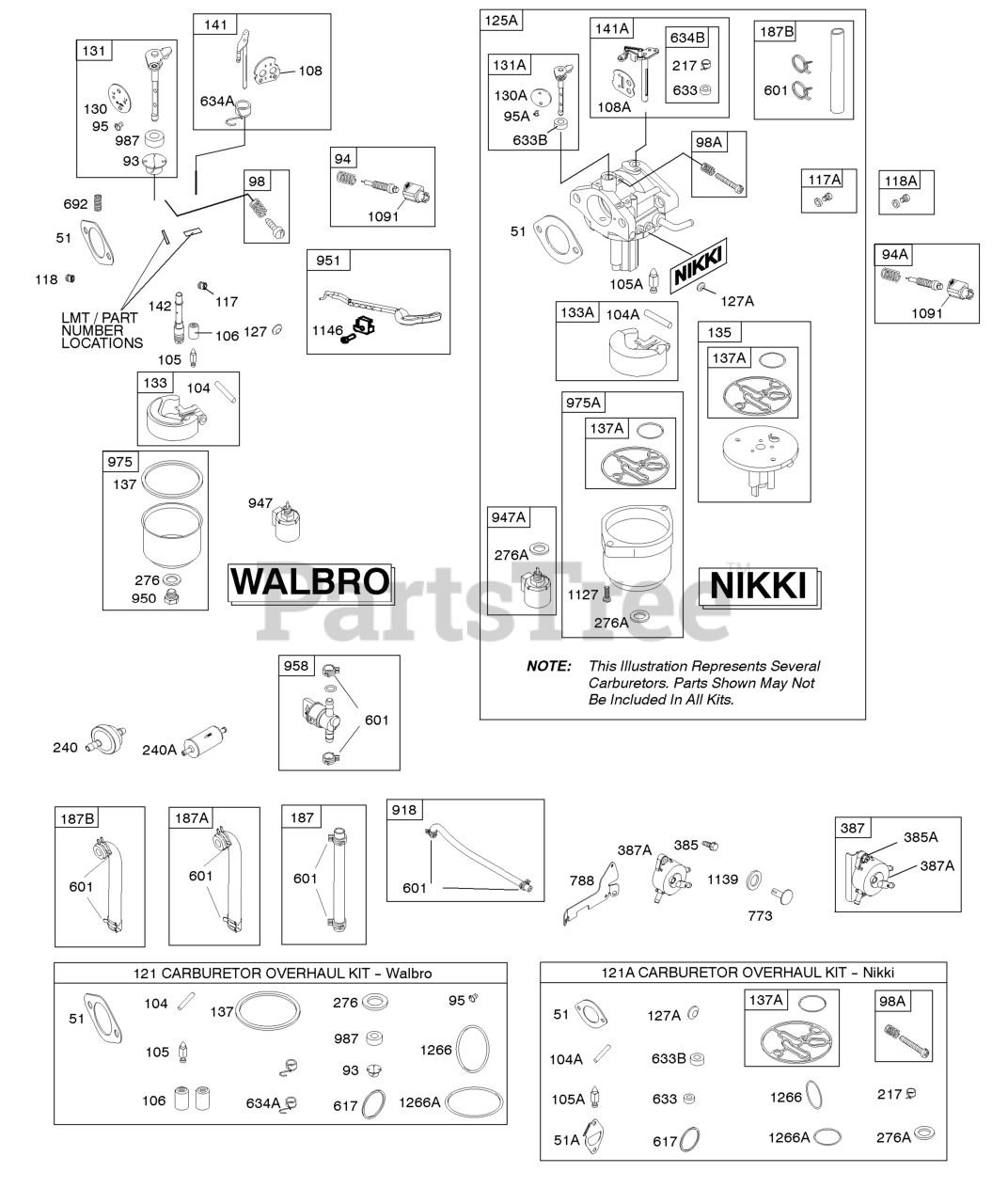

CARBURETOR, KIT-CARBURETOR OVERHAUL Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 796081

Gasket-Intake

$3.99

$

In Stock, only 4 left!

0

93

Briggs & Stratton 690602

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 794176

Kit-Idle Mixture

Note: (Walbro)

$21.99

$

Usually ships in 2-12 days

0

94A

Briggs & Stratton 793610

KIT, Idle Mixture

Note: (Nikki)

$20.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve) (Walbro)

$3.99

$

Usually ships in 2-12 days

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve) (Nikki) Used Before Code Date 15113000

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 495800

Kit-Idle Speed

Note: (Walbro)

$10.99

$

In Stock, only 1 left!

0

98A

Briggs & Stratton 695408

KIT, Idle Speed

Note: (Nikki) Used Before Code Date 15113000

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Float Hinge

Note: (Walbro)

$4.99

$

In Stock, only 1 left!

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

Note: (Nikki) Used Before Code Date 15113000

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 231855S

Valve-Float Needle

Note: (Walbro)

$6.99

$

Usually ships in 2-12 days

0

105A

Briggs & Stratton 696136

VALVE, Float Needle

Note: (Nikki) Used Before Code Date 15113000

$15.99

$

In Stock, Qty 20+

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: (Gravity Feed)

$7.99

$

In Stock, Qty 6

0

106

Briggs & Stratton 691780

Seat-Inlet

Note: (Pump Feed)

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 692344

Valve-Choke

Note: (Walbro)

$8.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 695419

Valve-Choke

Note: (Nikki) Used Before Code Date 15113000

$9.49

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 699732

Jet-Main

Note: (Standard) Used Before Code Date 08051400

$17.99

$

In Stock, Qty 7

0

117A

Briggs & Stratton 843099

Jet-Main

Note: (Standard) Used After Code Date 08051300 Used Before Code Date 15113000

$15.99

$

In Stock, only 1 left!

0

118A

Briggs & Stratton 695415

Jet-Main

Note: (High Altitude) Used After Code Date 08051300 Used Before Code Date 15113000

$17.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 699458

Jet-Main

Note: (High Altitude) Used Before Code Date 08051400

$15.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 697241

Kit-Carburetor Overhaul

Note: (Walbro Carburetor)

$43.99

$

In Stock, only 1 left!

0

121A

Briggs & Stratton 796184

KIT, Carburetor Overhaul

Note: (Nikki Carburetor) Used Before Code Date 15113000

$63.99

$

In Stock, Qty 19

0

125A

Briggs & Stratton 591731

Carburetor
(Superseded to 594593)

Note: (Nikki) Used After Code Date 08051300 Used Before Code Date 15113000

$143.99

$

In Stock, Qty 20+

0

125A

Briggs & Stratton 794572

Carburetor
(Superseded to 594593)

Note: Used Before Code Date 08051400

$143.99

$

In Stock, Qty 20+

0

127

Briggs & Stratton 695005

Plug-Welch

$4.99

$

In Stock, only 1 left!

0

127A

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 2 left!

0

130

Briggs & Stratton 691750

Valve-Throttle

Note: (Walbro)

$9.49

$

Usually ships in 2-12 days

0

130A

Briggs & Stratton 699500

Valve-Throttle

Note: (Nikki) Used Before Code Date 15113000

$11.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 790901

Kit-Throttle Shaft

Note: (Walbro)

$38.99

$

In Stock, only 1 left!

0

131A

Briggs & Stratton 699501

Kit-Throttle Shaft

Note: (Nikki) Used Before Code Date 15113000

$39.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 494381

Float-Carburetor

Note: (Walbro)

$13.99

$

In Stock, only 4 left!

0

133A

Briggs & Stratton 694914

FLOAT, Carburetor

Note: (Nikki) Used Before Code Date 15113000

$28.99

$

In Stock, Qty 8

0

135

Briggs & Stratton 792022

Tube-Fuel Transfer

Note: (Pump Feed)(Does Not Include Jet)

$49.99

$

In Stock, only 1 left!

0

135

Briggs & Stratton 698780

Tube-Fuel Transfer

Note: (Nikki)(Gravity Feed)(Does Not Include Jet)

$95.99

$

In Stock, only 3 left!

0

137

Briggs & Stratton 281165S

Gasket-Float Bowl

Note: (Walbro)

$4.99

$

Usually ships in 2-12 days

0

137A

Briggs & Stratton 698781

GASKET, Float Bowl

Note: (Nikki) Used Before Code Date 15113000

$9.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 790902

Kit-Choke Shaft

$33.99

$

In Stock, only 1 left!

0

141A

Briggs & Stratton 792777

Kit-Choke Shaft

Note: Used Before Code Date 15113000

$32.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 697140

Nozzle-Carburetor

$

$

Not available

187

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut to Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 791806

Line-Fuel

Note: (Formed)(21" Long)(Cut to Required Length)

$54.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$24.99

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 695409

SPRING, Choke Return

Note: Used Before Code Date 15113000

$8.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 394358S

FILTER, Fuel

Note: (White, 75 Microns)

$5.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: (Walbro)

$5.49

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 695410

WASHER, Sealing

Note: (Walbro) Used Before Code Date 15113000

$6.99

$

In Stock, Qty 15

0

385

Briggs & Stratton 694476

Screw

Note: (Fuel Pump)

$3.99

$

In Stock, only 1 left!

0

385A

Briggs & Stratton 690297

Screw

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 12

0

387

Briggs & Stratton 697090

Pump-Fuel

Note: (Includes Mounting Bracket) Used Before Code Date 08082500

$

$

Not available

387A

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

Note: Used After Code Date 08082400

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

601

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 16

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 16

0

633

Briggs & Stratton 699813

SEAL, Choke/Throttle Shaft

Note: (Nikki) Used Before Code Date 15113000

$6.99

$

In Stock, only 1 left!

0

633B

Briggs & Stratton 690998

SEAL, Choke/Throttle Shaft

Note: (Nikki) Used Before Code Date 15113000

$7.99

$

In Stock, only 2 left!

0

634A

Briggs & Stratton 690802

Spring/Seal Assembly

Note: (Walbro)

$9.49

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 698779

Spring/Seal Assembly

Note: (Nikki)

$8.99

$

In Stock, only 1 left!

0

692

Briggs & Stratton 590931

Spring-Detent

$5.49

$

In Stock, Qty 11

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, only 3 left!

0

788

Briggs & Stratton 699347

Bracket-Fuel Pump

$24.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 791851

Hose-Vacuum

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$14.99

$

In Stock, only 1 left!

0

947

Briggs & Stratton 694393

Solenoid-Fuel

Note: (Walbro)

$81.99

$

In Stock, only 1 left!

0

947A

Briggs & Stratton 699915

Solenoid-Fuel
(Superseded to 596038)

Note: (Nikki) Used Before Code Date 15113000

$79.99

$

In Stock, Qty 18

0

950

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Bottom Of Bowl)

$4.49

$

In Stock, Qty 20+

0

951

Briggs & Stratton 793386

KIT, Choke Shaft

$13.99

$

In Stock, only 1 left!

0

958

Briggs & Stratton 698183

VALVE, Fuel Shut Off(PLT)

$8.49

$

In Stock, Qty 20+

0

975

Briggs & Stratton 495933

Bowl-Float

Note: (Walbro)

$

$

Not available

975A

Briggs & Stratton 699502

BOWL, Float

Note: (Nikki) Used Before Code Date 15113000

$45.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691326

Seal-Throttle Shaft

$5.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl to Carburetor Body)

$4.49

$

In Stock, Qty 20+

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.49

$

Usually ships in 2-12 days

0

1146

Briggs & Stratton 793380

SCREW

Note: (Choke Shaft)

$3.99

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, Qty 19
