31A-63BD706 - MTD Snow Thrower (2016) Chute Adapter Parts Diagram

Snow Thrower

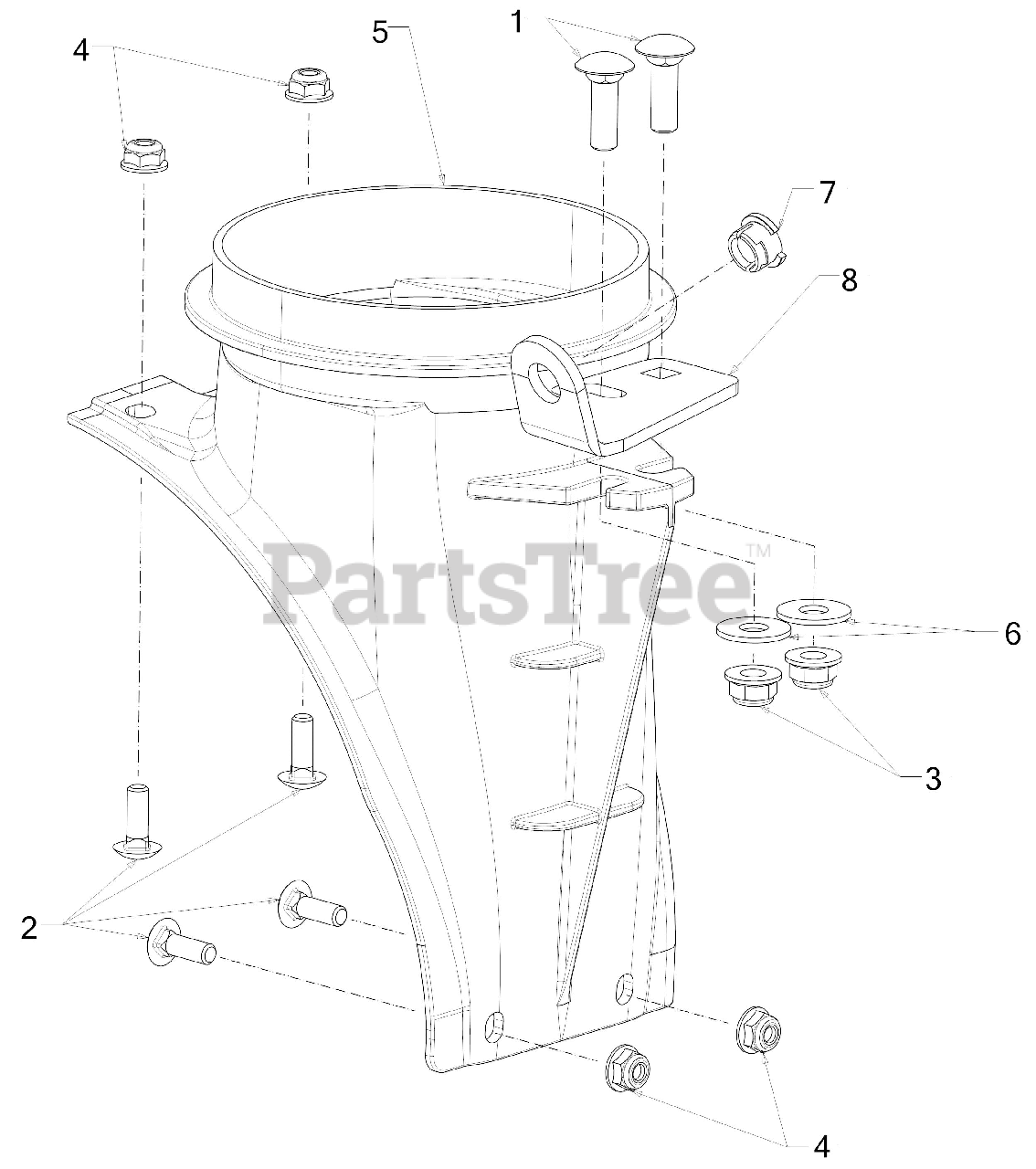

Chute Adapter Parts Diagram

  • Title
1

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 11

0

2

MTD 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 15

0

3

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

5

MTD 731-04705D

CHUTE ADAPTER

$26.99

$

In Stock, only 2 left!

0

6

MTD 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available

7

MTD 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

8

MTD 784-5647-0637

CHUTE CRANK BRACKET

$14.99

$

In Stock, Qty 5

0
