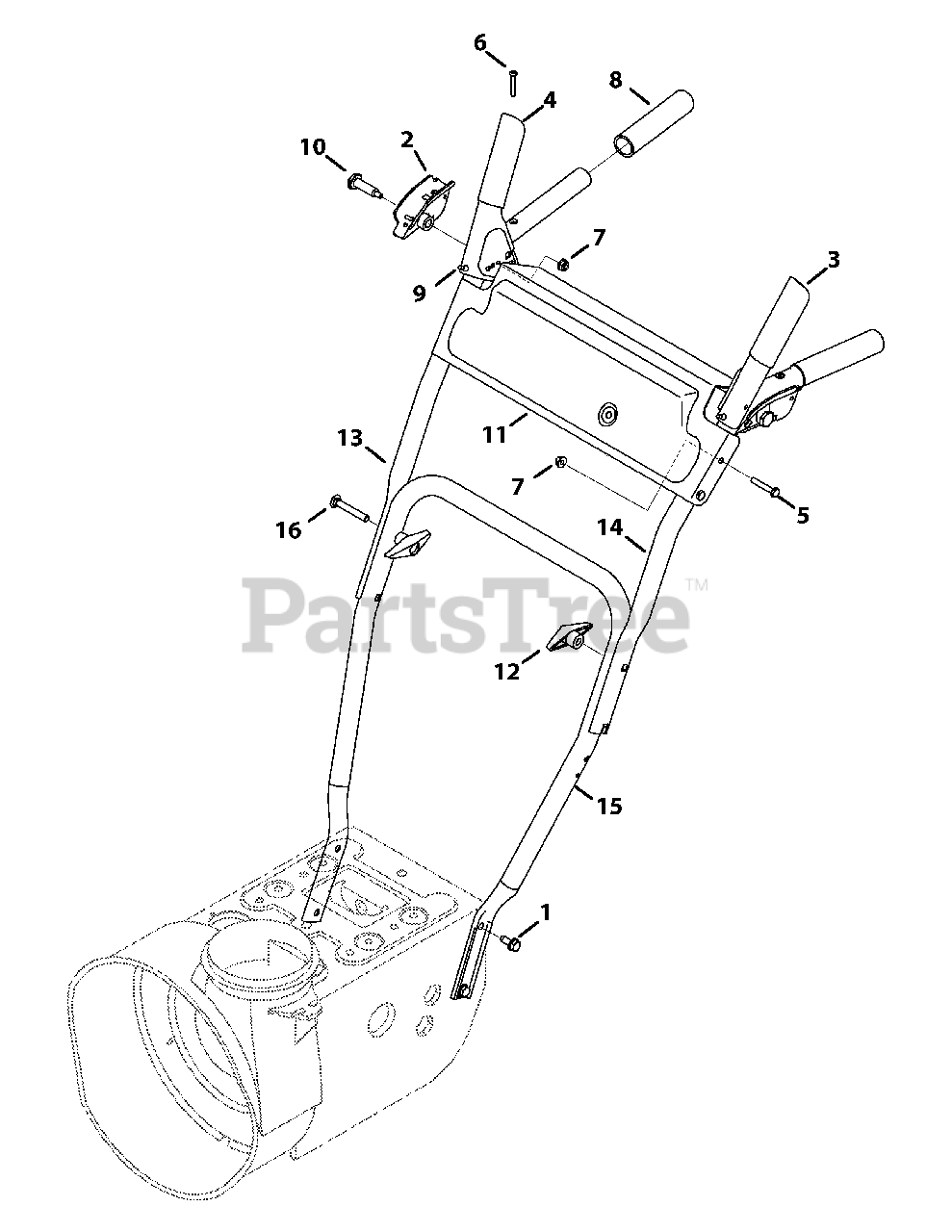

31A-63BD700 - Yard Machines Snow Thrower (2012) Handle Panel Style B Parts Diagram

Snow Thrower

Handle Panel Style B Parts Diagram

  • Title

1

MTD 710-04484

Taptite Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 631-04133A

Clutch Lock Handle Assembly, LH

$15.99

$

In Stock, Qty 7

0

2

MTD 631-04134B

Clutch Lock Handle Assembly, RH

$15.99

$

Usually ships in 3-6 days

0

3

MTD 684-04105B

Engagement Assembly, LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 3 left!

0

4

MTD 684-04106C

Engagement Assembly, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 2 left!

0

5

MTD 710-0606

Hex Head Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

6

MTD 710-1233

Machine Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

7

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

MTD 720-0274

Grip, 1.0 ID x 5.0 LG

$11.99

$

In Stock, Qty 8

0

9

MTD 935-0199A

Rubber Bumper, .62 OD x .22 Thick
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

10

MTD 738-04348

Shoulder Screw, .437 x 1.345 x 1/4-20

$3.99

$

In Stock, Qty 20+

0

11

MTD 790-00100-0638

Handle Panel

$55.99

$

Usually ships in 3-6 days

0

12

MTD 920-0284

Wing Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

13

MTD 749-04190A-0637

Upper RH Handle

$45.99

$

Usually ships in 3-6 days

0

14

MTD 749-04191A-0637

Upper LH Handle

$45.99

$

Usually ships in 3-6 days

0

15

MTD 749-04138A-0637

Lower Handle
(Superseded to 749-04138C-0637)

$88.99

$

Usually ships in 3-6 days

0

16

MTD 710-0572

Carriage Screw, 5/16-18 x 2.25

$4.49

$

In Stock, Qty 20+

0
