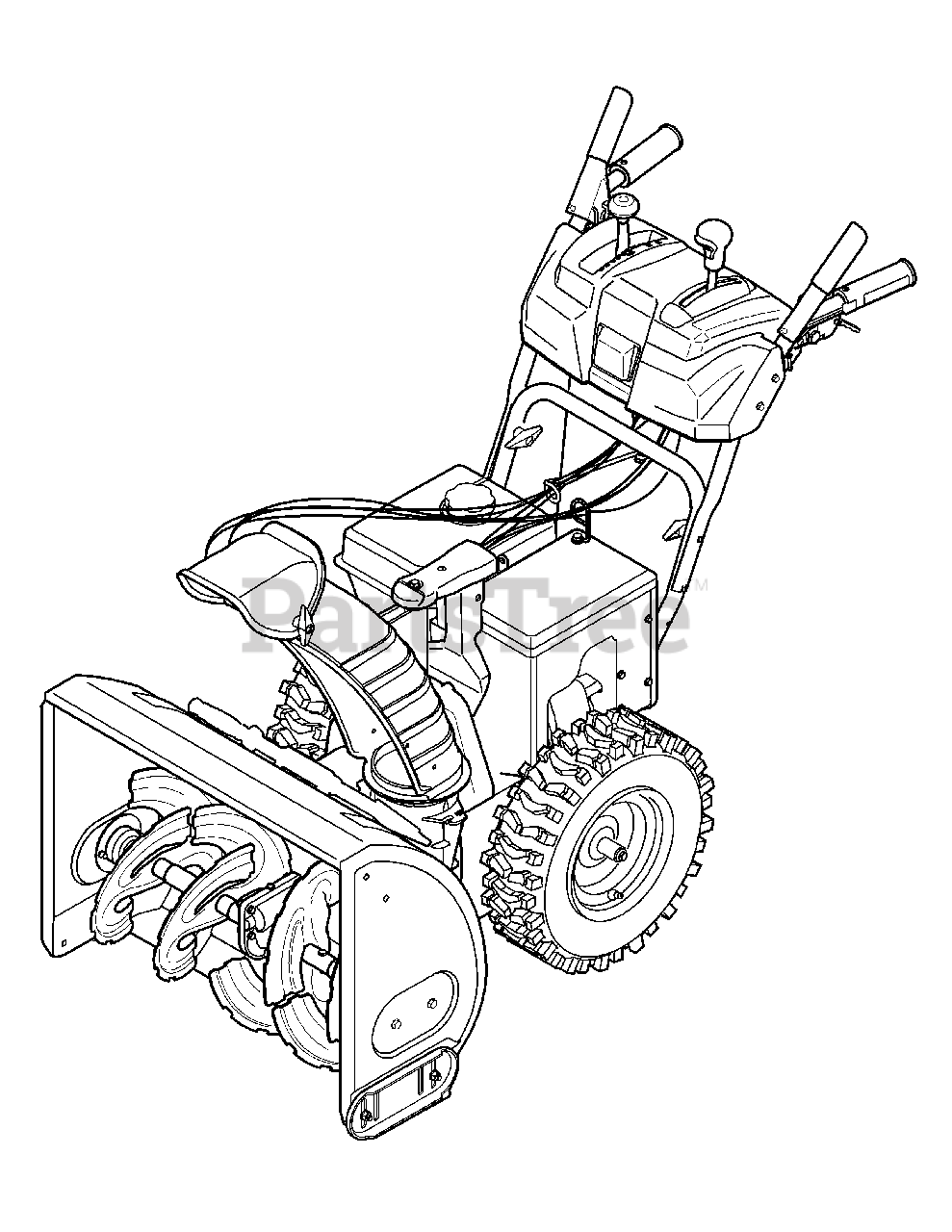

31A-62EE729 - Yard Machines Snow Thrower (2008) (Home Depot) .Quick Reference Parts Diagram

Snow Thrower

.Quick Reference Parts Diagram

  • Title

MTD TC-34645

Spark Plug - Tecumseh
(Superseded to RN4C)

$4.49

$

In Stock, Qty 18

0

MTD 751-10292

Spark Plug - MTD SU & SUA
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 759-3336

Spark Plug - B&S
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

MTD TC-35062

Key - Tecumseh

$3.99

$

Usually ships in 3-12 days

0

MTD 751-10630

Key - MTD SU & SUA
(Superseded to 951-10630)

$6.99

$

Usually ships in 3-6 days

0

MTD BS-695756

Key - B&S
(Superseded to BS-794696)

$7.49

$

In Stock, Qty 19

0

MTD 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

MTD 731-2643

Snow Removal Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 16

0

MTD 746-04229

Drive Cable
(Superseded to 946-04229B)

$21.99

$

In Stock, Qty 20+

0

MTD 746-04230

Auger Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

MTD 746-04397

Speed Cable
(Superseded to 946-04397A)

Note: E & F-Style Panel

$20.99

$

In Stock, Qty 14

0

MTD 746-04396

Speed Cable
(Superseded to 946-04396A)

Note: K-Style Panel

$20.99

$

In Stock, Qty 20+

0

N/A

Wheel Cable

$

$

Not available

MTD 684-04107-0637

Auger Assembly - LH
(Superseded to 684-04107A-0637)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04108-0637

Auger Assembly - RH
(Superseded to 684-04108A-0637)

$94.99

$

In Stock, Qty 10

0

MTD 790-00120-0637

Shave Plate - 24''

$34.99

$

In Stock, Qty 20+

0

MTD 790-00121-0637

Shave Plate - 26''

$36.99

$

In Stock, Qty 20+

0

MTD 790-00118-0637

Shave Plate - 28''

$37.99

$

In Stock, Qty 20+

0

MTD 790-00119-0637

Shave Plate - 30''

$39.99

$

In Stock, Qty 20+

0

MTD 684-04057A-0637

Impeller Assembly
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 20+

0

MTD 784-5580-0637

Slide Shoe

$23.99

$

In Stock, Qty 20+

0

MTD 731-06439

Slide Shoe - Polymer

$21.99

$

In Stock, Qty 19

0

MTD 753-06206

Standard Polymer Reversible Shoe Kit

Note: (Will replace 731-06439, includes hardware & 2 shoes)

$54.99

$

In Stock, Qty 8

0

MTD 731-05984A

Slide Shoe - Deluxe Polymer

$30.99

$

In Stock, Qty 16

0

MTD 753-06205

Deluxe Polymer Reversible Shoe Kit

Note: (Will replace 731-05984A, includes hardware & 2 shoes)

$45.99

$

In Stock, Qty 5

0

MTD 790-00091-0637

Slide Shoe - Deluxe

$30.99

$

In Stock, Qty 20+

0

MTD 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

MTD 725-1658

Lamp - Halogen
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

MTD 725-04213

Lamp
(Superseded to 925-04213)

$4.99

$

In Stock, Qty 11

0

MTD 754-04050

Auger Belt
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

MTD 754-0367

Wheel Belt
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

N/A

Spiral Cresent

$

$

Not available

N/A

Rubber Paddle

$

$

Not available

MTD 684-04153

Friction Wheel
(Superseded to 684-04153C)

$101.99

$

In Stock, Qty 20+

0

MTD 656-04025A

Friction Wheel Rubber
(Superseded to 656-04055A)

$59.99

$

In Stock, Qty 20+

0

MTD 634-04146-0911

Wheel - LH - X-Trac

$267.99

$

Usually ships in 3-6 days

0

MTD 634-04145-0911

Wheel - RH - X-Trac

$268.99

$

Usually ships in 3-6 days

0

MTD 634-04141-0911

Snow Hog Wheel - 16 x 4.8

$243.99

$

Usually ships in 3-6 days

0

MTD 634-04142A-0911

Snow Hog Wheel - 15 x 5

$201.99

$

Usually ships in 3-6 days

0

MTD 634-04144A-0911

Snow Hog Wheel - 13 x 4

$191.99

$

Usually ships in 3-6 days

0

MTD 490-241-0009

Light Kit, Universal

Note: For electric start MTD 179cc or 208cc engine with dual alternator.

$

$

Not available
