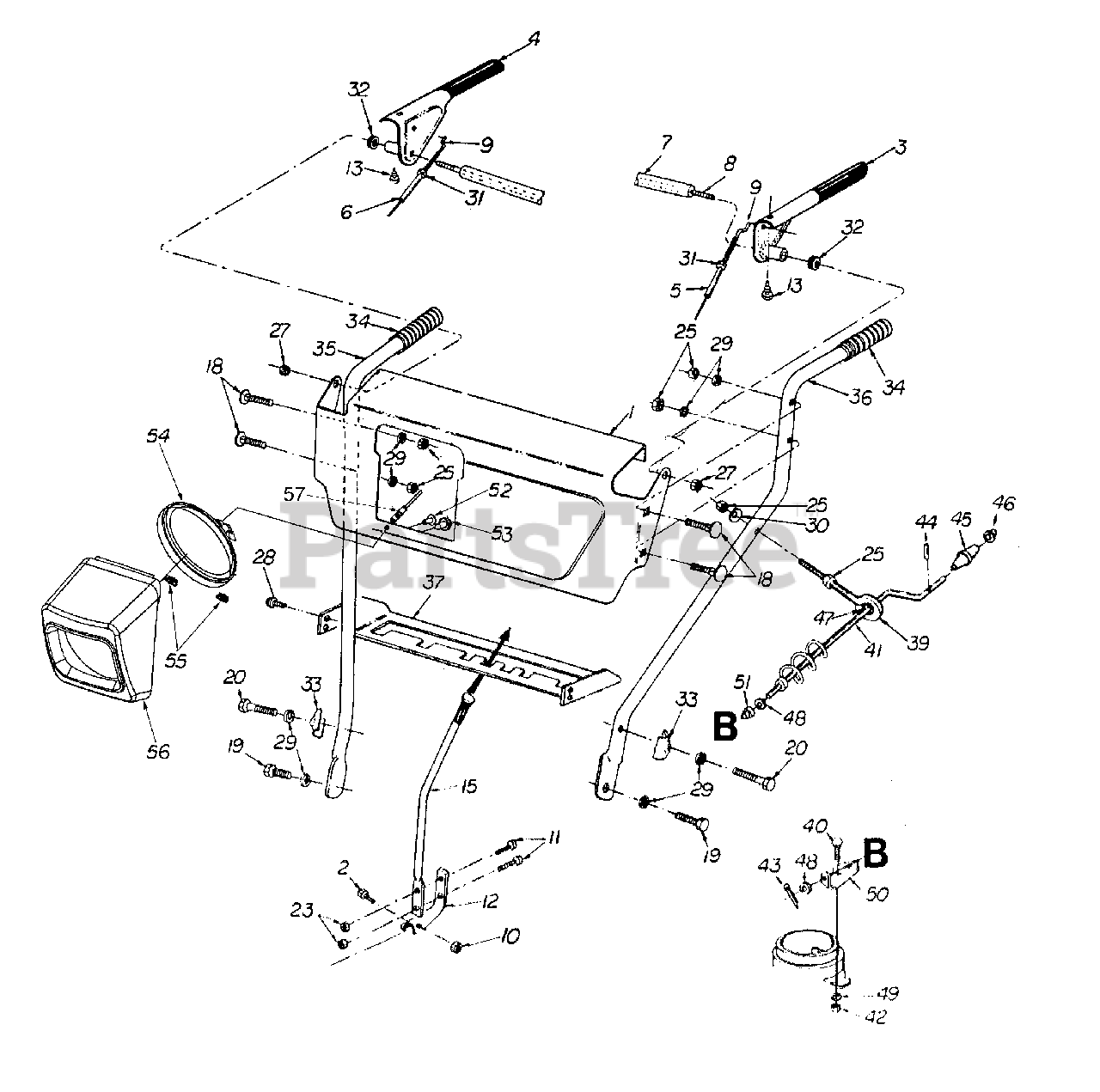

31A-615D118 - Yard Machines Snow Thrower (1998) (Sam's Club) Handle Assembly Parts Diagram

Snow Thrower

Handle Assembly Parts Diagram

  • Title

?1

MTD 784-5717

Control Panel Ass'y (615)

Variations

MTD 784-5717-0638

PANEL HANDLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5717-0689

PANEL HANDLE ASM - POLO GREEN (0689)

$

$

Not available

MTD 784-5717-0691

PANEL HANDLE ASM - BLACK JACK (0691)

$

$

Not available

$

$

MTD 784-5718

Control Panel Ass'y (E645, E665)
(Superseded to 784-5718A)

Variations

MTD 784-5718-0483

No Longer Available PANEL HAND - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5718-0638

No Longer Available PANEL HAND - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5718-0691

HANDLE-PANEL 5-STY - BLACK JACK (0691)

$

$

Not available

$73.99

$

Usually ships in 3-6 days

0

2

MTD 710-0788

Hex Bolt 1/4-20 x 1.00

$7.49

$

In Stock, only 2 left!

0

3

MTD 705-5233

Clutch Lever LH
(Superseded to 705-5233A)

$

$

Not available

4

MTD 705-5234

Clutch Lever RH
(Superseded to 705-5234A)

$46.99

$

Usually ships in 3-6 days

0

5

MTD 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

6

MTD 746-0898

Drive Clutch Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 19

0

7

MTD 731-1500

Pivot Rod Cover Tube

$

$

Not available

8

MTD 747-0984

Clutch Lever Pivot Rod

$

$

Not available

9

MTD 746-0778

"Z" Fitting
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

10

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

11

MTD 710-0851

Hex Scr. 1/4-20 x .75

$

$

Currently unavailable

12

MTD 732-0733

Shift Lever Spring

$19.99

$

In Stock, only 3 left!

0

13

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 1 left!

0

15

MTD 847-0904

Shift Handle (w/grip)

$

$

Currently unavailable

18

MTD 710-0262

Carriage Bolt 5/16-18 x 1.50

$3.99

$

In Stock, Qty 9

0

19

MTD 710-3008

Hex Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-3180

Hex Bolt 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

23

MTD 712-0324

Hex Ins. L-Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

25

MTD 712-0267

Hex Cent. L-Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

MTD 712-0429

Hex Ins. L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0599

Hex Wash Hd B-Tapp Scr. 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0199

L-Wash 5/16 ID

$

$

Currently unavailable

30

MTD 736-0242

Bell. Washer .345 ID x .88 OD x .06

$4.49

$

In Stock, Qty 20+

0

31

MTD 712-0121

Hex Nut 10-24

$4.49

$

In Stock, Qty 20+

0

32

MTD 750-1032

Spacer

$4.99

$

Usually ships in 3-6 days

0

33

MTD 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 18

0

34

MTD 720-0274

Grip

$11.99

$

In Stock, Qty 8

0

35

MTD 749-0910A

Handle RH Black
(Superseded to 749-0910C-0637)

Variations

MTD 749-0910A-0637

HANDLE-RH - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 749-0911A

Handle LH Black

Variations

MTD 749-0911A-0637

No Longer Available HANDLE-LH - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 705-5265

Speed Selector Plate (1 Rev)

Variations

MTD 705-5265-0638

No Longer Available PANEL-5 SP - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 705-5265-0691

No Longer Available PANEL-5 SP - BLACK JACK (0691)

$

$

Not available

MTD 705-5265-0687

No Longer Available PANEL-5 SP - PINE GREEN (0687)

$

$

Not available

$

$

MTD 705-5231

Speed Selector Plate (2 Rev)

Variations

MTD 705-5231-0637

Select Panel, 5-Speed Black - POWDER BLACK (0637)

$

$

Not available

MTD 705-5231-0638

Select Panel, 5-Speed Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 705-5231-0687

Select Panel, 5-Speed Black - PINE GREEN (0687)

$

$

Not available

MTD 705-5231-0689

Select Panel, 5-Speed Black - POLO GREEN (0689)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

39

MTD 747-0697

Eyebolt Chute Crank

$8.49

$

In Stock, only 1 left!

0

40

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

41

MTD 705-5204A

Chute Crank Ass'y
(Superseded to 984-0022)

$99.99

$

In Stock, only 2 left!

0

42

MTD 712-0158

Hex Center L-Nut 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

43

MTD 714-0104

Int. Cotter Pin 5/16 Dia.

$4.49

$

In Stock, Qty 20+

0

44

MTD 715-0138

Roll Pin .125 Dia. x .62
(Superseded to 915-0138)

$4.99

$

Usually ships in 3-6 days

0

45

MTD 720-0201A

Knob-Chute Crank

$10.99

$

In Stock, only 4 left!

0

46

MTD 726-0102

Cap Speed Nut 3/8
(Superseded to 926-0100)

$

$

Not available

47

MTD 735-0234

Grommet

$5.49

$

In Stock, only 2 left!

0

48

MTD 736-0140

Flat Washer .385 ID x .62 OD

$7.49

$

In Stock, Qty 6

0

49

MTD 736-0159

Flat Washer .344 ID x .875 OD

$4.49

$

In Stock, Qty 20+

0

50

MTD 784-5647

Chute Crank Bracket
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

51

MTD 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

52

MTD 710-0779A

Truss Machine Tapp Scr.

Note: Models E645 and E665 Only

$4.49

$

In Stock, Qty 12

0

53

MTD 710-0896

Scr:AB:1/4-14:.625: Hxindwsh

Note: Models E645 and E665 Only

$4.49

$

In Stock, Qty 20+

0

54

MTD 725-1300

Headlight 18 Watts
(Superseded to 925-1300)

Note: Models E645 and E665 Only

$

$

Not available

55

MTD 712-0415

Hex Nut .250

Note: Models E645 and E665 Only

$5.49

$

In Stock, only 3 left!

0

56

MTD 731-1317

Headlight Bezel #8

Note: Models E645 and E665 Only

$

$

Not available

57

MTD 629-0058

Harness (Round Light)
(Superseded to 929-0058B)

Note: Models E645 and E665 Only

$

$

Not available
