31A-615D118 - Yard Machines Snow Thrower (1998) (Sam's Club) Gear Assembly Parts Diagram

Snow Thrower

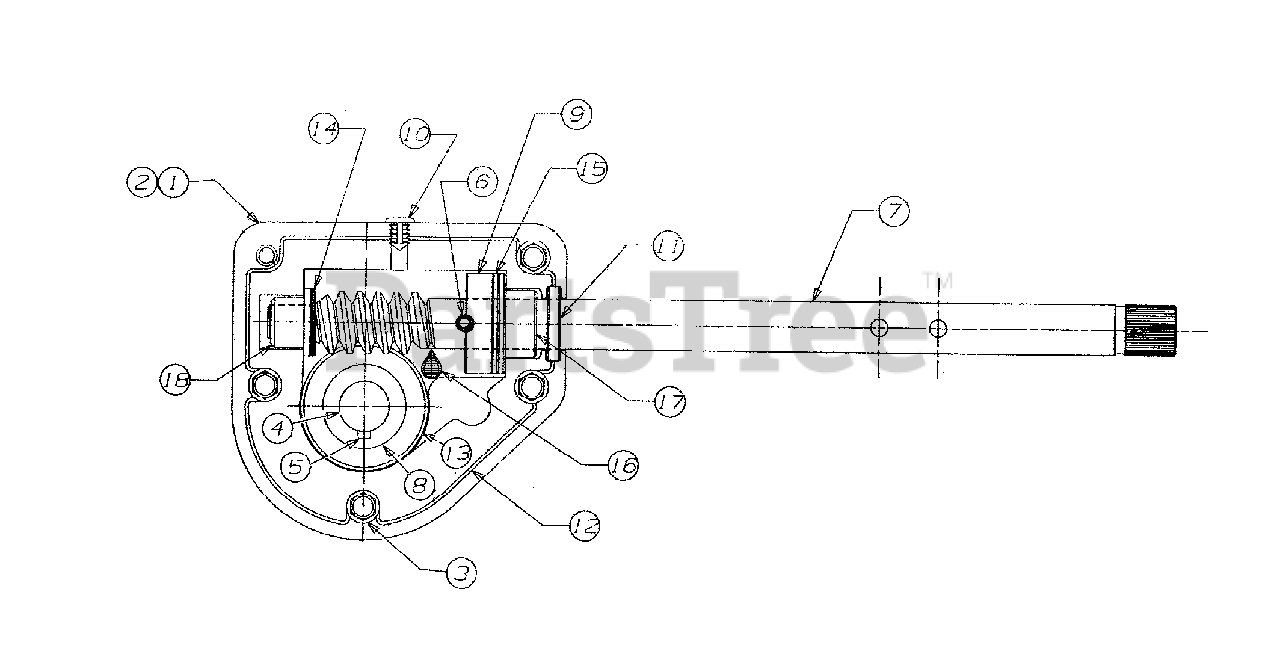

Gear Assembly Parts Diagram

  • Title
1

MTD 618-0123

Housing - L.H.
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 18

0

2

MTD 618-0124

Housing - R.H.
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 15

0

3

MTD 710-0642

Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-1020

Spiral Axle 22"
(Superseded to 711-1020A)

$

$

Not available

MTD 711-0908

Spiral Axle 24"
(Superseded to 711-0908A)

$

$

Not available

5

MTD 714-0161

Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

6

MTD 715-0143

Pin - Spiral

$4.99

$

In Stock, Qty 15

0

7

MTD 717-0526

Shaft - Worm
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 5

0

8

MTD 717-0528

Gear - Worm
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

9

MTD 718-0186

Collar - Thrust

$8.49

$

In Stock, Qty 12

0

10

$4.49

$

In Stock, Qty 20+

0

11

MTD 721-0327

Seal - Oil

$6.99

$

In Stock, Qty 20+

0

12

MTD 721-0328

Locktite 5699

$

$

Currently unavailable

13

MTD 736-0351

Washer - Flat

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0369

Washer - Flat

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0445

Washer - Flat

$4.49

$

In Stock, Qty 11

0

16

MTD 737-0168

Grease
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 14

0

17

MTD 741-0376

Bearing - Flange
(Superseded to 941-0376)

$8.99

$

In Stock, Qty 6

0

18

MTD 748-0108

Bearing - Flange
(Superseded to 948-0108)

$8.99

$

In Stock, Qty 20+

0

MTD 618-0152

Ass'y. Complete 22"
(Superseded to 918-0413B)

$

$

Not available

MTD 618-0120

Ass'y. Complete 24"
(Superseded to 918-0414B)

$

$

Not available
