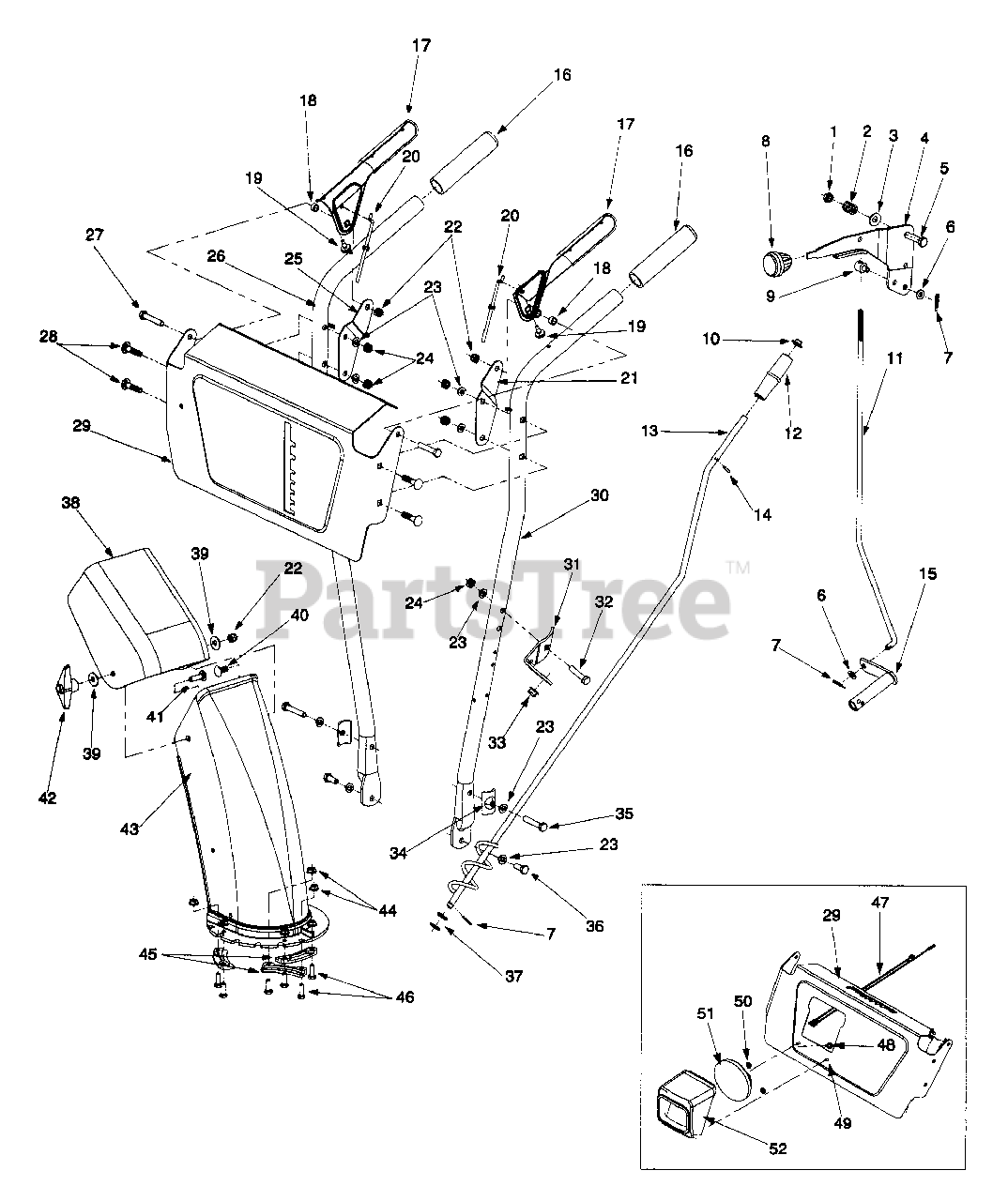

31A-614E149 - Yard Machines Snow Thrower (1999) (Mills Fleet Farm) Handle Assembly Parts Diagram

Snow Thrower

Handle Assembly Parts Diagram

  • Title

1

MTD 712-0116

Jam Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

2

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

3

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

4

MTD 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

MTD 784-5619A-0637

KIT-SHIFT HANDLE:S - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 710-0459A

Hex Cap Screw 3/8-24

$6.99

$

In Stock, Qty 8

0

6

MTD 736-0264

Flat Washer

$6.99

$

In Stock, only 1 left!

0

7

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

8

MTD 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

9

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

10

MTD 726-0100

Push Cap

$4.49

$

In Stock, only 1 left!

0

11

MTD 747-0921

Shift Rod

$

$

Not available

12

MTD 720-0201A

Chute Knob

$10.99

$

In Stock, Qty 5

0

13

MTD 747-0819

Crank Chute
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

14

MTD 715-0138

Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

15

MTD 684-0008A

Shift Arm Assy
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

16

MTD 720-0274

Grip

$11.99

$

In Stock, Qty 11

0

17

MTD 705-5233

Clutch Lever Assy LH
(Superseded to 705-5233A)

$

$

Not available

MTD 705-5234

Clutch Lever Assy RH
(Superseded to 705-5234A)

$46.99

$

Usually ships in 3-6 days

0

18

MTD 750-1032

Spacer

$4.99

$

Usually ships in 3-6 days

0

19

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

20

MTD 746-0778

"Z" Fittings For Control Cables
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

21

MTD 705-5275

Lever Bracket LH

Variations

MTD 705-5275-0637

No Longer Available BRACKET-LH PNL SUP - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 712-0429

Lock Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

25

MTD 705-5274

Lever Bracket RH
(Superseded to 705-5274-0637)

Variations

MTD 705-5274-0637

No Longer Available BRACKET-RH PNL SUP - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 749-0910A

Handle RH
(Superseded to 749-0910C-0637)

Variations

MTD 749-0910A-0637

HANDLE-RH - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 710-3180

Hex Cap Screw 5/16-18 x 1.75

$5.49

$

In Stock, Qty 12

0

28

MTD 710-0262

Carriage Bolt 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

29

MTD 684-0105

Control Panel Assy - 2 Style

Variations

MTD 684-0105-0638

PANEL CONTROL ASM.W - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0105-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

$154.99

$

Usually ships in 3-6 days

0

MTD 684-0106

Control Panel Assy - 4 Style

Variations

MTD 684-0106-0691

PANEL HNDL ASM 4ST - BLACK JACK (0691)

$

$

Not available

MTD 684-0106-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0106-0638

No Longer Available PANEL HAND - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0106-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$129.99

$

Usually ships in 3-6 days

0

30

MTD 749-0911A

Handle LH

Variations

MTD 749-0911A-0637

No Longer Available HANDLE-LH - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 784-5678

Chute Crank Bracket

Variations

MTD 784-5678-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 710-0805

Hex Cap Screw 5/16/18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

33

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

34

MTD 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-3103

Hex Cap Screw 5/16-18 x 2.0

$4.49

$

In Stock, Qty 20+

0

36

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0185

Flat Washer

$3.99

$

In Stock, Qty 20+

0

38

MTD 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 3 left!

0

39

MTD 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

41

MTD 710-0276

Carriage Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 11

0

42

MTD 720-0284

Knob

$6.99

$

In Stock, Qty 20+

0

43

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

44

MTD 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

45

MTD 731-0851A

Flange Keeper

$4.49

$

In Stock, Qty 20+

0

46

MTD 710-3015

Hex Cap Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

47

MTD 629-0058

Round Light Harness
(Superseded to 929-0058B)

$

$

Not available

48

MTD 710-1652

Hex Tap Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

49

MTD 710-1003

Hex Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

50

MTD 712-0415

Hex Nut

$5.49

$

In Stock, only 3 left!

0

51

MTD 725-1300

Headlight 18 Watts
(Superseded to 925-1300)

$

$

Not available

52

MTD 731-1317

Headlight Cover

$

$

Not available
