31A-611D352 - Yard Machines Snow Thrower (1998) (Walmart) Belt Drive Parts Diagram

Snow Thrower

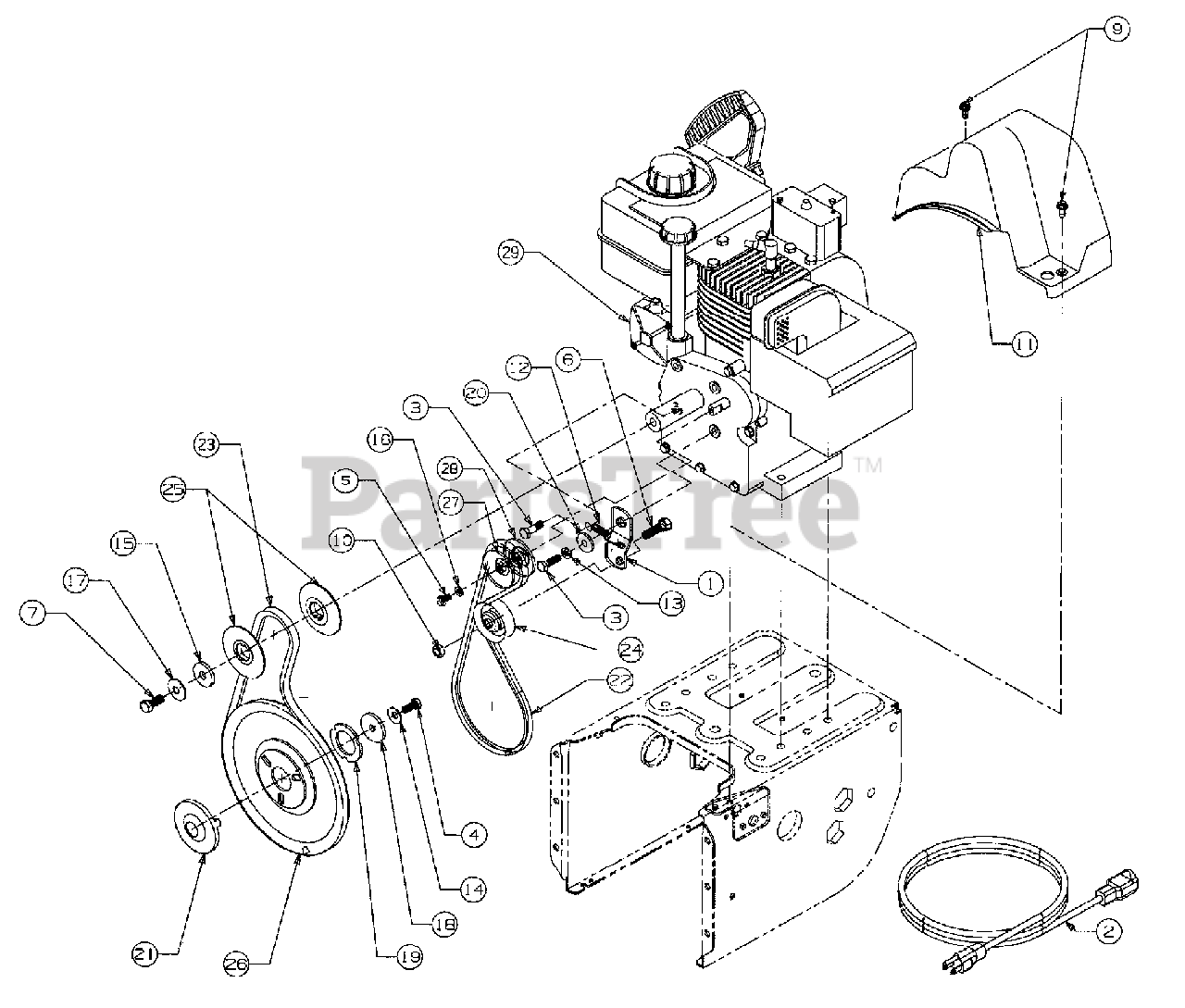

Belt Drive Parts Diagram

  • Title
1

MTD 05896A

Bracket-Idler

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 629-0071

Cord-Extension 110V
(Superseded to 929-0071B)

Note: For Electric Start Option

$21.99

$

In Stock, only 1 left!

0

3

MTD 710-0627

Screw-Hex

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1245

Screw-Hex

$8.49

$

In Stock, only 2 left!

0

5

MTD 710-0230

Screw-Hex

$

$

Not available

6

MTD 710-0342

Screw-Hex
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 11

0

7

MTD 710-0696

Screw-Hex

$6.99

$

In Stock, only 2 left!

0

9

MTD 710-0896

Screw-Hex

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0181

Nut-Hex

$4.49

$

In Stock, only 3 left!

0

11

MTD 731-1324

Cover-Belt

$21.99

$

In Stock, only 1 left!

0

12

MTD 732-0339

Spring
(Superseded to 932-0339)

$

$

Not available

13

MTD 736-0119

Washer-Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0247

Washer-Flat

$9.49

$

In Stock, Qty 15

0

16

MTD 736-0329

Washer-Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

MTD 736-0331

Washer-Lock

$3.99

$

In Stock, Qty 11

0

18

MTD 736-0505

Washer-Flat

$6.49

$

In Stock, only 2 left!

0

19

MTD 736-0507

Washer
(Superseded to 936-0507)

$6.99

$

Usually ships in 3-6 days

0

20

MTD 748-0234

Spacer

$4.49

$

Usually ships in 3-6 days

0

21

MTD 748-0360

Adapter-Pulley
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

22

MTD 754-0343

V-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 4 left!

0

23

MTD 754-0430

V-Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

24

MTD 756-0313

Idler-Flat

$26.99

$

In Stock, Qty 6

0

25

MTD 756-0569

Pulley-Half

$10.99

$

Usually ships in 3-6 days

0

26

MTD 756-0967

Pulley

$56.99

$

Usually ships in 3-6 days

0

27

MTD 756-0984

Pulley-Half

$

$

Not available

28

MTD 756-0985

Pulley-Half

$

$

Not available

29

MTD 390-986

Electric Start Kit
(Superseded to TC-33290H)

Note: Optional Kit

$377.99

$

Usually ships in 3-6 days

0
