31A-611D205 - Yard Machines Snow Thrower (2002) (Mid States Distributor) Gear Assembly Parts Diagram

Snow Thrower

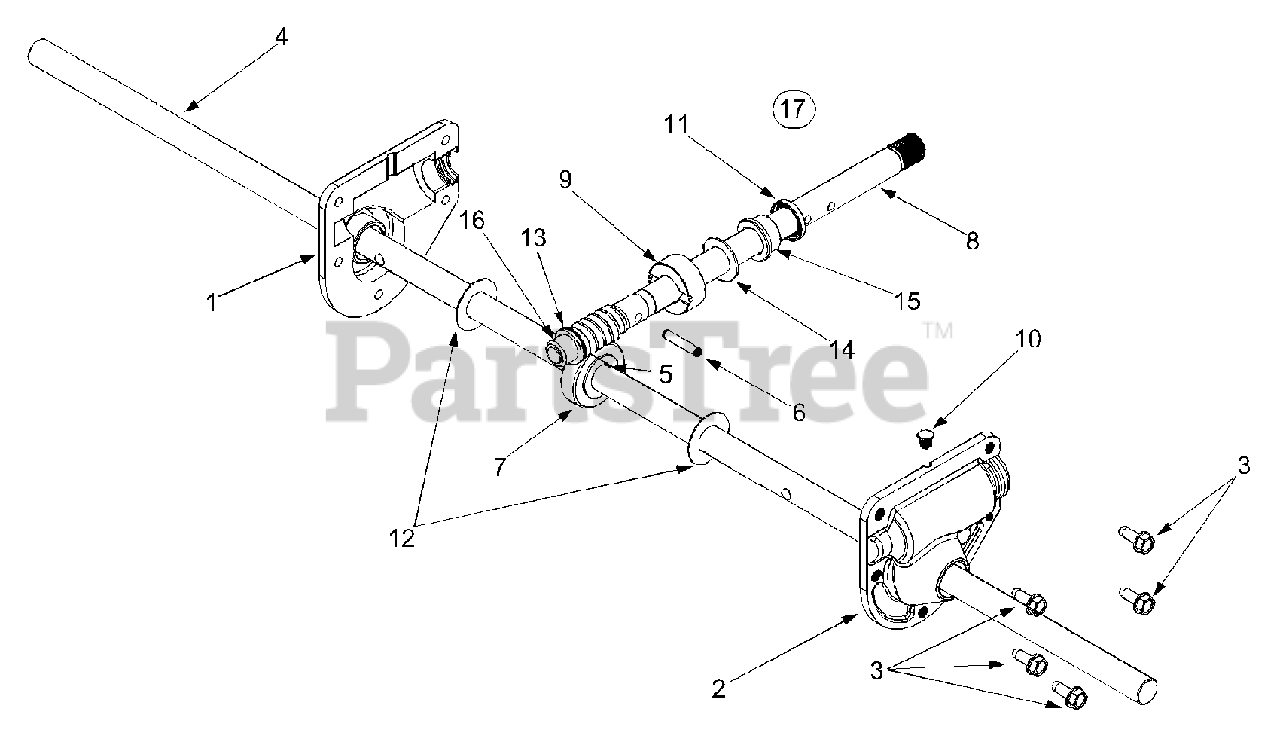

Gear Assembly Parts Diagram

  • Title
1

MTD 618-0123

Housing-R.H.
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 20+

0

MTD 618-0124

Housing-L.H.
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 17

0

2

MTD 710-0642

Hex Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

3

MTD 711-1020A

Spiral Axle 22"

$

$

Not available

MTD 711-0908

Spiral Axle 24"
(Superseded to 711-0908A)

$

$

Not available

4

MTD 714-0161

Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

5

MTD 715-0143

Pin-Spiral

$4.99

$

In Stock, Qty 15

0

6

MTD 717-0526

Shaft-Worm
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 5

0

7

MTD 717-0528

Gear-Worm
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

8

MTD 718-0186

Collar-Thrust

$8.49

$

In Stock, Qty 12

0

9

$4.49

$

In Stock, Qty 20+

0

10

MTD 721-0327

Seal-Oil

$6.99

$

In Stock, Qty 20+

0

11

MTD 736-0351

Washer-Flat

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0369

Washer-Flat

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0445

Washer-Flat

$4.49

$

In Stock, Qty 13

0

14

MTD 737-0168

Grease
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 14

0

15

MTD 741-0662

Bearing-Flange

$10.99

$

In Stock, Qty 18

0

16

MTD 741-0663

Bearing-Flange

$9.99

$

In Stock, Qty 20+

0

17

MTD 618-0152A

Ass'y. Complete 22"
(Superseded to 918-0413B)

$

$

Not available

MTD 618-0120A

Ass'y Complete 24"
(Superseded to 918-0414B)

$

$

Not available
