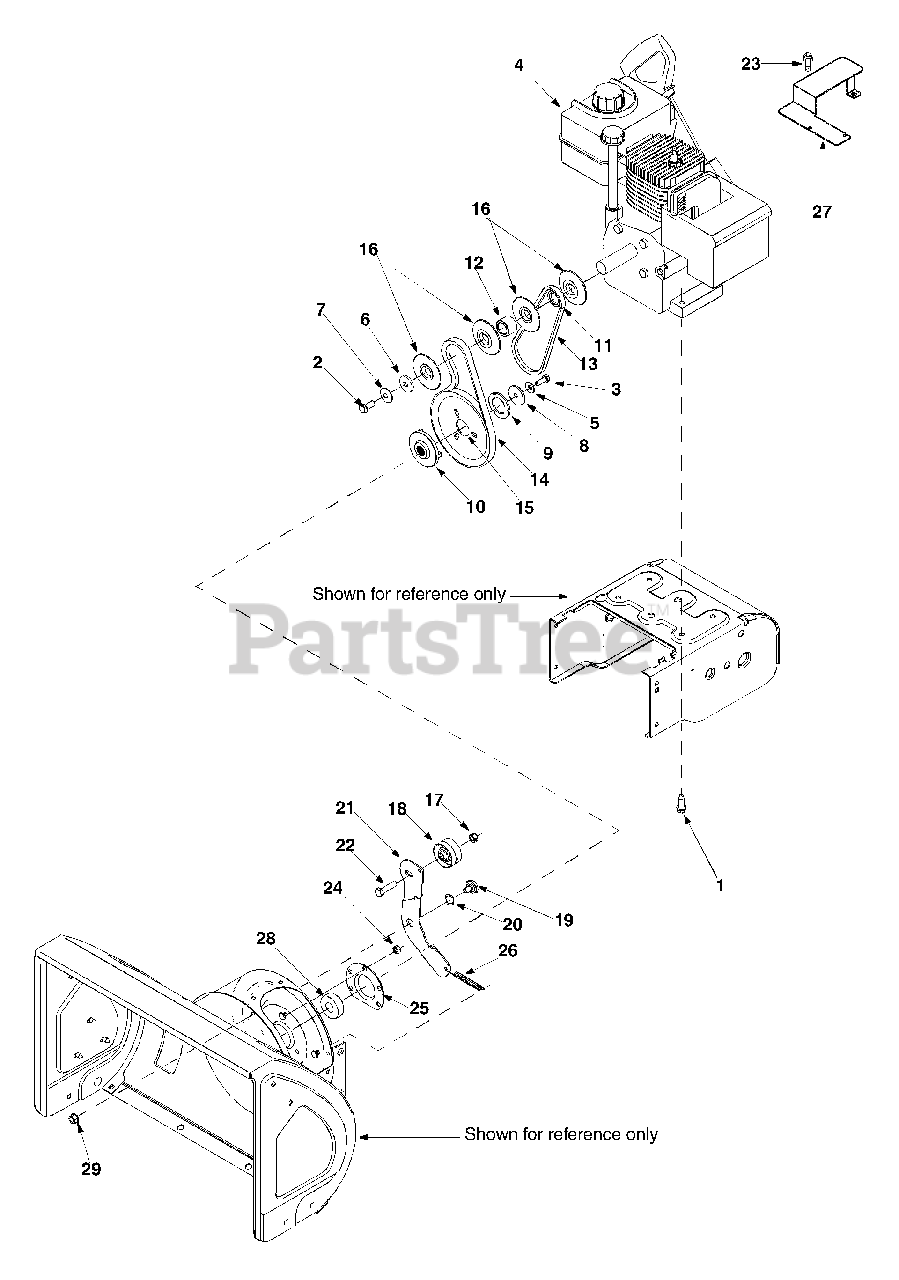

31A-3BAD729 - Yard Machines Snow Thrower (2005) (Home Depot) Drive Parts Diagram

Snow Thrower

Drive Parts Diagram

  • Title
1

MTD 710-0654A

TT Sems Screw 3/8-16 x 1.0"

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0696

Hex Bolt 3/8-24 x 0.875"

$6.99

$

In Stock, only 2 left!

0

3

MTD 710-1245B

Lock Bolt 5/16-24 x 0.875"

$8.49

$

In Stock, only 1 left!

0

4

Engine

$

$

Not available

5

MTD 736-0242

Bell Washer,.340 x.872 x.060

$4.49

$

In Stock, Qty 20+

0

6

MTD 736-0247

Flat Washer,.406ID x 1.25OD

$9.49

$

In Stock, Qty 14

0

7

MTD 736-0331

Bell Washer,.390 x 1.13 x.062

$3.99

$

In Stock, Qty 20+

0

8

MTD 736-0505

Flat Washer,.34ID x 1.50OD

$6.49

$

In Stock, Qty 11

0

9

MTD 936-0507

Special Washer, 1.285 x 2.0 x.119

$6.99

$

Usually ships in 3-6 days

0

10

MTD 948-0360

Pulley: Adapter,.75 Dia.

$22.99

$

In Stock, only 1 left!

0

11

MTD 950-1355

Spacer,.8760ID x 1.25OD x.1900

$6.49

$

Usually ships in 3-6 days

0

12

MTD 950-1356

Spacer,.8760ID x 1.25OD x.86

$10.99

$

Usually ships in 3-6 days

0

13

MTD 954-04013

V-Belt, 3/8 x 21.108 Lg.

$22.99

$

In Stock, Qty 11

0

14

MTD 954-05110

V-Belt, 3/8 x 26.375 Lg.

$28.99

$

In Stock, Qty 8

0

15

MTD 956-04024

Auger Pulley

$25.99

$

Usually ships in 3-6 days

0

16

MTD 756-0569

Pulley Half

$10.99

$

Usually ships in 3-6 days

0

17

MTD 912-3000

Hex Lock Nut 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

18

MTD 756-04035

Flat Idler

Note: No Longer Available

$

$

Not available

19

MTD 938-0281

Shoulder Screw 3/8-16
(Superseded to 738-0281)

$

$

Not available

20

MTD 736-0174

Wave Washer

$6.99

$

In Stock, Qty 12

0

21

MTD 784-0434-0637

Auger Idler Bracket
(Superseded to 784-0434C-0637)

$19.99

$

Usually ships in 3-6 days

0

22

MTD 710-0520

Hex Bolt 3/8-16 x 1.50"

$4.49

$

In Stock, Qty 6

0

23

MTD 710-0456

Screw, #10-16 x.500

$

$

Not available

24

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

MTD 790-00075

Bearing Housing
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 12

0

26

MTD 932-0611

Extension Spring

$7.49

$

In Stock, Qty 20+

0

27

MTD 990-00064

Heat Shield

$

$

Not available

28

MTD 941-0309

Ball Bearing

$74.99

$

Usually ships in 3-6 days

0

29

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0
