31A-3BAD729 - Yard Machines Snow Thrower (2005-2) (Home Depot) Handle & Wheels Parts Diagram

Snow Thrower

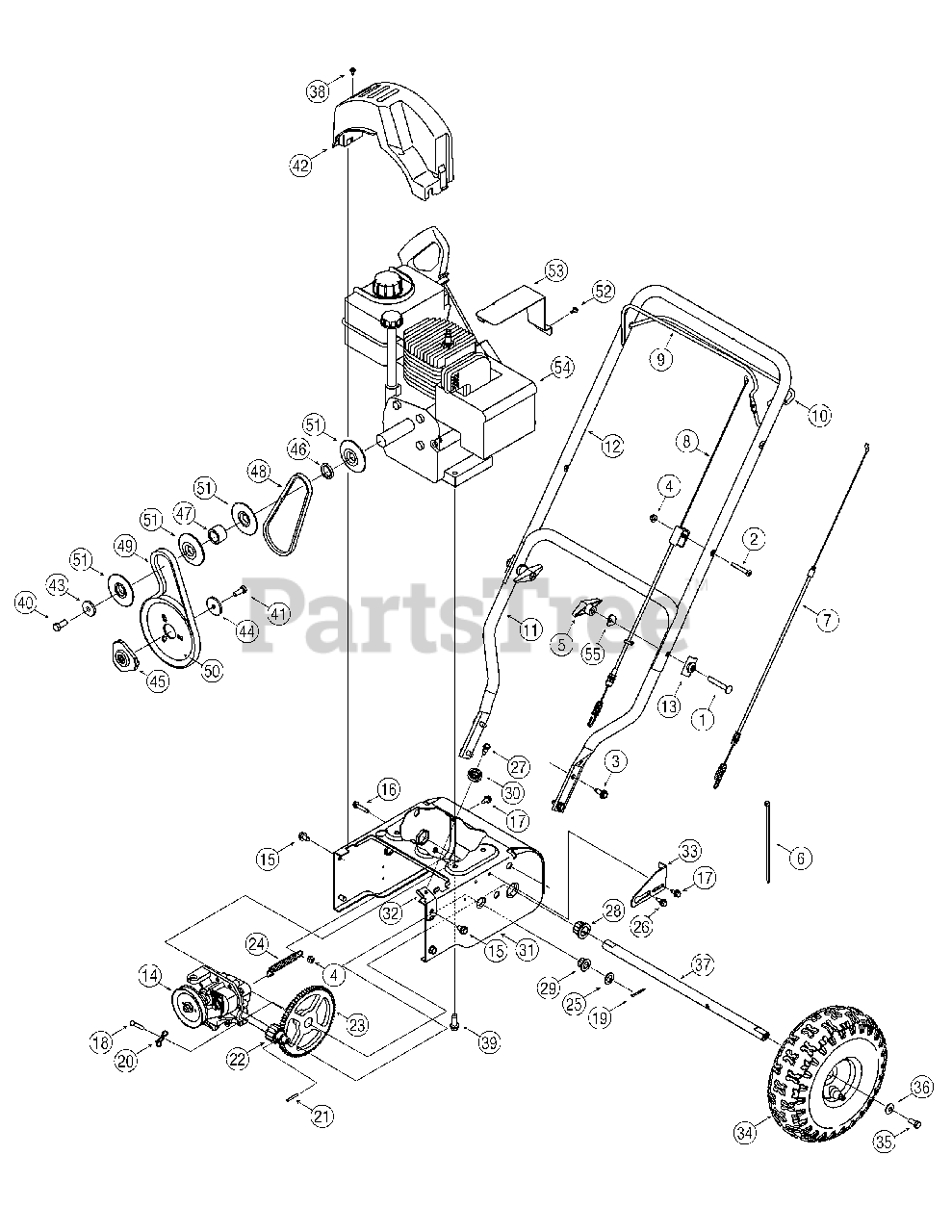

Handle & Wheels Parts Diagram

  • Title

1

MTD 710-0572

Carriage Screw 5/16-18 x 2.25"

$4.49

$

In Stock, only 4 left!

0

2

MTD 710-0605

Mach. Screw 1/4-20 x 1.825"

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-1260A

Screw, 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

MTD 920-0284

Nut Knob 5/16-18
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

6

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

7

MTD 946-04008

Drive Cable

$47.99

$

In Stock, only 1 left!

0

8

MTD 946-04236

Auger Cable

$38.99

$

In Stock, Qty 7

0

8

MTD 731-04216A

Fitting, Dual Cable

$11.99

$

In Stock, Qty 20+

0

9

MTD 747-1161A-0637

Auger Control

$13.99

$

In Stock, only 4 left!

0

10

MTD 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

11

MTD 749-04147

Lower Handle
(Superseded to 749-04147B)

Variations

MTD 749-04147-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$61.99

$

Usually ships in 3-6 days

0

$61.99

$

Usually ships in 3-6 days

0

12

MTD 749-1092A

Upper Handle

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

13

MTD 990-00053

Handle Tab

$7.49

$

Usually ships in 3-6 days

0

14

MTD 918-04296B

Transmission Assembly

$286.99

$

In Stock, Qty 6

0

15

MTD 710-0604A

AB Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0809

TT Screw 1/4-20 x 1.25"

$6.99

$

In Stock, Qty 19

0

17

MTD 710-1652

Screw, 1/4-20 x.625"

$4.49

$

In Stock, Qty 20+

0

18

MTD 711-1364

Clevis Pin

$8.49

$

In Stock, only 2 left!

0

19

MTD 914-0115

Cotter Pin, 1/8 x 1.0
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

20

MTD 714-04040

Bow Tie Cotter Pin 72

$1.49

$

In Stock, Qty 20+

0

21

MTD 915-0249

Roll Pin

$6.99

$

In Stock, only 2 left!

0

22

MTD 917-04066

Pinion 14T
(Superseded to 717-04066A)

$23.99

$

Usually ships in 3-6 days

0

23

MTD 917-04073A

Gear 70T

$60.99

$

Usually ships in 3-6 days

0

24

MTD 932-0429A

Extension Spring

$8.99

$

In Stock, Qty 20+

0

25

MTD 936-0192

Flat Washer

$4.49

$

In Stock, Qty 18

0

26

MTD 738-04184A

Shoulder Screw 1/4-20

$6.99

$

In Stock, Qty 15

0

27

MTD 738-0924A

Carriage Screw 1/4-28

$6.99

$

In Stock, Qty 5

0

28

MTD 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

29

MTD 741-04108

Hex Flange Bearing

$5.99

$

In Stock, only 2 left!

0

30

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

31

MTD 784-0419C

Drive Housing Frame

Variations

MTD 784-0419C-0638

HOUSING-FRAME WHL - MTD/TROY-BILT RED (0638)

$83.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-0662

HOUSING-FRAME WHL - OYSTER GRAY (0662)

$72.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-0689

HOUSING-FRAME WHL - POLO GREEN (0689)

$83.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-0691

HOUSING-FRAME WHL - BLACK JACK (0691)

$89.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-0709

HOUSING-FRAME WHL - MASTERCRAFT GREEN (0709)

$78.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-0729

HOUSING-FRAME WHL - STORM GRAY (0729)

$83.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-4041

HOUSING-FRAME WHL - PURE ORANGE (4041)

$72.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-0721

HOUSING-FRAME WHL - SEARS RED (0721)

$

$

Not available

MTD 784-0419C-4043

HOUSING-FRAME WHL - CRAFTSMAN METALLIC GRAY (4043)

$

$

Not available

MTD 784-0419C-4044

HOUSING-FRAME WHL - CRAFTSMAN RED (4044)

$

$

Not available

$78.99

$

Usually ships in 3-6 days

0

32

MTD 790-00223A-0637

Auger Cable Bracket

$

$

Not available

33

MTD 790-00224

Auger Cable Adj. Bracket

Variations

MTD 790-00224-0637

BRACKET:ADJ CABLE - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

34

MTD 934-04282B

Wheel Assembly Snow Hog Gray

Note: SEE SAFETY RECALL

$54.99

$

In Stock, Qty 20+

0

34

MTD 753-05426

Pressure Relief Valve for wheel assy
(Superseded to 753-10984)

Note: SEE SAFETY RECALL. Use on units Manufactured Between June 1, 2004 (date code ...F014...) and December 31, 2005 (date code ...L315...). (Part Not shown)

$189.99

$

Usually ships in 3-6 days

0

34

MTD 753-06263

Pressure Relief Valve Service Kit

Note: Service Kit for 31A-3BAD729 Home Depot Units Only. SEE SAFETY RECALL. Use on units Manufactured Between June 1, 2004 (date code ...F014...) and December 31, 2005 (date code ...L315...). (Part Not shown)

$

$

Not available

35

MTD 710-0627

Lock Bolt 5/16-24 x 0.75"

$4.49

$

In Stock, Qty 20+

0

36

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

37

MTD 738-04321

Axle

$44.99

$

Usually ships in 3-6 days

0

38

MTD 910-0224

Hex Screw, #10-16 x.500

$3.99

$

In Stock, only 2 left!

0

39

MTD 710-0654A

TT Sems Screw 3/8-16 x 1.0"

$4.49

$

In Stock, only 3 left!

0

40

MTD 710-0696

Hex Bolt 3/8-24 x 0.875"

$6.99

$

In Stock, only 2 left!

0

41

MTD 710-1245B

Lock Bolt 5/16-24 x .0875

$8.49

$

In Stock, only 2 left!

0

42

MTD 931-04162A

Belt Cover

$30.99

$

In Stock, only 1 left!

0

43

MTD 736-0247

Flat Washer,.406ID x 1.25 0D

$9.49

$

In Stock, Qty 15

0

44

MTD 736-0505

Flat Washer,.34ID x 1.50 OD

$6.49

$

In Stock, only 2 left!

0

45

MTD 948-04067

Pulley: Adapter,.75 Dia.
(Superseded to 748-04067A)

$26.99

$

Usually ships in 3-6 days

0

46

MTD 950-1355

Spacer, .876 x 1.25 x.19

$6.49

$

Usually ships in 3-6 days

0

47

MTD 950-1356

Spacer, .876 x 1.25 x .86

$10.99

$

Usually ships in 3-6 days

0

48

MTD 954-04013

V-Belt, 3/8 x 21.108 Lg.

$22.99

$

In Stock, Qty 13

0

49

MTD 954-05110

V-Belt, 3/8 x 26.375 Lg.

$28.99

$

In Stock, Qty 12

0

50

MTD 956-04024

Auger Pulley

$25.99

$

Usually ships in 3-6 days

0

51

MTD 756-0569

Pulley Half

$10.99

$

Usually ships in 3-6 days

0

52

MTD 710-0456

Screw, #10-16 x.500

$

$

Not available

53

MTD 990-00064

Heat Shield

$

$

Not available

54

N/A

5.0HP Tecumseh Engine

Note: Shown for reference.

$

$

Not available

55

MTD 936-0451

Saddle Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0
