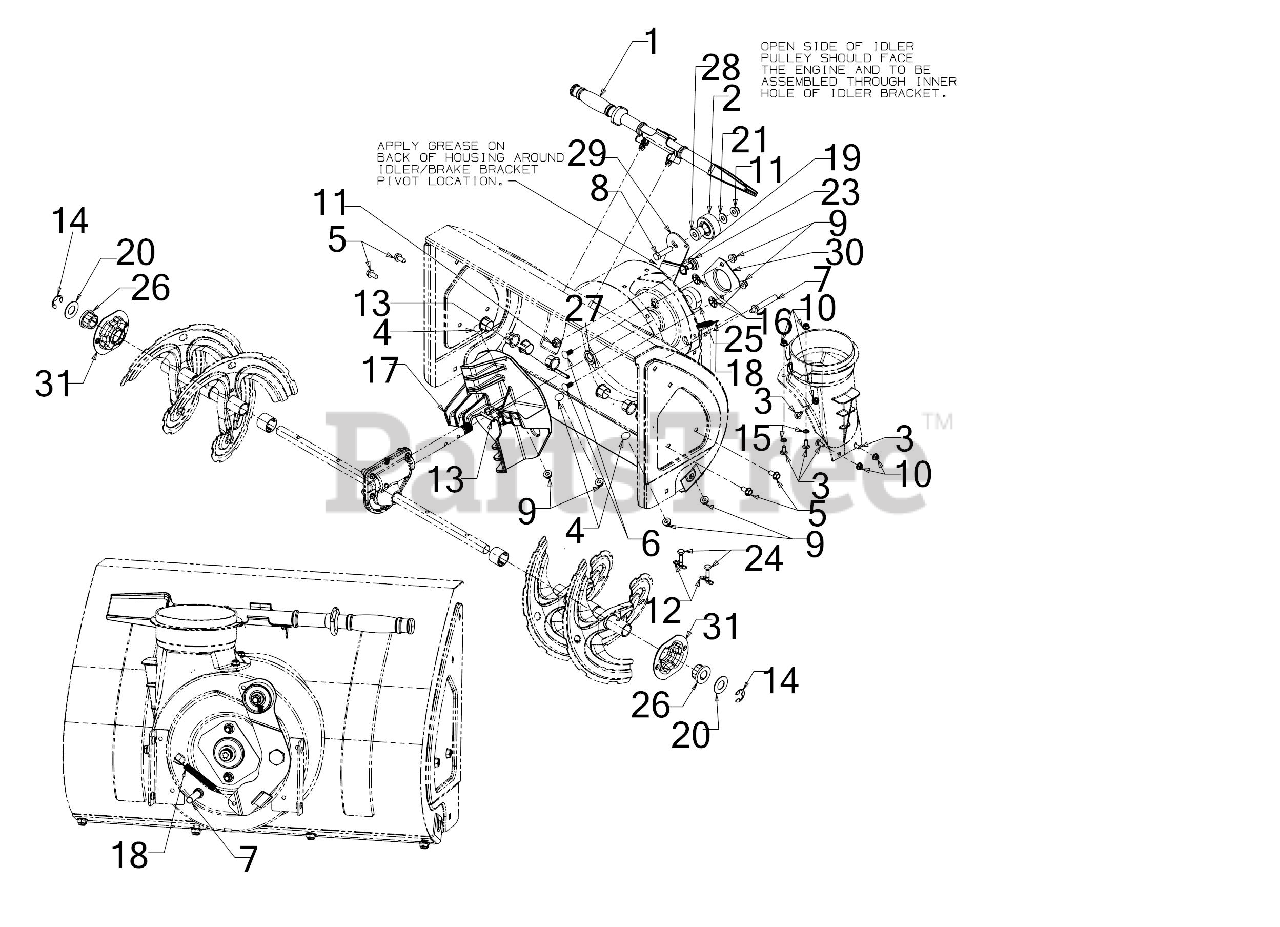

31A-3AAD765 - Bolens Snow Thrower (2017) Impeller Parts Diagram

Snow Thrower

Impeller Parts Diagram

  • Title

1

MTD 931-2643

CLEANOUT TOOL

$19.99

$

In Stock, only 4 left!

0

1

MTD 731-11421

CLEANOUT TOOL MOUNTING CLIP

Note: (Not Shown)

$11.99

$

In Stock, Qty 6

0

2

MTD 684-04358

IDLER PULLEY ASSEMBLY

$25.99

$

In Stock, only 1 left!

0

2

MTD 941-0919B

BALL BEARING

Note: (Not Shown)

$21.99

$

In Stock, Qty 20+

0

3

MTD 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0260A

CARRIAGE BOLT 5/16-18 x .62 GR5

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-04606A

SCREW 5/16-18 x .4300

$7.49

$

In Stock, only 1 left!

0

8

MTD 710-0520

SCREW 3/8-16 x 1.50

$4.49

$

In Stock, Qty 6

0

9

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

12

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

13

MTD 715-04020

SPIRAL PIN

$11.99

$

In Stock, only 2 left!

0

14

MTD 916-0231

E-RING
(Superseded to 716-0231)

$

$

Not available

15

MTD 726-0233

RETAINER-BOLT .25ID x .50OD

$4.49

$

In Stock, only 3 left!

0

16

MTD 926-04012

PUSH ON NUT
(Superseded to 726-04012)

$

$

Not available

17

MTD 731-04218B

IMPELLER 9.486 DIA

$82.99

$

In Stock, only 2 left!

0

18

MTD 932-0611

EXTENSION SPRING

$7.49

$

In Stock, Qty 20+

0

19

MTD 736-0174

WAVE WASHER .660 ID X.88 OD x .010

$6.99

$

In Stock, only 2 left!

0

20

MTD 736-0188

FLAT WASHER .760ID X1.49OD x .06

$4.49

$

In Stock, Qty 20+

0

21

MTD 936-0267

FLAT WASHER
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

23

MTD 938-0281

SHOULDER SCREW .625
(Superseded to 738-0281)

$

$

Not available

24

MTD 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

25

MTD 941-0309

FLANGE BEARING

$74.99

$

Usually ships in 3-6 days

0

26

MTD 741-05041

FLANGE BEARING

$9.99

$

In Stock, only 2 left!

0

27

MTD 950-04191

SPACER

$6.49

$

Usually ships in 3-6 days

0

28

MTD 750-04852

SHOULDER SPACER .385 x .785 x .538

$6.99

$

In Stock, only 1 left!

0

29

MTD 784-0434C-0637

AUGER BRACKET W/BRAKE

$19.99

$

Usually ships in 3-6 days

0

30

MTD 790-00075A

BEARING HOUSIN 1.85 ID
(Superseded to 790-00075B)

$6.49

$

Usually ships in 3-6 days

0

31

MTD 790-00534

HEX BREARING HOUSING

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00534-0637

HOUSING-HEX BRG - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

MTD 790-00534-4021

Hex Bearing Housing - CUB YELLOW 2 (4021)

$13.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0
