31A-3AAD765 - Bolens Snow Thrower (2017) Engine Drive Parts Diagram

Snow Thrower

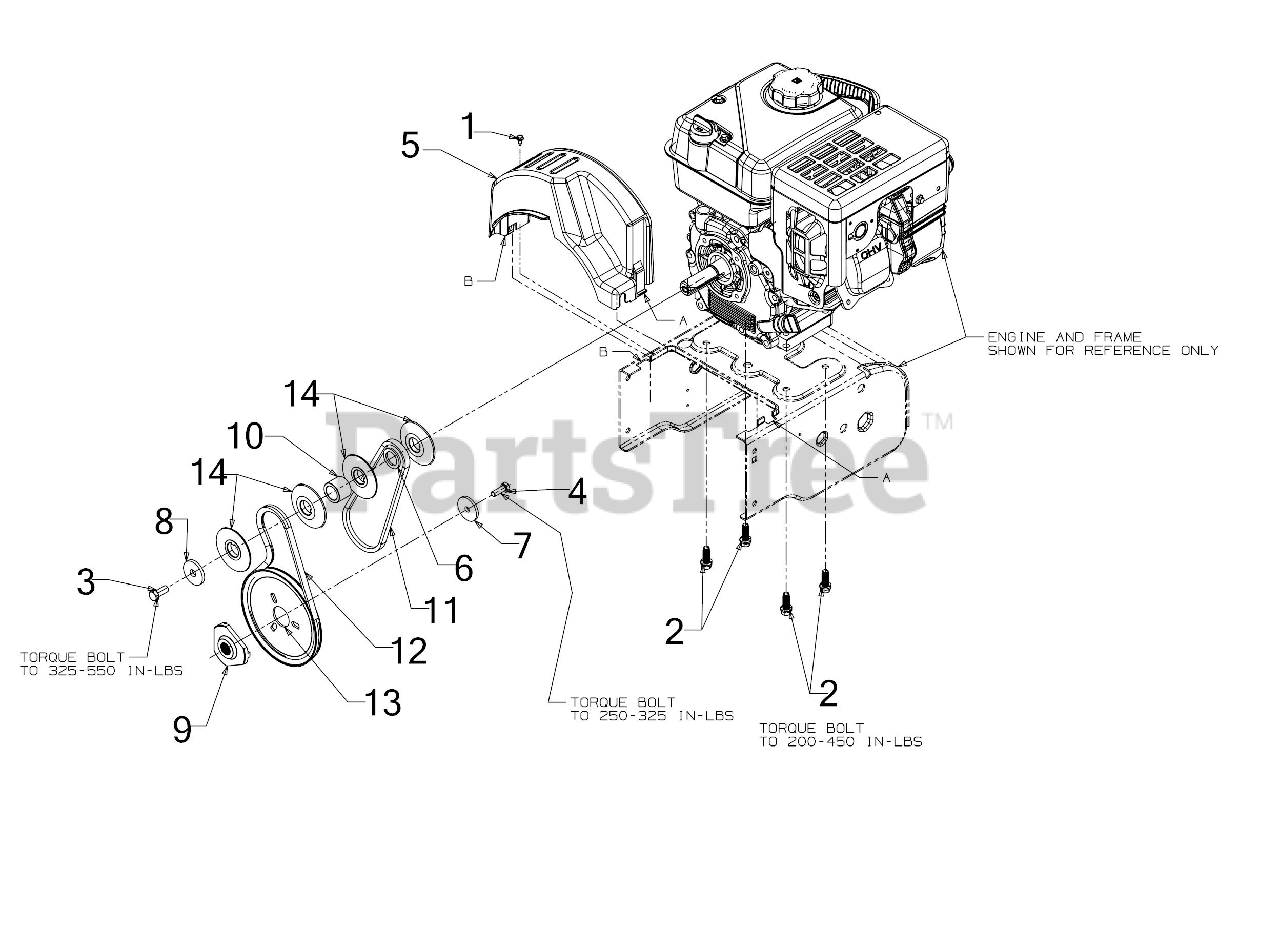

Engine Drive Parts Diagram

  • Title
1

MTD 910-0224

HEX SCREW AB-TAP #10-16 x 0.500

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0654A

SCREW 3/8-16 x 1

$4.49

$

In Stock, only 4 left!

0

3

MTD 710-0696

SCREW 3/8-NF x 7/8 - GR.5

$6.99

$

In Stock, only 2 left!

0

4

MTD 710-1245B

SCREW 5/16-24 x .875 GR5

$8.49

$

In Stock, only 1 left!

0

5

MTD 931-04162A

BELT COVER

$30.99

$

Usually ships in 3-6 days

0

6

MTD 736-05000

FLAT WASHER

$3.49

$

Usually ships in 3-6 days

0

7

MTD 736-0505

FLAT WASHER

$6.49

$

In Stock, Qty 11

0

8

MTD 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.99

$

In Stock, Qty 16

0

9

MTD 748-04067A

ADAPTER PULLEY .75 DIA W/PINS

$26.99

$

Usually ships in 3-6 days

0

10

MTD 750-06001

SPACER

$3.99

$

Usually ships in 3-6 days

0

11

MTD 954-04013

BELT 3/8 x 21.1

$22.99

$

In Stock, Qty 11

0

12

MTD 954-05110

V-BELT 3/8 x 26.375

$28.99

$

In Stock, Qty 8

0

13

MTD 956-04024

AUGER PULLEY

$25.99

$

Usually ships in 3-6 days

0

14

MTD 756-0569

HALF PULLEY-1/2 V

$10.99

$

Usually ships in 3-6 days

0
