31A-380D000 - Yard Machines Snow Thrower (2004) Handle & Wheels Parts Diagram

Snow Thrower

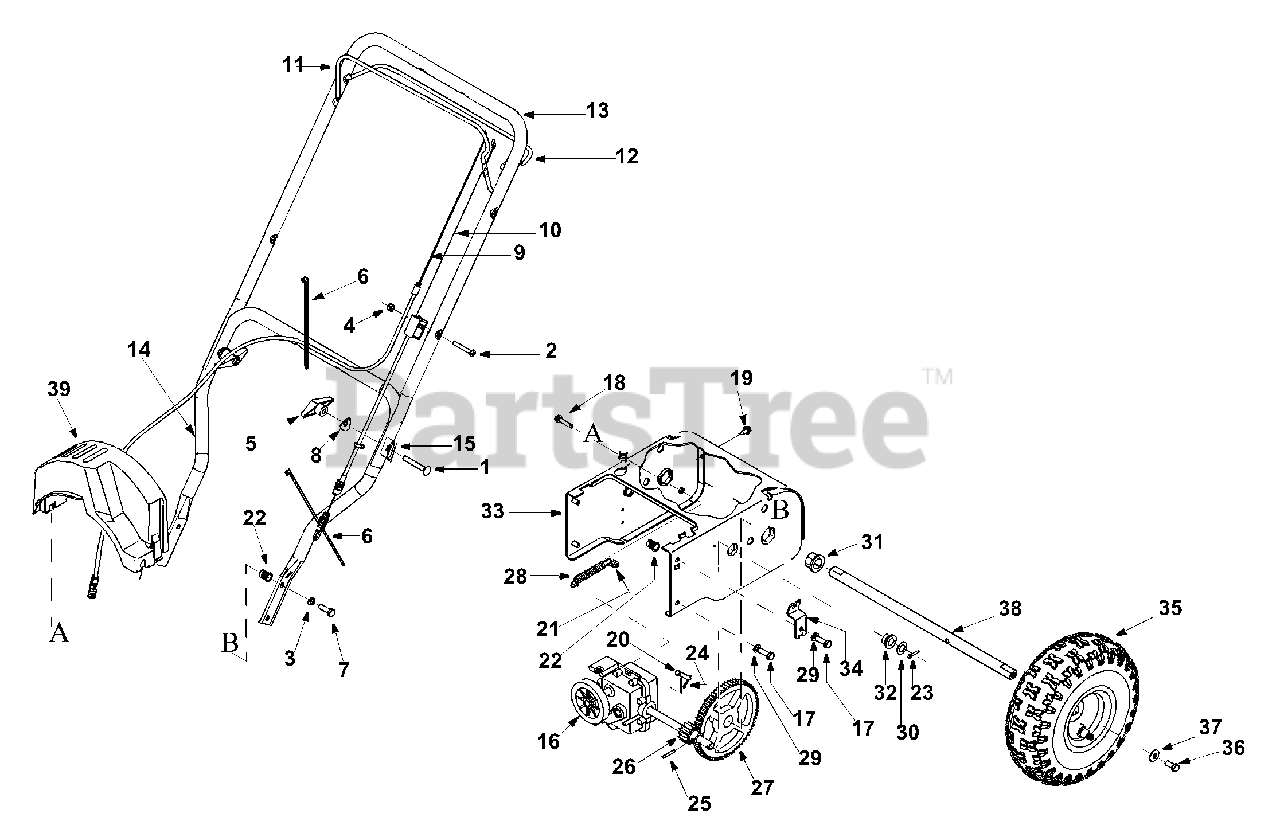

Handle & Wheels Parts Diagram

  • Title
1

MTD 710-0449

Carriage Screw 5/16-18 x 2.
(Superseded to 710-0572)

$4.49

$

In Stock, only 4 left!

0

2

MTD 710-0605

Mach. Screw 1/4-20 x 1.825"

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0643

Hex Bolt 5/16-18 x 1.0"

$6.99

$

In Stock, Qty 5

0

4

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

5

MTD 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

6

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

7

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

MTD 736-0451

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

9

MTD 746-04007

Auger Cable
(Superseded to 946-04007)

$42.99

$

In Stock, only 1 left!

0

MTD 731-04216A

Cable Clamp for Auger Cable

Note: (Not Shown)

$11.99

$

In Stock, Qty 20+

0

10

MTD 746-04008

Drive Cable
(Superseded to 946-04008)

$47.99

$

In Stock, only 1 left!

0

11

MTD 747-1161A

Operator Bail

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

12

MTD 747-1214

Drive Bail

$22.99

$

In Stock, Qty 5

0

13

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

14

MTD 749-1532

Lower Handle
(Superseded to 749-04147B)

Variations

MTD 749-1532-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$61.99

$

Usually ships in 3-6 days

0

$61.99

$

Usually ships in 3-6 days

0

15

MTD 790-00053

Handle Tab
(Superseded to 990-00053)

$7.49

$

Usually ships in 3-6 days

0

16

MTD 618-04008

Transmission Assembly
(Superseded to 753-05146)

$324.99

$

Usually ships in 3-6 days

0

MTD 714-0169

Roll Pin
(Superseded to 914-0169)

$10.99

$

In Stock, Qty 7

0

MTD 756-04041

Pulley
(Superseded to 956-04041)

$

$

Not available

17

MTD 710-0643

Hex Bolt 5/16-18 x 1.0"

$6.99

$

In Stock, Qty 5

0

18

MTD 710-0809

TT Screw 1/4-20 x 1.25"

$6.99

$

In Stock, Qty 19

0

19

MTD 710-1652

TT Screw 1/4-20 x .625"

$4.49

$

In Stock, Qty 20+

0

20

MTD 711-1364

Clevis Pin

$8.49

$

In Stock, only 2 left!

0

21

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

22

MTD 712-0703A

Nut Insert

$7.49

$

Usually ships in 3-6 days

0

23

MTD 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 14

0

24

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, only 2 left!

0

25

MTD 715-0249

Roll Pin
(Superseded to 915-0249)

$6.99

$

In Stock, only 2 left!

0

26

MTD 717-04066

Pinion 14T
(Superseded to 917-04066)

$23.99

$

Usually ships in 3-6 days

0

27

MTD 717-04073

Gear 70T
(Superseded to 917-04073A)

$60.99

$

Usually ships in 3-6 days

0

28

MTD 732-0429A

Extension Spring
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

29

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

MTD 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

31

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

32

MTD 741-0324

Hex Flange Bearing
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

33

MTD 784-0419

Drive Housing Frame
(Superseded to 784-0419C)

Variations

MTD 784-0419-0638

HOUSING-FRAME WHL - MTD/TROY-BILT RED (0638)

$83.99

$

Usually ships in 3-6 days

0

MTD 784-0419-0709

HOUSING-FRAME WHL - MASTERCRAFT GREEN (0709)

$78.99

$

Usually ships in 3-6 days

0

MTD 784-0419-0729

HOUSING-FRAME WHL - STORM GRAY (0729)

$83.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

34

MTD 790-00015

Bracket: Auger Cable
(Superseded to 790-00015-0637)

Variations

MTD 790-00015-0637

Auger Cable Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

35

MTD 634-0232

Wheel Assembly: Snow Hog Gray
(Superseded to 934-04282B)

$54.99

$

In Stock, Qty 20+

0

36

MTD 710-0627

Lock Bolt 5/16-24 x 0.75"

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

38

MTD 738-1231

Axle
(Superseded to 738-04321)

$44.99

$

Usually ships in 3-6 days

0

39

MTD 731-04162

Belt Cover
(Superseded to 931-04162A)

$30.99

$

In Stock, only 1 left!

0
