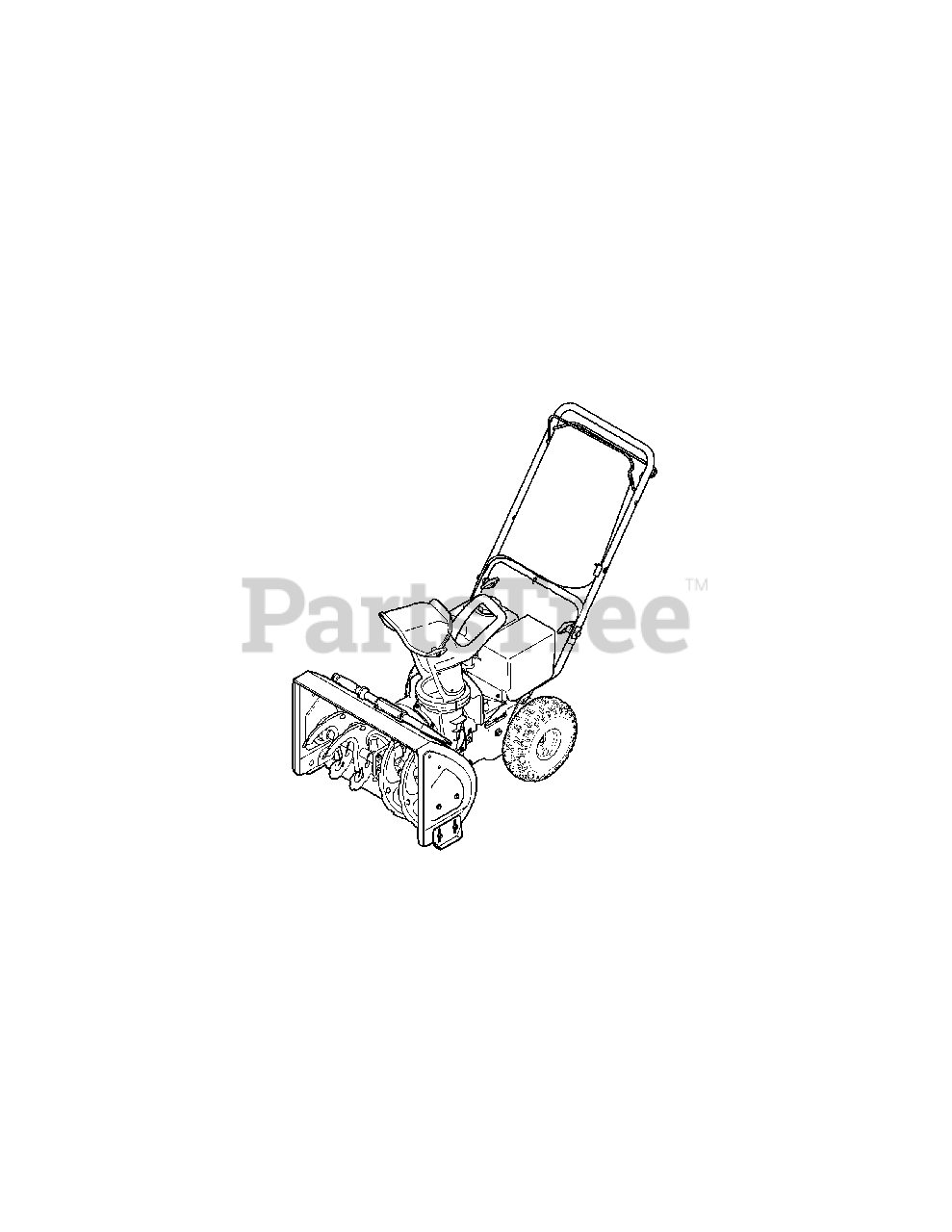

31A-32AD752 - Yard Machines Snow Thrower (2010) (Walmart) .Quick Reference Parts Diagram

Snow Thrower

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 951-10630

Key

$6.99

$

In Stock, Qty 6

0

MTD 929-0071A

Extension Cord
(Superseded to 929-0071B)

Note: (Optional Equipment, if equipped)

$21.99

$

Usually ships in 3-6 days

0

MTD 946-04008

Drive Cable

$47.99

$

Usually ships in 3-6 days

0

MTD 946-04007

Auger Cable

$42.99

$

In Stock, Qty 6

0

MTD 684-04113A-0637

Auger Assembly - LH

$84.99

$

Usually ships in 3-6 days

0

MTD 684-04114A-0637

Auger Assembly - RH

$84.99

$

Usually ships in 3-6 days

0

MTD 731-04218B

Impeller Assembly

$82.99

$

In Stock, only 2 left!

0

MTD 790-00117-0637

Shave Plate

$30.99

$

In Stock, Qty 20+

0

MTD 784-5580-0637

Slide Shoe

$23.99

$

In Stock, Qty 20+

0

MTD 753-06206

Skid Shoe Kit, Standard Polymer

Note: (includes 2 shoes and hardware) (Optional Equipment)

$54.99

$

In Stock, Qty 8

0

MTD 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

MTD 954-04013

Auger Drive Belt

$22.99

$

In Stock, Qty 13

0

MTD 954-05110

Wheel Drive Belt

$28.99

$

In Stock, Qty 12

0

MTD 934-04282B

Wheel

$54.99

$

In Stock, Qty 20+

0
