31A-32AD706 - MTD Snow Thrower (2014) 165-SUC Crankcase Parts Diagram

Snow Thrower

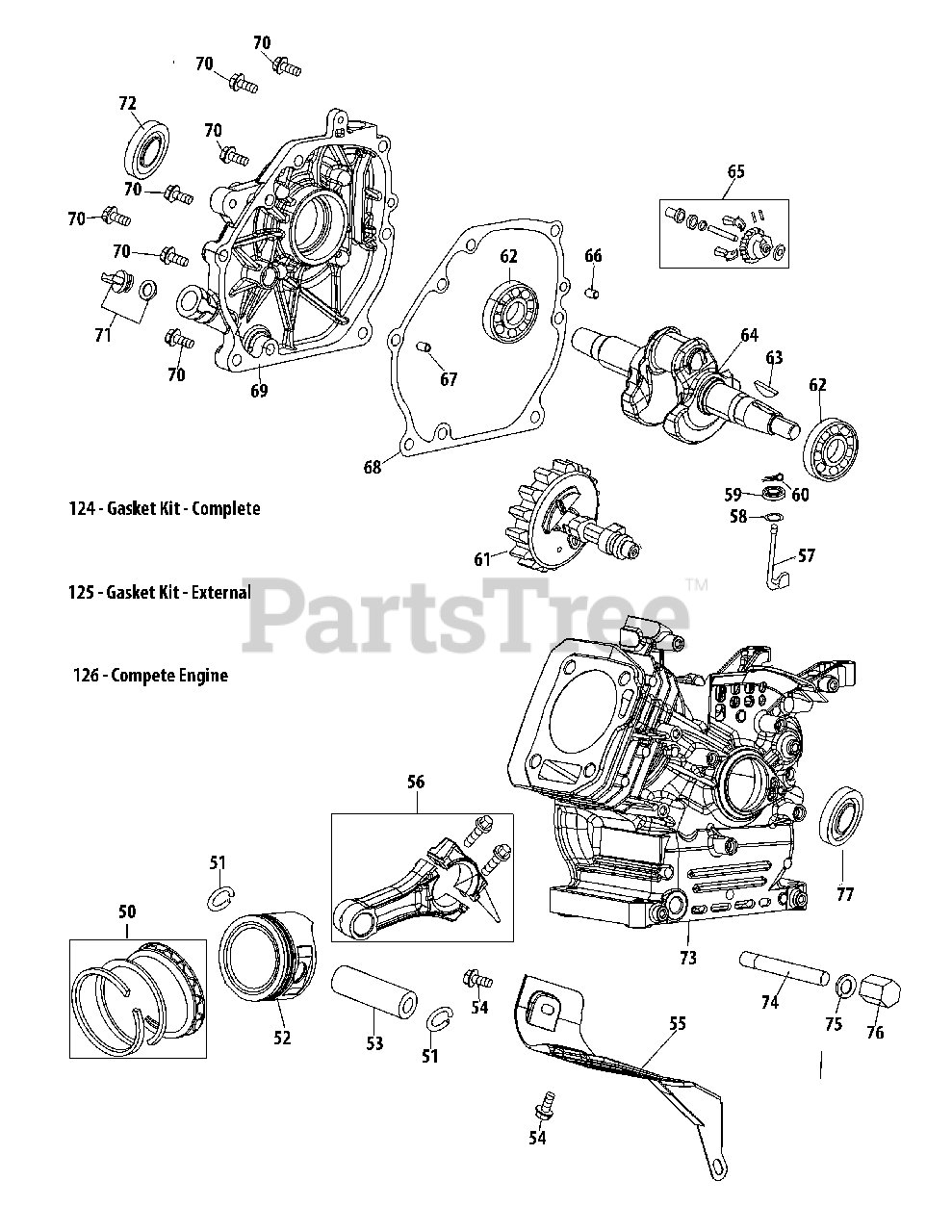

165-SUC Crankcase Parts Diagram

  • Title

50

MTD 951-11688

Piston Ring Set

$19.99

$

In Stock, only 4 left!

0

51

MTD 951-11632

Piston Pin Snap Ring

$4.49

$

In Stock, only 1 left!

0

52

MTD 951-11900

Piston

$34.99

$

In Stock, only 1 left!

0

53

MTD 951-11901

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

54

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, only 3 left!

0

55

MTD 951-11113

Air Shield

$9.49

$

Usually ships in 3-6 days

0

56

MTD 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

In Stock, only 1 left!

0

57

MTD 751-14053

Governor Arm Shaft
(Superseded to 951-14053)

$15.99

$

Usually ships in 3-6 days

0

58

MTD 736-04461

Washer - 5.2 X 1.9

$3.99

$

Usually ships in 3-6 days

0

59

MTD 951-11902

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

60

MTD 714-04078

Cotter Pin

$4.49

$

In Stock, only 1 left!

0

61

MTD 951-11575

Camshaft Assembly

$65.99

$

Usually ships in 3-6 days

0

62

MTD 951-11369

Bearing

$34.99

$

Usually ships in 3-6 days

0

63

MTD 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

64

MTD 951-11247A

Crankshaft Kit

Note: (Incl. 62-64,72,77)

$136.99

$

Usually ships in 3-6 days

0

65

MTD 951-11576

Governor Gear Shaft Assembly
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

66

MTD 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

67

MTD 715-04096

Dowel Pin 9×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

68

MTD 951-11371

Crankcase Cover Gasket
(Superseded to 951-11371A)

$3.99

$

In Stock, only 4 left!

0

69

MTD 951-12125

Crankcase Cover

$115.99

$

Usually ships in 3-6 days

0

69

MTD 951-11246

Crankcase Cover Kit
(Superseded to 951-11248A)

Note: (Incl. 62,68-72)

$200.99

$

In Stock, only 1 left!

0

70

MTD 710-04932

Bolt M8×32

$4.49

$

Usually ships in 3-6 days

0

71

MTD 951-11283

Oil Fill Plug Assembly

$6.99

$

In Stock, only 1 left!

0

71

MTD 951-11577

O-Ring Only

$4.49

$

Usually ships in 3-6 days

0

72

MTD 951-11368

Oil Seal
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 13

0

73

MTD 951-11248A

Crankcase Kit

Note: (Incl. 59,62,72,73,77)

$200.99

$

In Stock, only 1 left!

0

73

MTD 951-11062B

Short Block Assembly

Note: (Incl. 4,21,27-29,32,44,46,47,50-53,56-77)

$380.99

$

Usually ships in 3-6 days

0

74

MTD 951-11350

Extended Oil Drain Pipe

$9.49

$

Usually ships in 3-6 days

0

75

MTD 736-04440

Drain Pipe Washer 10X16X1.5
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

76

MTD 710-04906

Drain Plug Bolt

$6.99

$

In Stock, only 3 left!

0

77

MTD 951-11370

Oil Seal
(Superseded to 751P11370A)

$2.99

$

In Stock, only 2 left!

0

124

MTD 951-11061A

Gasket Kit-Complete

Note: (Incl. 4,21,27-29,32,44,58,59,68,72,75,77)

$44.99

$

In Stock, only 2 left!

0

125

MTD 951-10661B

Gasket Kit-External

Note: (Incl. 4,21,27-29,32,75)

$32.99

$

In Stock, only 1 left!

0

126

MTD 952Z165-SUC

Complete Engine
(Superseded to 952Z165-WU)

$683.99

$

Usually ships in 3-6 days

0
