31A-32AD706 - MTD Snow Thrower (2012) Handle, Frame & Drive System Parts Diagram

Snow Thrower

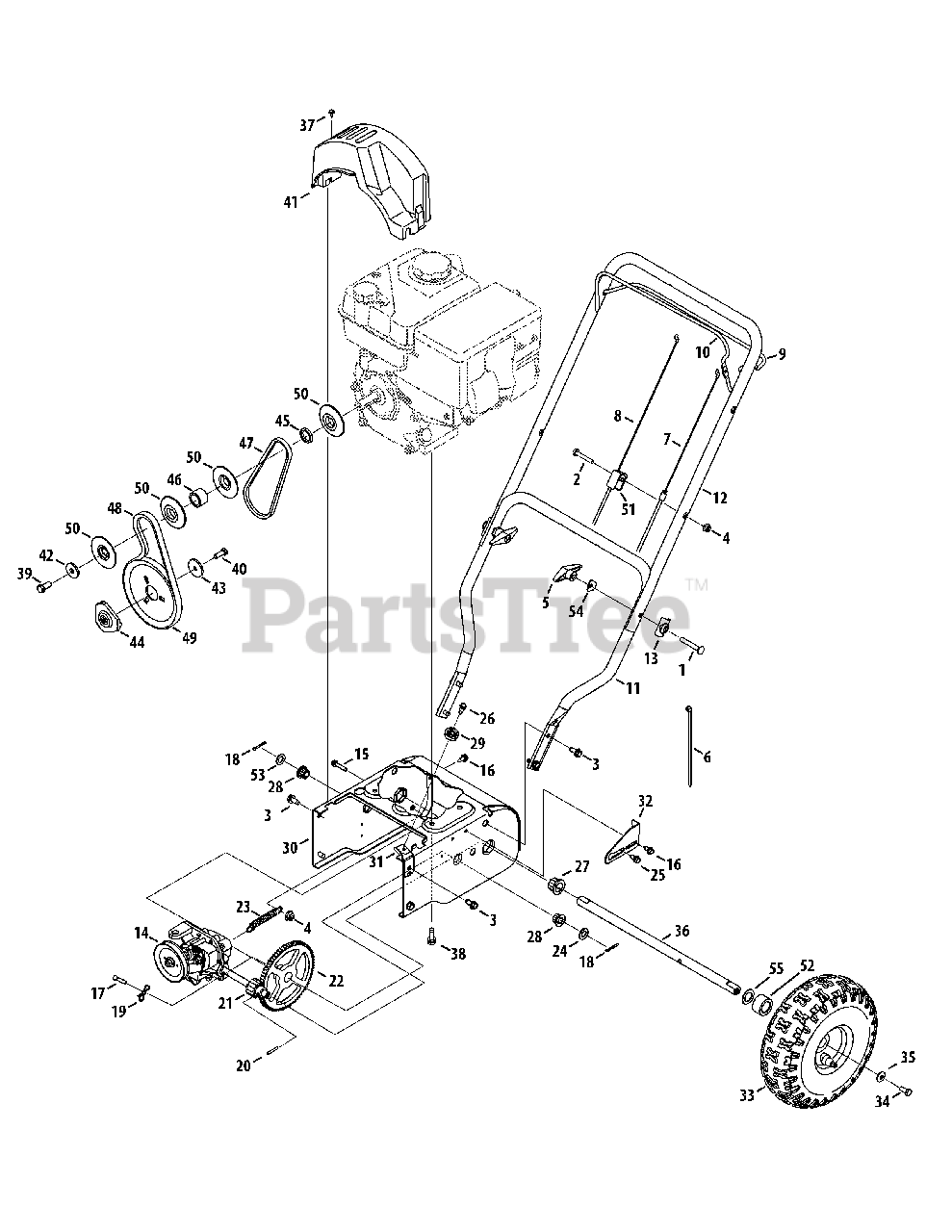

Handle, Frame & Drive System Parts Diagram

  • Title

1

MTD 710-0572

Carriage Screw, 5/16-18 x 2.25

$4.49

$

In Stock, only 4 left!

0

2

MTD 710-0606

Mach. Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 9

0

3

MTD 710-04484

Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

MTD 720-04072A

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

6

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

7

MTD 946-04642A

Drive Cable

$41.99

$

In Stock, only 3 left!

0

8

MTD 946-04640

Auger Cable

$33.99

$

In Stock, only 1 left!

0

9

MTD 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

10

MTD 747-1161A-0637

Auger Control

$13.99

$

In Stock, only 4 left!

0

11

MTD 749-04147B

Lower Handle

$61.99

$

Usually ships in 3-6 days

0

12

MTD 749-04459-0637

Upper Handle

$39.99

$

Usually ships in 3-6 days

0

13

MTD 990-00053

Handle Tab

$7.49

$

Usually ships in 3-6 days

0

14

MTD 918-04296B

Transmission Assembly

$286.99

$

In Stock, Qty 6

0

15

MTD 710-0809

Self-Tapping Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

16

MTD 710-1652

Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

17

MTD 711-1364

Clevis Pin

$8.49

$

In Stock, only 2 left!

0

18

MTD 914-0115

Cotter Pin, 1/8 x 1.0
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

19

MTD 714-04040

Bow Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

20

MTD 915-0249

Roll Pin

$6.99

$

In Stock, only 2 left!

0

21

MTD 717-04066A

Pinion, 14T

$23.99

$

Usually ships in 3-6 days

0

22

MTD 917-04073A

Gear, 70T

$60.99

$

Usually ships in 3-6 days

0

23

MTD 932-0429A

Extension Spring

$8.99

$

In Stock, Qty 20+

0

24

MTD 936-0192

Flat Washer

$4.49

$

In Stock, Qty 18

0

25

MTD 738-04184A

Shoulder Screw, 1/4-20

$6.99

$

In Stock, Qty 15

0

26

MTD 738-0924A

Shoulder Screw, 1/4-28

$6.99

$

In Stock, Qty 5

0

27

MTD 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

28

MTD 741-04108

Hex Flange Bearing

$5.99

$

In Stock, only 2 left!

0

29

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

30

MTD 784-0419C

Drive Housing Frame

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-0419C-0638

HOUSING-FRAME WHL - MTD/TROY-BILT RED (0638)

$83.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-0662

HOUSING-FRAME WHL - OYSTER GRAY (0662)

$72.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-0689

HOUSING-FRAME WHL - POLO GREEN (0689)

$83.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-0691

HOUSING-FRAME WHL - BLACK JACK (0691)

$89.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-0709

HOUSING-FRAME WHL - MASTERCRAFT GREEN (0709)

$78.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-0729

HOUSING-FRAME WHL - STORM GRAY (0729)

$83.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-4041

HOUSING-FRAME WHL - PURE ORANGE (4041)

$72.99

$

Usually ships in 3-6 days

0

MTD 784-0419C-0721

HOUSING-FRAME WHL - SEARS RED (0721)

$

$

Not available

MTD 784-0419C-4043

HOUSING-FRAME WHL - CRAFTSMAN METALLIC GRAY (4043)

$

$

Not available

MTD 784-0419C-4044

HOUSING-FRAME WHL - CRAFTSMAN RED (4044)

$

$

Not available

$78.99

$

Usually ships in 3-6 days

0

31

MTD 790-00223A-0637

Auger Cable Bracket

$

$

Not available

32

MTD 790-00224

Auger Cable Adj. Bracket

Variations

MTD 790-00224-0637

BRACKET:ADJ CABLE - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

33

MTD 934-04282B

Wheel Assy. ,Snow Hog, Gray

$54.99

$

In Stock, Qty 20+

0

34

MTD 710-0627

Lock Bolt, 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

35

MTD 736-0242

Bell Washer, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

36

MTD 738-04321

Axle

$44.99

$

Usually ships in 3-6 days

0

37

MTD 910-0224

Hex Screw, #10-16 x .500

$3.99

$

In Stock, only 2 left!

0

38

MTD 710-0654A

Sems Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

39

MTD 710-0696

Hex Bolt ,3/8-24 x .875

$6.99

$

In Stock, only 2 left!

0

40

MTD 710-1245B

Lock Bolt, 5/16-24 x .875

$8.49

$

In Stock, only 2 left!

0

41

MTD 931-04162A

Belt Cover

$30.99

$

In Stock, only 1 left!

0

42

MTD 736-0247

Flat Washer, .406 ID x 1.25 OD

$9.49

$

In Stock, Qty 16

0

43

MTD 736-0505

Flat Washer, .34 ID x 1.50 OD

$6.49

$

In Stock, only 2 left!

0

44

MTD 748-04067A

Pulley: Adapter ,.75 Dia.

$26.99

$

Usually ships in 3-6 days

0

45

MTD 736-05000

Flat Washer, .876 x 1.25 x .11

$3.49

$

Usually ships in 3-6 days

0

46

MTD 750-06001

Spacer, .876 x 1.25 x .94

$3.99

$

Usually ships in 3-6 days

0

47

MTD 954-04013

V-belt, 3/8 x 21.108 Lg.

$22.99

$

In Stock, Qty 13

0

48

MTD 954-05110

V-belt, 3/8 x 26.375 Lg.

$28.99

$

In Stock, Qty 12

0

49

MTD 956-04024

Auger Pulley

$25.99

$

Usually ships in 3-6 days

0

50

MTD 756-0569

Pulley Half

$10.99

$

Usually ships in 3-6 days

0

51

MTD 731-06749

Cable Clip

$5.49

$

In Stock, Qty 12

0

52

MTD 731-05672A

Spacer

$15.99

$

In Stock, only 1 left!

0

53

MTD 936-0160

Flat Washer, .53 x .93 x .05

$4.49

$

In Stock, Qty 9

0

54

MTD 936-0451

Saddle Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

55

MTD 936-0287

Flat Washer, .793 x 1.24 x .06
(Superseded to 736-0287)

$

$

Not available
