31A-2M1EB00 - Yard Machines Snow Thrower (2022) Engine Drive Parts Diagram

Snow Thrower

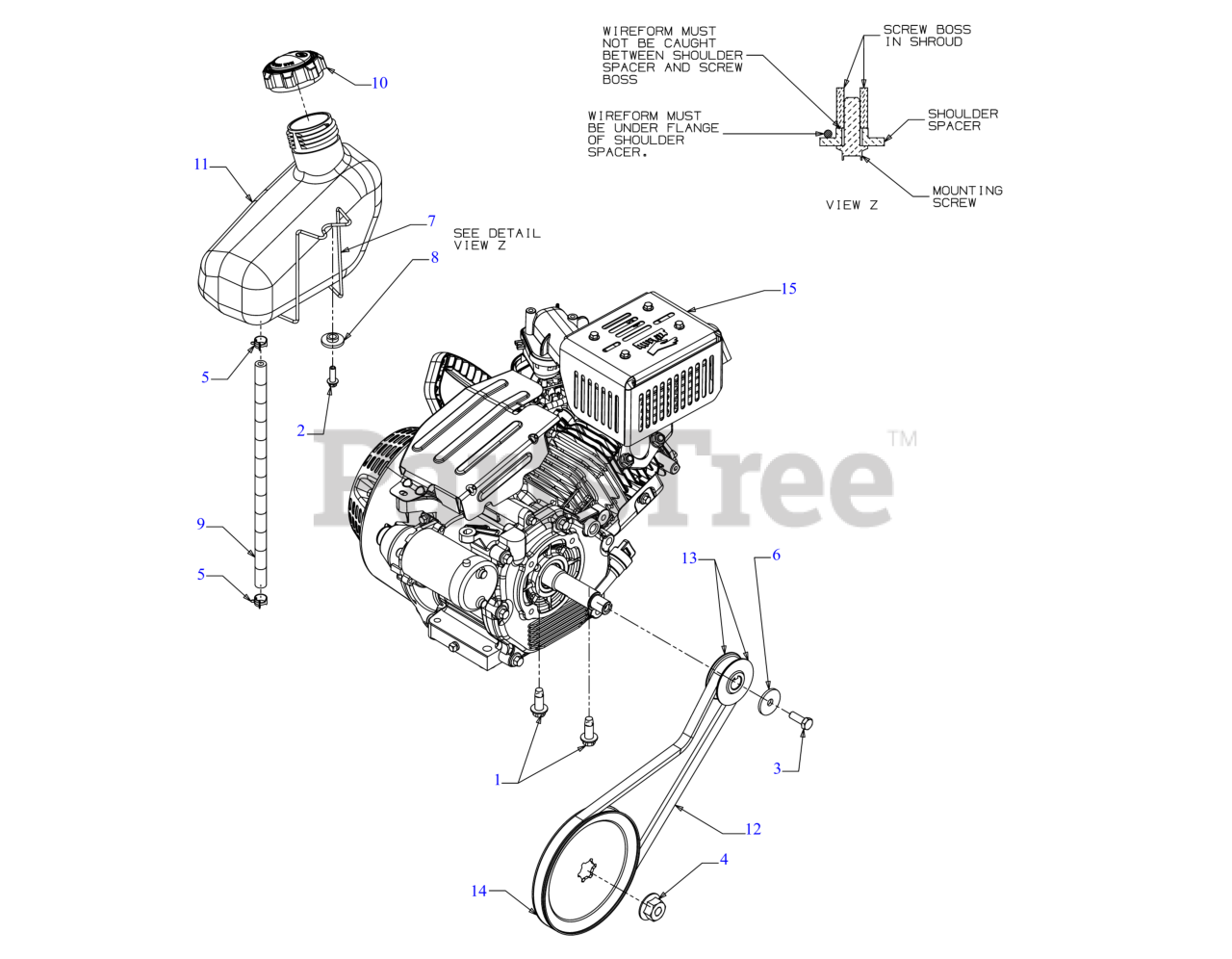

Engine Drive Parts Diagram

  • Title

1

MTD 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, only 3 left!

0

2

MTD 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-1245B

SCREW 5/16-24 x .875 GR5

$8.49

$

In Stock, only 2 left!

0

4

MTD 912-0702

FLANGE NUT W/HUB

$18.99

$

In Stock, only 1 left!

0

5

MTD 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 18

0

6

MTD 736-0343

WASHER-5/16 x 1.25X 1.27

$4.49

$

In Stock, Qty 7

0

7

MTD 747-10470

FUEL TANK WIRE SUPPORT

$11.99

$

Usually ships in 3-6 days

0

8

MTD 748-0234

SHOULDER SPACER

$4.49

$

Usually ships in 3-6 days

0

9

MTD 751-10349-16

FUEL HOSE LOW PERMEATION 16"

$19.99

$

In Stock, Qty 11

0

10

MTD 751-10487C

FUEL CAP

$16.99

$

In Stock, only 1 left!

0

11

MTD 751-14001

FUEL TANK (2 QT)
(Superseded to 751-14001A)

$44.99

$

In Stock, only 1 left!

0

12

MTD 954-04050A

V-BELT .500 x 35.00LG

$27.99

$

In Stock, Qty 20+

0

12

MTD 490-501-C079

Cub Cadet AUGER BELT

Note: Retail Packaged Part

$34.99

$

In Stock, only 3 left!

0

12

MTD 256963

Genuine Factory Parts AUGER BELT

Note: Retail Packaged Part

$34.99

$

In Stock, only 2 left!

0

13

MTD 956-0416B

HALF PULLEY

$10.99

$

In Stock, only 2 left!

0

13

MTD 936-0336

FLAT WASHER

Note: (Optional Shim Washer, Use as Needed)

$4.49

$

In Stock, Qty 7

0

14

MTD 756-04443

AUGER PULLEY

$23.99

$

In Stock, only 4 left!

0

15

MTD 752Z161-JU

COMPLETE ENGINE 123cc
(Superseded to 952Z161-JU)

$373.99

$

Usually ships in 3-6 days

0
