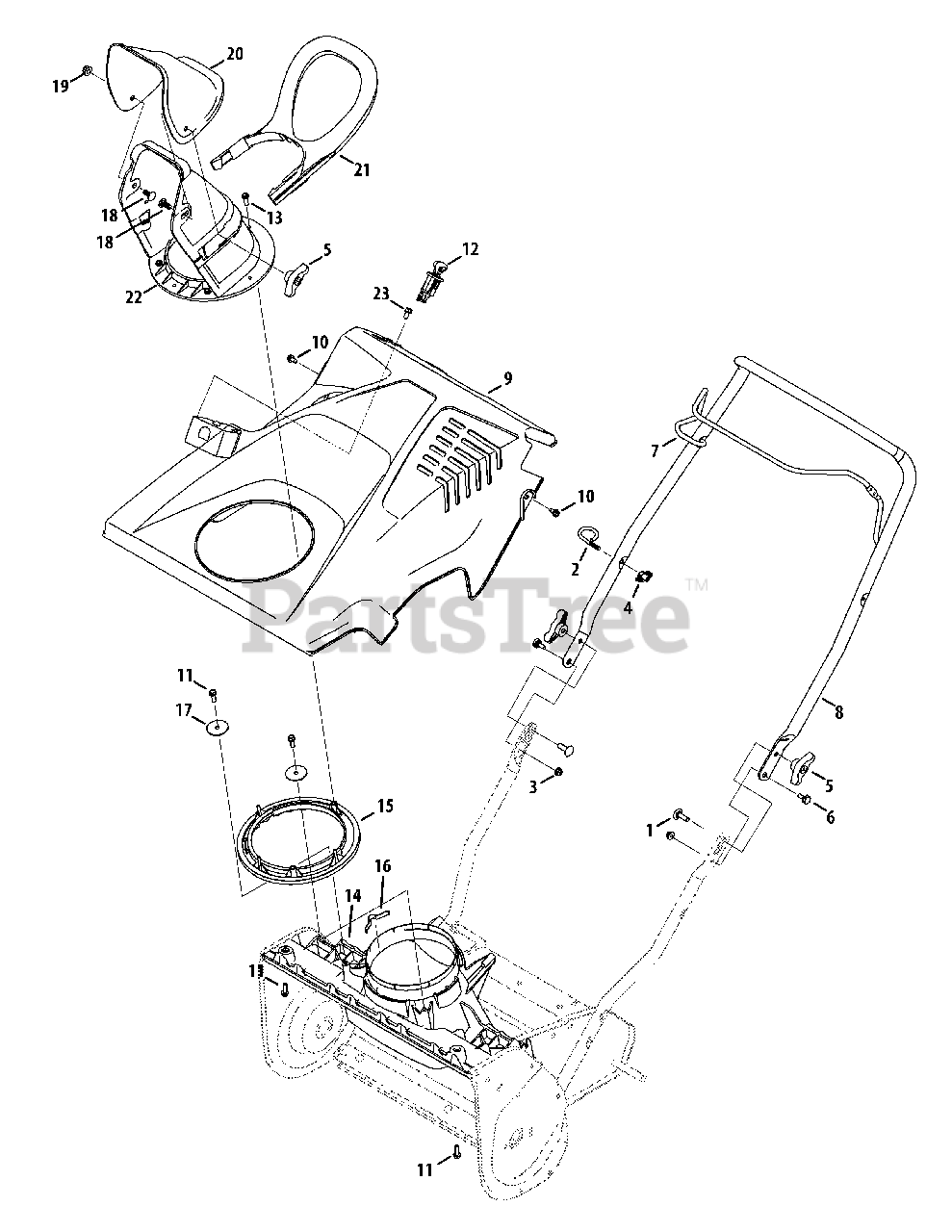

31A-2M1E700 - Yard Machines Snow Thrower (2011) Shroud, Chute & Handle Parts Diagram

Snow Thrower

Shroud, Chute & Handle Parts Diagram

  • Title

1

MTD 710-04998

Carriage Bolt, 5/16-18 x 1.00

$5.99

$

Usually ships in 3-6 days

0

2

MTD 710-05348

Eye Bolt, 1/4-20

$3.99

$

In Stock, only 1 left!

0

3

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

4

MTD 720-0279

Knob Handle

$4.49

$

Usually ships in 3-6 days

0

5

MTD 720-04122

Wing Knob

$6.99

$

In Stock, Qty 5

0

6

MTD 738-04419A

Shoulder Screw, .375 x .148 x 1/4-20

$4.49

$

In Stock, Qty 14

0

7

MTD 747-05327B-0637

Auger Bail
(Superseded to 747-05327C-0637)

Note: Model 2T5

$16.99

$

In Stock, only 1 left!

0

7

MTD 747-05490-0637

Auger Bail
(Superseded to 747-05490A-0637)

$14.99

$

Usually ships in 3-6 days

0

8

MTD 749-04703B-0637

Upper Handle
(Superseded to 749-04703D-0637)

Note: Model 2T5

$46.99

$

Usually ships in 3-6 days

0

8

MTD 749-04808-0637

Upper Handle

$26.99

$

In Stock, only 1 left!

0

9

MTD 731-08347

Top Cover (Black w/o electric start)

$

$

Currently unavailable

9

MTD 731-08352

Top Cover (Gray)
(Superseded to 753-06901C)

Note: Model with electric start

$64.99

$

In Stock, only 1 left!

0

9

MTD 731-08339

Top Cover (Black)
(Superseded to 753-06901C)

Note: Model with electric start

$64.99

$

In Stock, only 1 left!

0

10

MTD 710-0599

Hex Screw, 1/4-14 x .500

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0895

Screw, Hi-Lo:1/4-15, 0.75

$6.49

$

In Stock, Qty 5

0

12

MTD 925-04031A

Ignition Switch Assembly
(Superseded to 951-10637)

$14.99

$

In Stock, only 1 left!

0

12

MTD 951-10630

Key

$6.99

$

In Stock, Qty 7

0

13

MTD 710-05108

Hex Washer Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

14

MTD 931-07626A

Chute Adapter
(Superseded to 931-07626B)

$42.99

$

Usually ships in 3-6 days

0

15

MTD 731-08274

Chute Ring

$13.99

$

In Stock, only 1 left!

0

16

MTD 932-04111

Chute Adjustment Spring

$4.99

$

In Stock, Qty 6

0

17

MTD 736-04576

Flat Washer, .28 x 1.5 x .066

$3.99

$

Usually ships in 3-6 days

0

18

MTD 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 4 left!

0

21

MTD 731-07644

Chute Handle

$25.99

$

In Stock, only 1 left!

0

22

MTD 931-07753A

Lower Chute

$35.99

$

Usually ships in 3-6 days

0

23

MTD 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

Note: Model with electric start

$6.99

$

In Stock, Qty 7

0
