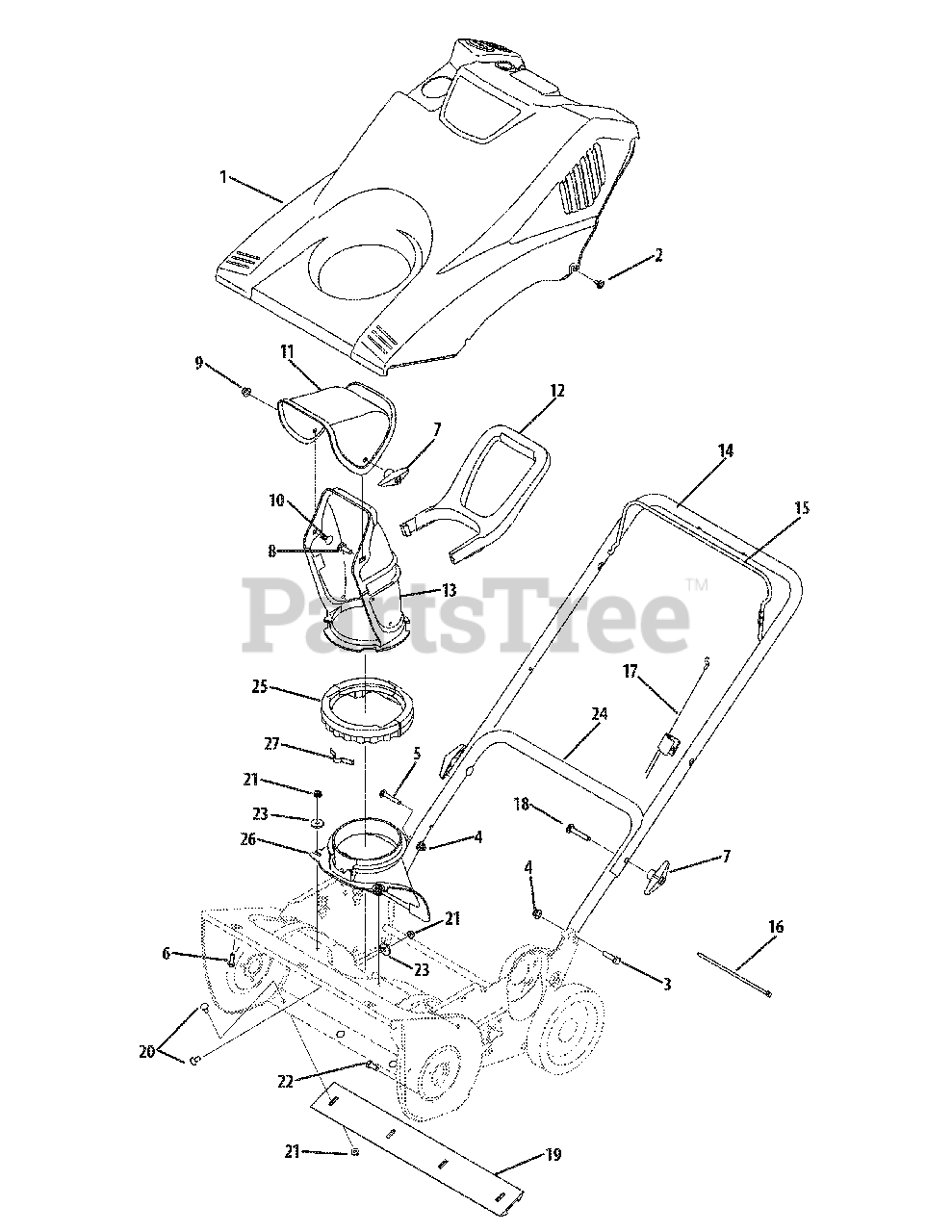

31A-2M1A729 - Yard Machines Snow Thrower (2008) (Home Depot) General Assembly Parts Diagram

Snow Thrower

General Assembly Parts Diagram

  • Title
1

MTD 684-04236A

Shroud
(Superseded to 753-06906)

$105.99

$

Usually ships in 3-6 days

0

1

MTD 728-04006

Grommet, Electric Start

Note: Not shown, If equipped

$3.49

$

Usually ships in 3-6 days

0

1

MTD 925-04031A

Switch, Ignition
(Superseded to 951-10637)

Note: Not shown, with key

$14.99

$

In Stock, Qty 8

0

1

MTD 731-05632

Key
(Superseded to 951-10630)

Note: Not shown

$6.99

$

Usually ships in 3-6 days

0

2

MTD 710-04669

Hex Screw, 10-16 x .625

$3.49

$

In Stock, Qty 20+

0

3

MTD 710-1090

Hex Flange Screw, 5/16-18 x 1.25

$3.99

$

Usually ships in 3-6 days

0

4

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

5

MTD 710-1882

Hex Flange Screw, 5/16-18 x 1.50

$4.49

$

Usually ships in 3-6 days

0

6

MTD 710-0895

Hex Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

7

MTD 720-0284

Wing Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

8

MTD 710-04071

Carriage Bolt, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 13

0

9

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

10

MTD 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

11

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

12

MTD 731-04388A

Chute Handle

$26.99

$

Usually ships in 3-6 days

0

13

MTD 731-04127

Lower Chute
(Superseded to 931-04127)

$33.99

$

Usually ships in 3-6 days

0

14

MTD 749-04459-0637

Upper Handle

$39.99

$

Usually ships in 3-6 days

0

15

MTD 747-04165-0637

Bail Control

$13.99

$

In Stock, Qty 5

0

16

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

17

MTD 746-04237

Clutch Cable
(Superseded to 946-04237)

$24.99

$

Usually ships in 3-6 days

0

18

MTD 710-04532

Carriage Bolt, 5/16-18 x 2.00

$6.49

$

In Stock, Qty 5

0

19

MTD 731-1033

Shave Plate, 21"

$47.99

$

In Stock, Qty 14

0

20

MTD 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

22

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0176

Flat Washer, .265 x .938 x .120

$4.99

$

In Stock, only 4 left!

0

24

MTD 749-04114

Lower Handle
(Superseded to 749-04114B)

Variations

MTD 749-04114-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04114-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

25

MTD 731-04353

Lower Chute Ring
(Superseded to 931-04353)

$18.99

$

In Stock, Qty 5

0

26

MTD 731-04886

Chute Adapter
(Superseded to 931-04886)

$20.99

$

Usually ships in 3-6 days

0

27

MTD 732-04111

Chute Adjustment Spring
(Superseded to 932-04111)

$4.99

$

In Stock, Qty 20+

0
