31A-261-718 - MTD Pro Snow Thrower (2005-2) General Assembly Parts Diagram

Pro Snow Thrower

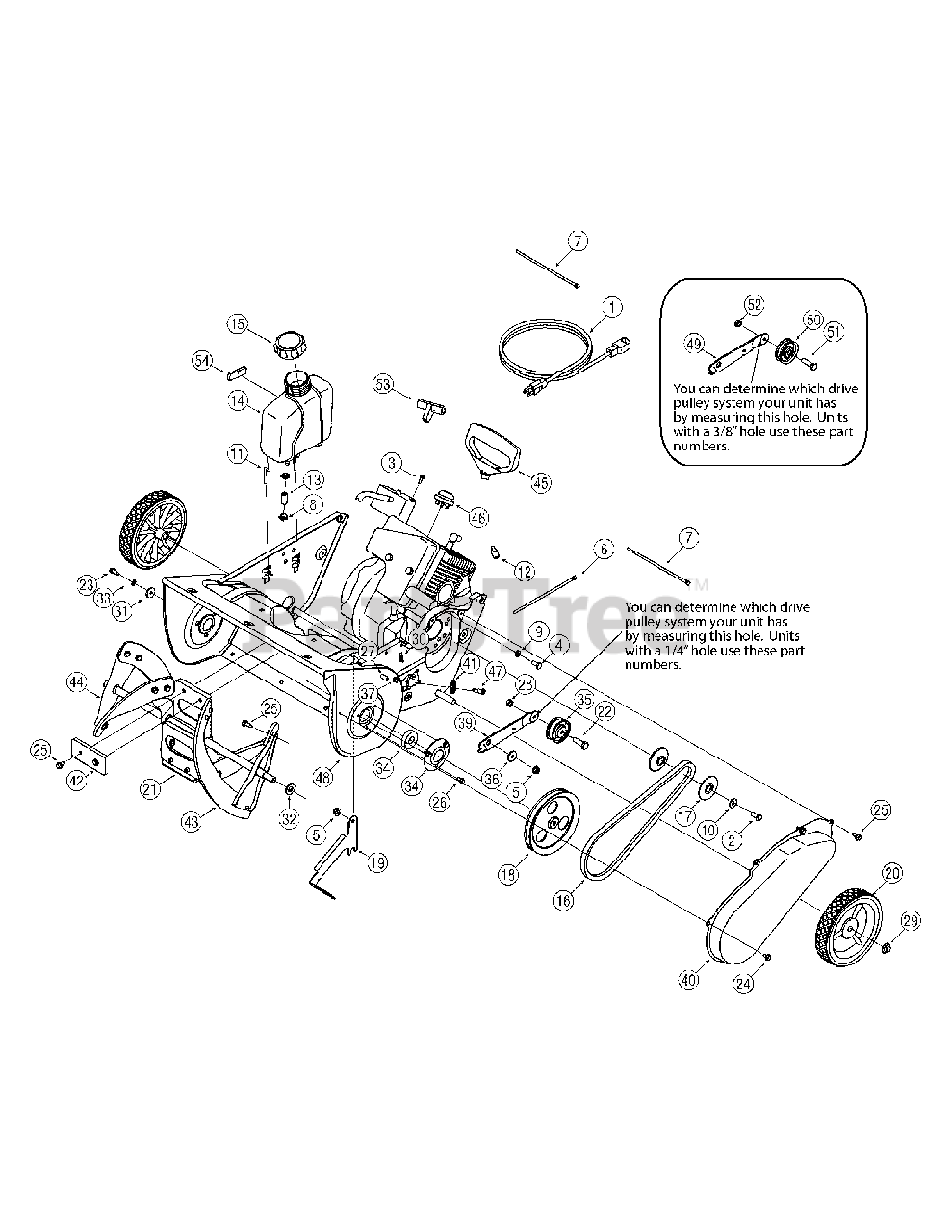

General Assembly Parts Diagram

  • Title

1

MTD 629-0236

Extension Cord

$

$

Not available

2

MTD 710-0627

Hex Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1003

Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

4

MTD 710-3025

Hex Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

5

MTD 712-04063

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 725-0157

Push Mount Cable Tie

$3.99

$

In Stock, Qty 20+

0

7

MTD 926-0154

Push Mount Cable Tie

$6.49

$

Usually ships in 3-6 days

0

8

MTD 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

9

MTD 936-0119

Washer, Lock 5/16

$4.99

$

In Stock, Qty 20+

0

10

MTD 936-0159

Flat Washer .349 x .879 x.063
(Superseded to 736-0159)

$

$

Not available

11

MTD 747-04150

Gas Tank Support Wire

$

$

Not available

12

MTD TC-35511

Choke Lever Knob

$1.99

$

Usually ships in 3-12 days

0

13

MTD 751-10349-22

Hose, Fuel Line

$25.99

$

Usually ships in 3-6 days

0

14

MTD 951-10023

Tank, Fuel

$

$

Not available

15

MTD 751-10487

Cap, Fuel
(Superseded to 751-10487C)

$16.99

$

In Stock, Qty 5

0

16

MTD 954-0101A

V-Belt, 1/2

$28.99

$

In Stock, Qty 20+

0

17

MTD 956-0416B

Pulley Half, .625 ID x 2.25 OD

$10.99

$

In Stock, only 2 left!

0

18

MTD 756-0475

Pulley, 1/2 V 1/2-20 LH x 6.0

$79.99

$

Usually ships in 3-6 days

0

19

MTD 790-00225-0637

2-Cycle Mounting Bracket

$

$

Not available

20

MTD 734-04070

Wheel, 7 x 1.61 Dia. Tread

$18.99

$

Usually ships in 3-6 days

0

21

MTD 984-04027A

Auger Assembly Complete

$196.99

$

In Stock, Qty 10

0

22

MTD 710-0106

Hex Screw, 1/4-20 x 1.00 Gr. 5

$3.99

$

In Stock, Qty 12

0

23

MTD 710-0642

Hex Screw 1/4-20 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0653

Self-tapping Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

25

MTD 710-0896

Hex Screw, 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-0599

Self-tapping Screw, 1/4-14 x .50

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-3008

Hex Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-04064

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

29

MTD 726-0299

Push Cap, 1/2"

$8.49

$

In Stock, Qty 20+

0

30

MTD 932-0357A

Extension Spring
(Superseded to 732-0357A)

$4.49

$

In Stock, Qty 13

0

31

MTD 936-0176

Flat Washer .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 3 left!

0

32

MTD 936-0326

Flat Washer .510 x 1.0 x .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

33

MTD 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 9

0

34

MTD 941-0600

Ball Bearing 17 x 40 x 12

$25.99

$

In Stock, Qty 20+

0

35

MTD 684-04168

Idler Pulley (Pulley hole 1/4")

$38.99

$

Usually ships in 3-6 days

0

36

MTD 748-0234

Shoulder Spacer .25

$4.49

$

In Stock, Qty 20+

0

37

MTD 712-0896

Hex Lock Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

38

MTD 784-5174-0637

Bearing Cup

$

$

Not available

39

MTD 790-00238A-0637

Idler Brkt. w/Brake (Pulley hole 1/4")

$10.99

$

Usually ships in 3-6 days

0

40

MTD 790-00045

Belt Cover
(Superseded to 790-00045C)

Variations

MTD 790-00045-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

MTD 790-00045-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 790-00045-0662

COVER-BELT SINGLE - OYSTER GRAY (0662)

$

$

Not available

MTD 790-00045-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 790-00045-0709

COVER-BELT SINGLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$46.99

$

Usually ships in 3-6 days

0

41

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 11

0

42

MTD 735-04033

Rubber Paddle

$8.49

$

In Stock, Qty 20+

0

43

MTD 735-04032

Crescent Spiral

$18.99

$

In Stock, Qty 20+

0

44

MTD 984-04027A

Auger Axle

$196.99

$

In Stock, Qty 10

0

45

MTD 7510009636

Recoil Handle, Mitten (Optional)

$

$

Not available

46

MTD TC-570682A

Primer

$10.99

$

In Stock, Qty 5

0

47

MTD 738-0924A

Carriage Screw 1/4-28

$6.99

$

In Stock, Qty 5

0

48

MTD 684-04167

Auger Assembly Housing 21"

Variations

MTD 684-04167-0665

HOUSING ASM:AUGER - YARDMAN GREEN (0665)

$168.99

$

Usually ships in 3-6 days

0

MTD 684-04167-0638

No Longer Available HOUSING ASM:AUGER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04167-0650

No Longer Available HOUSING AS - RED METALLIC (0650)

$

$

Not available

MTD 684-04167-0668

No Longer Available HOUSING AS - MOSS GREEN (0668)

$

$

Not available

MTD 684-04167-0691

HOUSING ASM:AUGER - BLACK JACK (0691)

$

$

Not available

MTD 684-04167-0709

No Longer Available HOUSING ASM:AUGER - MASTERCRAFT GREEN (0709)

$

$

Not available

$146.99

$

Usually ships in 3-6 days

0

49

MTD 790-00238A-0637

Idler Brkt. w/ Brake (Pulley hole 3/8")

$10.99

$

Usually ships in 3-6 days

0

50

MTD 756-0313

Idler Pulley (3/8" hole)

$26.99

$

In Stock, only 4 left!

0

51

MTD 710-0191

Hex Screw 3/8-24 x 1.25

$4.99

$

In Stock, Qty 9

0

52

MTD 912-0116

Jam Lock Nut 3/8--24
(Superseded to 712-0116)

$

$

Not available

52

MTD 912-0116

Jam Lock Nut 3/8--24
(Superseded to 712-0116)

$

$

Not available

53

MTD 7510009630

Recoil Handle (Optional)

$

$

Not available

54

MTD 722-3022-12

Foam Tape .625 X.25
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0
