31A-261-718 - MTD Pro Snow Thrower (2005-2) Chute & Handle Assembly Parts Diagram

Pro Snow Thrower

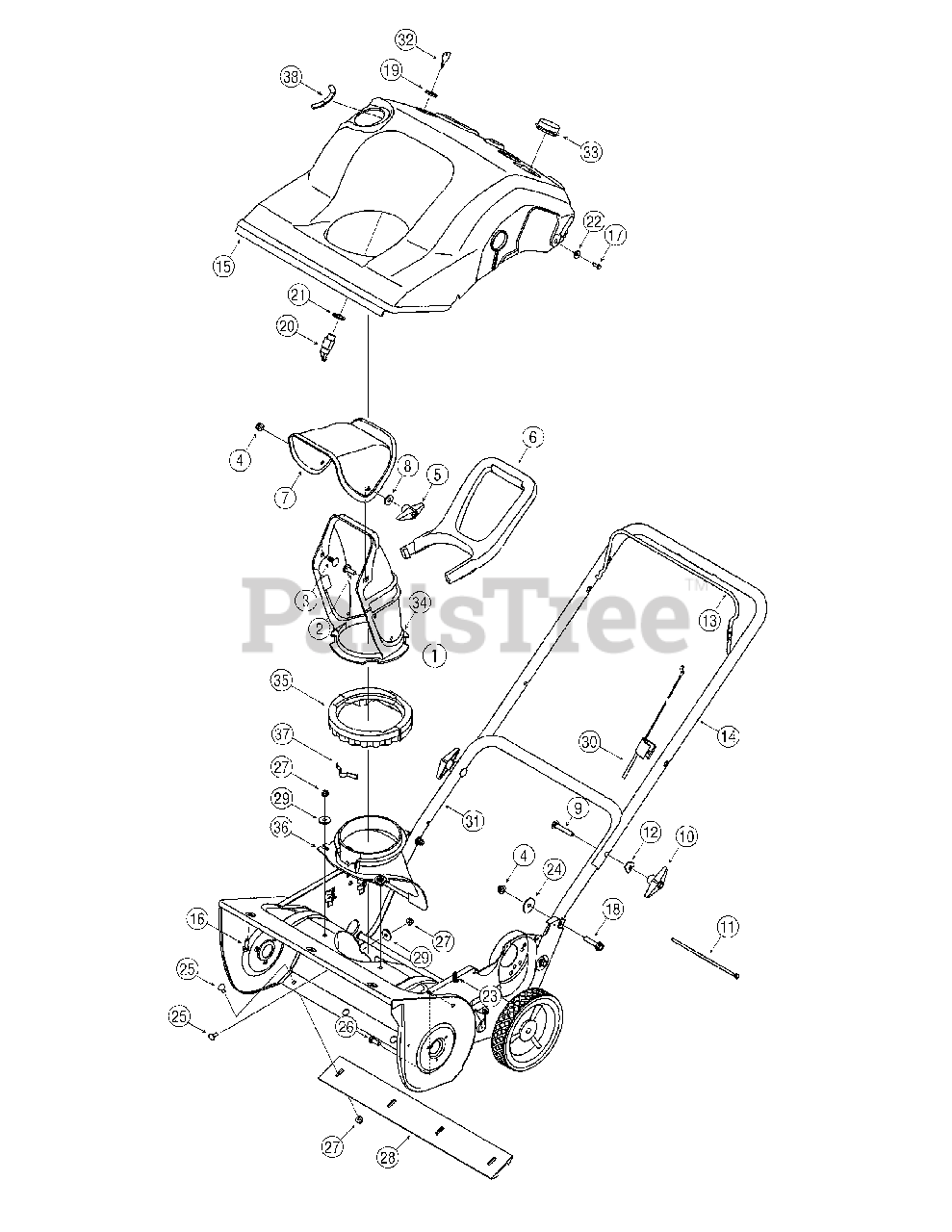

Chute & Handle Assembly Parts Diagram

  • Title

1

MTD 984-04127

Chute Assembly

$65.99

$

Usually ships in 3-6 days

0

2

MTD 710-04071

Carriage Bolt 5/16-18 x 1.0"

$4.49

$

In Stock, Qty 15

0

3

MTD 710-0451

Carriage Bolt 5/16-18 x 0.750"

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

MTD 920-0284

Chute Knob Assembly
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

6

MTD 731-04388A

Chute Handle

$26.99

$

Usually ships in 3-6 days

0

7

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 4 left!

0

8

MTD 936-0159

Washer
(Superseded to 736-0159)

$

$

Not available

9

MTD 710-0487

Carriage Bolt 5/16-18 x 2.0 Gr. 1

$7.49

$

Usually ships in 3-6 days

0

10

MTD 920-0284

Handle Knob Assembly 5/16-18
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

11

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

12

MTD 936-0451

Saddle Washer .320 x .93
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

13

MTD 747-04165-0637

Bail, Gull Wing

$13.99

$

In Stock, only 4 left!

0

14

MTD 749-1092A

Upper Handle, Gull Wing

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

15

MTD 984-04044

Shroud Assembly 2 Cyc. 4.5hp.

$

$

Not available

16

MTD 710-04187

Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

17

MTD 710-1003

Self-tapping Screw, #10-16 x .625"
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 10

0

18

MTD 710-1882

Hex Flange Screw 5/16-18 x 1.50 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

19

MTD 712-0252

Hex Nut 5/8-32 x .12 Special

$5.99

$

Usually ships in 3-6 days

0

20

MTD 925-2018

Key Switch-Electric Start

$

$

Not available

21

MTD 736-0225

Lock Washer Internal .625 x 1.058

$4.49

$

In Stock, only 2 left!

0

22

MTD 936-0400

Flat Washer .194" x .62" x .063
(Superseded to 736-0400)

$

$

Not available

23

MTD 932-0357A

Extension Spring
(Superseded to 732-0357A)

$4.49

$

In Stock, Qty 13

0

24

MTD 736-0362

Flat Washer .330 x 1.25 x .06

$4.49

$

In Stock, Qty 8

0

25

MTD 710-0134

Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-3008

Truss Machine Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

27

MTD 712-04064

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

28

MTD 731-1033

Shave Plate,19.88

$47.99

$

In Stock, Qty 14

0

29

MTD 936-0176

Flat Washer .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

30

MTD 946-04237

Control Cable

$24.99

$

In Stock, only 1 left!

0

31

MTD 749-04114

Lower Handle
(Superseded to 749-04114B)

Variations

MTD 749-04114-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04114-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

32

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

33

MTD 731-1133C

Spark Plug Cover

$

$

Not available

34

MTD 931-04127

Lower Chute 5" Dia

$33.99

$

Usually ships in 3-6 days

0

35

MTD 931-04353

Ring-Lower Chute

$18.99

$

Usually ships in 3-6 days

0

36

MTD 931-04886

Chute, Adapter 5" Dia

$20.99

$

Usually ships in 3-6 days

0

37

MTD 932-04111

Chute Adjustment Spring

$4.99

$

In Stock, only 3 left!

0

38

MTD 731-0511

Strip Trim

$3.99

$

Usually ships in 3-6 days

0
