31A-240-762 - Yard Machines Snow Thrower (2006) (Lowes) Drive Assembly Parts Diagram

Snow Thrower

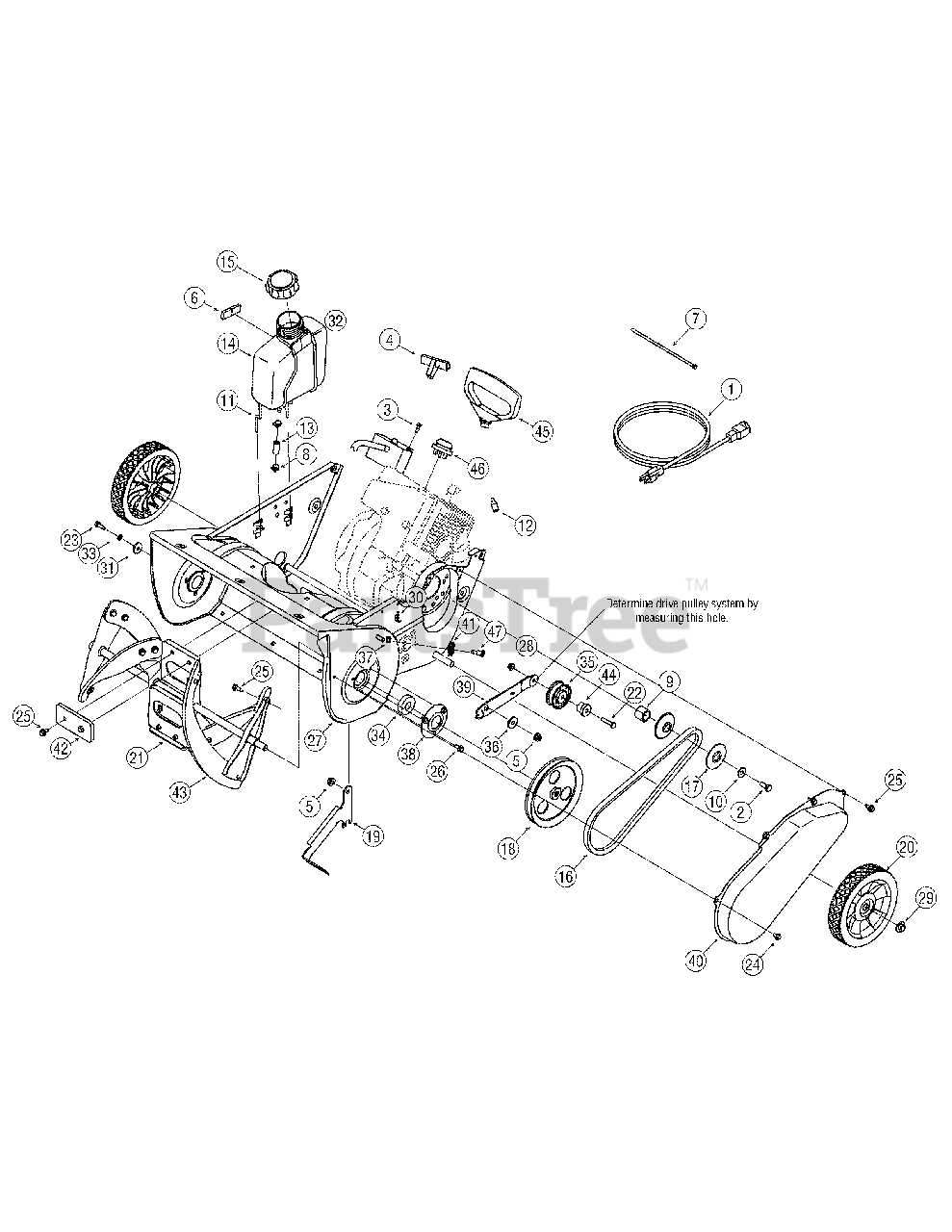

Drive Assembly Parts Diagram

  • Title

1

MTD 629-0236

Extension Cord

Note: If Equipped

$

$

Not available

2

MTD 710-0627

Hex Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-1003

Screw, #10-16 x .625
(Superseded to 710-04669)

Note: If Equipped

$3.49

$

In Stock, Qty 20+

0

4

MTD 7510009630

Recoil Handle

$

$

Not available

5

MTD 712-04063

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 722-3022

Foam Tape .625 X.25
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0

7

MTD 726-0154

Push Mount Cable Tie
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

8

MTD 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

9

MTD 750-0716A

Spcr., .630 x .880 x .747

$

$

Not available

10

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

11

MTD 747-04150

Gas Tank Support Wire

$

$

Not available

12

MTD 7511825510

Choke Lever Knob
(Superseded to TC-35511)

$1.99

$

Usually ships in 3-12 days

0

13

MTD 751-0535

Hose, Fuel Line

$

$

Currently unavailable

14

MTD 751-10023

Tank, Fuel
(Superseded to 951-10023)

$

$

Not available

15

MTD 751-10278

Cap, Fuel
(Superseded to 751-10487C)

$16.99

$

In Stock, Qty 5

0

16

MTD 754-0367

V-Belt, 3/8 x 34.4 Lg.
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

17

MTD 756-0416B

Pulley Half, .625 ID x 2.25 OD
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

18

MTD 756-04243

Pulley, V Type, 3/8 x 6.0 OD

$

$

Not available

19

MTD 790-00225

2-Cycle Mounting Bracket
(Superseded to 790-00225-0637)

Variations

MTD 790-00225-0637

BRACKET:ENGINE 2 - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 734-04070

Wheel, 7 x 1.61 Dia. Tread

$18.99

$

Usually ships in 3-6 days

0

20

MTD 734-04225

Wheel, 7 x 1.5 Dia. Tread
(Superseded to 734-04070)

$18.99

$

Usually ships in 3-6 days

0

21

MTD 684-04228

Auger Assembly Complete
(Superseded to 984-04253-0637)

$160.99

$

In Stock, only 1 left!

0

22

MTD 710-0106

Hex Screw, 1/4-20 x 1.00 Gr. 5

Note: Pulley Hole 1/4 inch

$3.99

$

In Stock, Qty 12

0

22

MTD 710-0191

Hex Screw 3/8-24 x 1.25

Note: Pulley Hole 3/8 inch

$4.99

$

In Stock, Qty 9

0

23

MTD 710-0642

Hex Screw 1/4-20 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0653

Self-tapping Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

25

MTD 710-0896

Hex Screw, 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-0352

Screw, 1/4-14 x .375

$4.99

$

Usually ships in 3-6 days

0

27

MTD 684-04227

Auger Assembly Housing 21"

Variations

MTD 684-04227-0691

HOUSING ASM:AUGER: - BLACK JACK (0691)

$140.99

$

Usually ships in 3-6 days

0

MTD 684-04227-0667

HOUSING ASM:AUGER: - MIDNIGHT BLUE (0667)

$121.99

$

In Stock, only 1 left!

0

MTD 684-04227-0721

HOUSING ASM:AUGER: - SEARS RED (0721)

$161.99

$

Usually ships in 3-6 days

0

MTD 684-04227-4044

HOUSING ASM:AUGER: - CRAFTSMAN RED (4044)

$161.99

$

Usually ships in 3-6 days

0

MTD 684-04227-0606

HOUSING ASM:AUGER: - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 684-04227-0638

HOUSING ASM:AUGER: - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04227-0665

HOUSING ASM:AUGER: - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04227-0684

HOUSING ASM:AUGER: - ZINC YELLOW (0684)

$

$

Not available

MTD 684-04227-0709

HOUSING ASM:AUGER: - MASTERCRAFT GREEN (0709)

$

$

Not available

$140.99

$

Usually ships in 3-6 days

0

28

MTD 712-04064

Hex Flange Lock Nut, 1/4-20

Note: Pulley Hole 1/4 inch

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-0116

Jam Lock Nut 3/8--24

Note: Pulley Hole 3/8 inch

$4.99

$

In Stock, Qty 6

0

29

MTD 726-0299

Push Cap, 1/2"

$8.49

$

In Stock, Qty 20+

0

30

MTD 732-0357A

Extension Spring

$4.49

$

In Stock, Qty 13

0

31

MTD 736-0176

Flat Washer .265 x .938 x .120

$4.99

$

In Stock, only 4 left!

0

32

MTD 721-04006

Fuel Tank Gasket

$

$

Not available

33

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

34

MTD 741-04188

Ball Bearing
(Superseded to 741-04188A)

$12.99

$

In Stock, only 2 left!

0

35

MTD 684-04168

Idler Pulley

Note: Pulley Hole 1/4 inch

$38.99

$

Usually ships in 3-6 days

0

35

MTD 756-0313

Idler Pulley

Note: Pulley Hole 3/8 inch

$26.99

$

In Stock, only 4 left!

0

36

MTD 748-0234

Shoulder Spacer .25

$4.49

$

In Stock, Qty 20+

0

37

MTD 712-0896

Hex Lock Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

38

MTD 790-00249

Bearing Cup
(Superseded to 790-00249-0637)

Variations

MTD 790-00249-0637

Bearing Cup, Single - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

39

MTD 790-00283

Idler Brkt. w/Brake
(Superseded to 790-00283-0637)

Note: Pulley Hole 1/4 inch

Variations

MTD 790-00283-0637

BRACKET:IDLER SINGLE - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 790-00238

Idler Brkt. w/ Brake
(Superseded to 790-00238A-0637)

Note: Pulley Hole 3/8 inch

$10.99

$

Usually ships in 3-6 days

0

40

MTD 790-00045A

Belt Cover
(Superseded to 790-00045C)

Variations

MTD 790-00045A-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 790-00045A-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

MTD 790-00045A-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 790-00045A-0662

COVER-BELT SINGLE - OYSTER GRAY (0662)

$

$

Not available

MTD 790-00045A-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 790-00045A-0684

COVER-BELT SINGLE - ZINC YELLOW (0684)

$

$

Not available

MTD 790-00045A-0709

COVER-BELT SINGLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$46.99

$

Usually ships in 3-6 days

0

41

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 11

0

42

MTD 735-04033

Rubber Paddle

$8.49

$

In Stock, Qty 20+

0

43

MTD 735-04032

Crescent Spiral

$18.99

$

In Stock, Qty 20+

0

44

MTD 750-04571

Shldr., Spcr., .260 x .785 x .538

$6.99

$

In Stock, only 2 left!

0

45

MTD 7510009636

Recoil Handle, Mitten

Note: If Equipped

$

$

Not available

46

MTD 7512B1476

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 5

0

47

MTD 738-0924A

Carriage Screw 1/4-28

$6.99

$

In Stock, Qty 5

0
