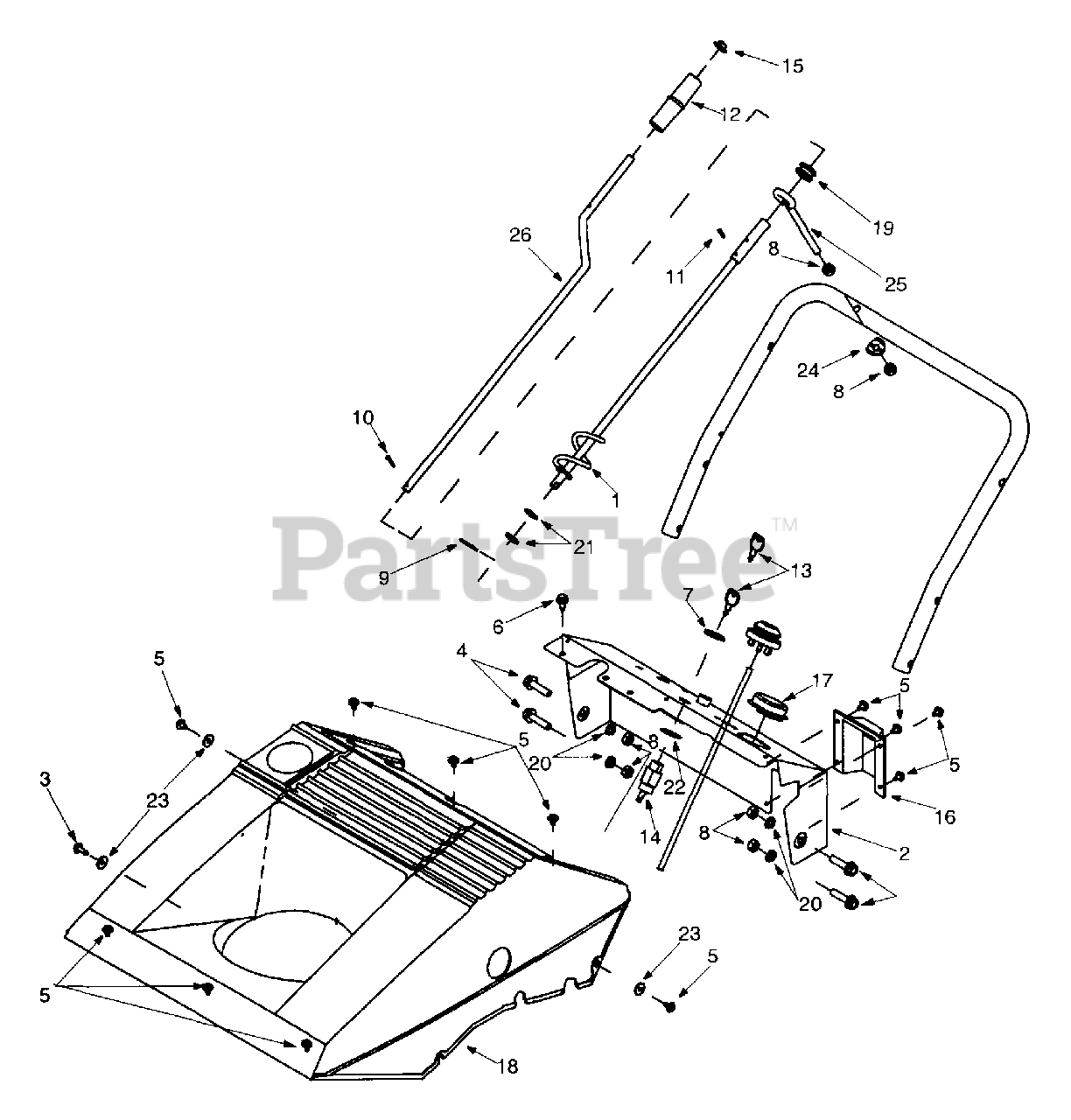

31A-150-022 - Lawn Chief 21" Snow Thrower (2001) (Cotter & Company) Chute, Crank And Dash Parts Diagram

21" Snow Thrower

Chute, Crank And Dash Parts Diagram

  • Title
1

MTD 684-0126

Chute Crank Assembly
(Superseded to 684-0126-0637)

Variations

MTD 684-0126-0637

CRANK-CHUTE LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 684-0160

Dash Assembly

Variations

MTD 684-0160-0483

No Longer Available PANEL ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0160-0638

No Longer Available PANEL ASM- - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0160-0665

No Longer Available PANEL ASM- - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0160-0684

No Longer Available PANEL ASM- - ZINC YELLOW (0684)

$

$

Not available

MTD 684-0160-0691

No Longer Available PANEL ASM- - BLACK JACK (0691)

$

$

Not available

MTD 684-0160-0709

No Longer Available PANEL ASM- - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

3

MTD 710-1003

Special Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

4

MTD 710-1090

Hex Flange Screw

$3.99

$

Usually ships in 3-6 days

0

5

MTD 710-1268

Special Screw

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1652

Self-Tapping Screw

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0252

Jam Nut

$5.99

$

Usually ships in 3-6 days

0

8

MTD 712-3010

Hex Nut: 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

10

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

11

MTD 715-0138

Roll Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

12

$10.99

$

In Stock, Qty 5

0

13

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

Usually ships in 3-6 days

0

14

MTD 725-1425

Key Switch
(Superseded to 925-1425)

$35.99

$

In Stock, Qty 6

0

15

MTD 726-0100

Push Cap

$4.49

$

In Stock, Qty 18

0

16

MTD 731-1089A

Choke Cover

$

$

Not available

17

MTD 731-1133B

Cap
(Superseded to 731-1133C)

$

$

Not available

18

MTD 731-1988

Shroud: 21" Yellow

$

$

Not available

MTD 731-1087

Shroud: 21" Black

$

$

Not available

19

MTD 735-0234

Rubber Grommet

$5.49

$

In Stock, only 2 left!

0

20

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

MTD 736-0185

Flat Washer

$3.99

$

In Stock, Qty 20+

0

22

MTD 736-0225

Internal Lock Washer

$4.49

$

In Stock, only 2 left!

0

23

MTD 736-0400

Flat Washer

$5.49

$

In Stock, Qty 11

0

24

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 7

0

25

MTD 747-0697

Eye Bolt

$8.49

$

In Stock, only 1 left!

0

26

MTD 747-0737

Upper Chute Crank
(Superseded to 747-0737-0637)

Variations

MTD 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

?27

MTD 750-0785

Spacer
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0
