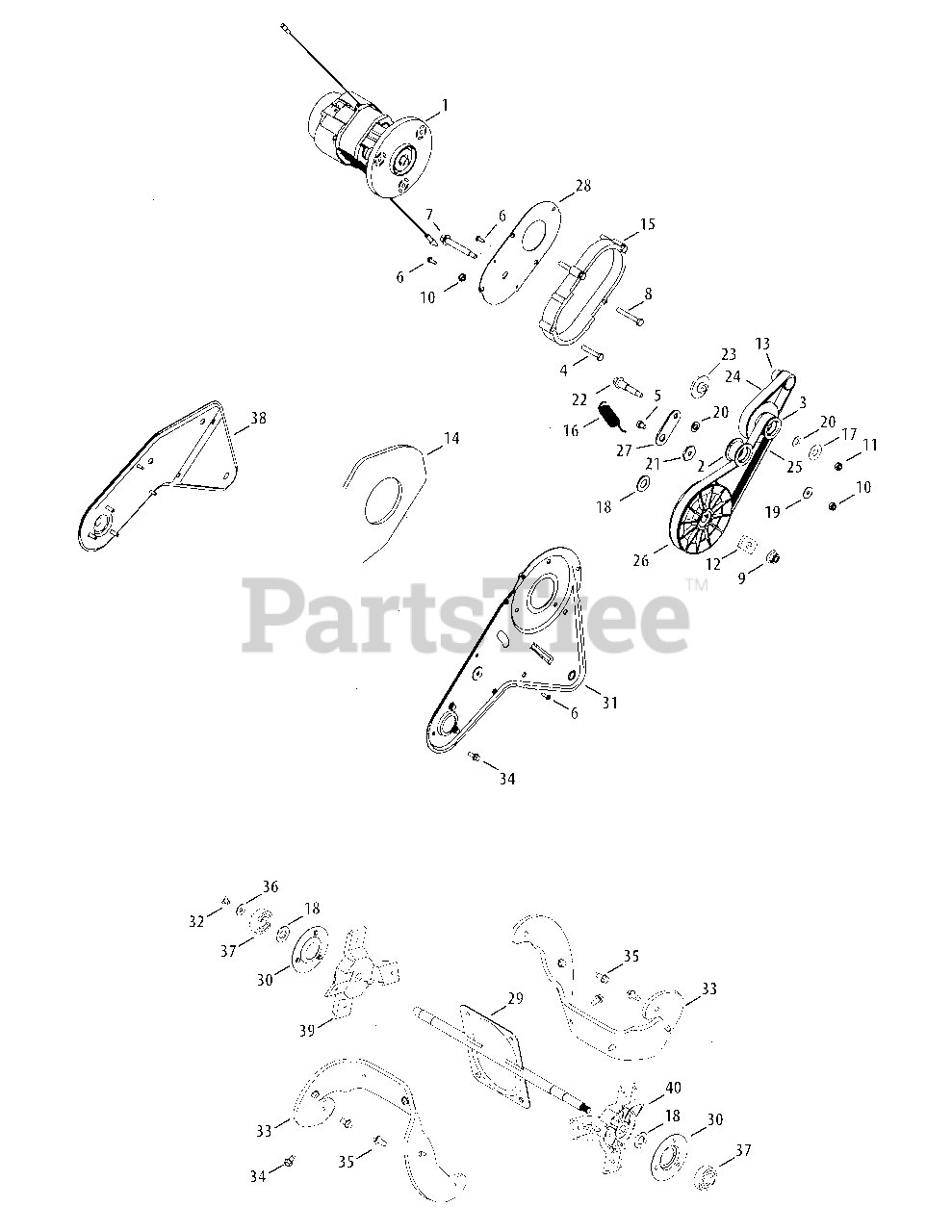

31A-050-706 - MTD Snow Thrower (2011) Motor & Auger Parts Diagram

Snow Thrower

Motor & Auger Parts Diagram

  • Title

1

MTD 924-04037

Motor Assembly (Incl. Ref 13)

$149.99

$

Usually ships in 3-6 days

0

2

MTD 931-04505

Pulley Assembly, Idler

$12.99

$

Usually ships in 3-6 days

0

3

MTD 656-04060AP

Pulley Assembly
(Superseded to 656-04060P)

$21.99

$

In Stock, only 1 left!

0

4

MTD 710-04197

Screw, M6-1, 35.00

$3.99

$

Usually ships in 3-6 days

0

5

MTD 710-05132

Screw, Hex Screw, M6 x 8mm

$3.99

$

Usually ships in 3-6 days

0

6

MTD 710-05137

Screw, Tap, M4.2 x 1.4 x 13

$3.99

$

Usually ships in 3-6 days

0

7

MTD 710-05187A

Screw, Hex Flange, M8-1.25, 60mm

$3.49

$

Usually ships in 3-6 days

0

8

MTD 710-1391

Screw, M6-1, 45.00

$3.49

$

Usually ships in 3-6 days

0

9

MTD 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

10

MTD 912-0691

Nut, Hex Lock, M6-1
(Superseded to 712-0691)

$

$

Not available

11

MTD 712-0692

Nut, Hex Lock, M8-1.25, Nylon

$6.99

$

In Stock, only 2 left!

0

12

MTD 790-00472

Plate, Drive Pulley

$5.99

$

Usually ships in 3-6 days

0

13

MTD 756-04455A

Pulley, 5mm, 15 Tooth

$7.49

$

Usually ships in 3-6 days

0

14

MTD 723-04076

Gasket, Foam

$

$

Not available

15

MTD 731-07772

Spacer, Motor Mount

$7.49

$

Usually ships in 3-6 days

0

16

MTD 732-04770

Extension Spring, Idler

$3.99

$

Usually ships in 3-6 days

0

17

MTD 936-0101

Washer, Flat, .406 x 1.0 x .030

$4.99

$

Usually ships in 3-6 days

0

18

MTD 736-04502A

Washer, Flat, M12

$3.49

$

Usually ships in 3-6 days

0

19

MTD 736-0685

Washer, Flat, 6.4 Id x 18 OD

$3.49

$

In Stock, only 1 left!

0

20

MTD 736-0700

Washer, Flat, 8.4 x 16 x 1.60

$7.49

$

Usually ships in 3-6 days

0

21

MTD 738-04446

Spacer, Shoulder, Hex, M6

$6.99

$

In Stock, only 3 left!

0

22

MTD 738-04449

Screw, Shoulder

$3.49

$

Usually ships in 3-6 days

0

23

MTD 750-05435

Spacer, 8.35 x 16 x 11.65

$7.49

$

Usually ships in 3-6 days

0

24

MTD 754-04279A

Belt, Sync

$20.99

$

In Stock, only 2 left!

0

25

MTD 754-04281A

Belt, Poly, 6 Rib

$20.99

$

In Stock, only 1 left!

0

26

MTD 756-04481

Pulley, Auger, 6 Rib

$30.99

$

Usually ships in 3-6 days

0

27

MTD 790-00418

Bracket, Idler

$

$

Not available

28

MTD 790-00425-0637

Plate, Motor Mount

$6.49

$

Usually ships in 3-6 days

0

29

MTD 684-04396

Auger Weldment

$43.99

$

Usually ships in 3-6 days

0

30

MTD 790-00446-0637

Cover, Bearing

$3.99

$

Usually ships in 3-6 days

0

31

MTD 790-00447-0637

Outer Frame, LH

$26.99

$

Usually ships in 3-6 days

0

32

MTD 710-05132

Screw, Hex Screw, M6 x 8mm

$3.99

$

Usually ships in 3-6 days

0

33

MTD 735-04273

Paddle Auger, Rubber

$14.99

$

In Stock, Qty 16

0

34

MTD 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-04065

Screw, 1/4-10 x .625

$6.49

$

In Stock, Qty 20+

0

36

MTD 736-0685

Washer, Flat, 6.4 Idx18 OD

$3.49

$

In Stock, only 1 left!

0

37

MTD 741-04466

Bearing, Ball, 12 x 37 x 12

$6.49

$

Usually ships in 3-6 days

0

38

MTD 790-00397A

Outer Frame, RH

Variations

MTD 790-00397A-0637

FRAME-RH OUTER - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

39

MTD 731-08294

Bracket, Paddle, Mount, LH
(Superseded to 753-08125)

$20.99

$

Usually ships in 3-6 days

0

40

MTD 731-08295

Bracket, Paddle, Mount, RH
(Superseded to 753-08126)

$19.99

$

Usually ships in 3-6 days

0
