31A-040-700 - Yard Machines Snow Fox Snow Thrower (2005-2) Motor/Thrower Parts Diagram

Snow Fox Snow Thrower

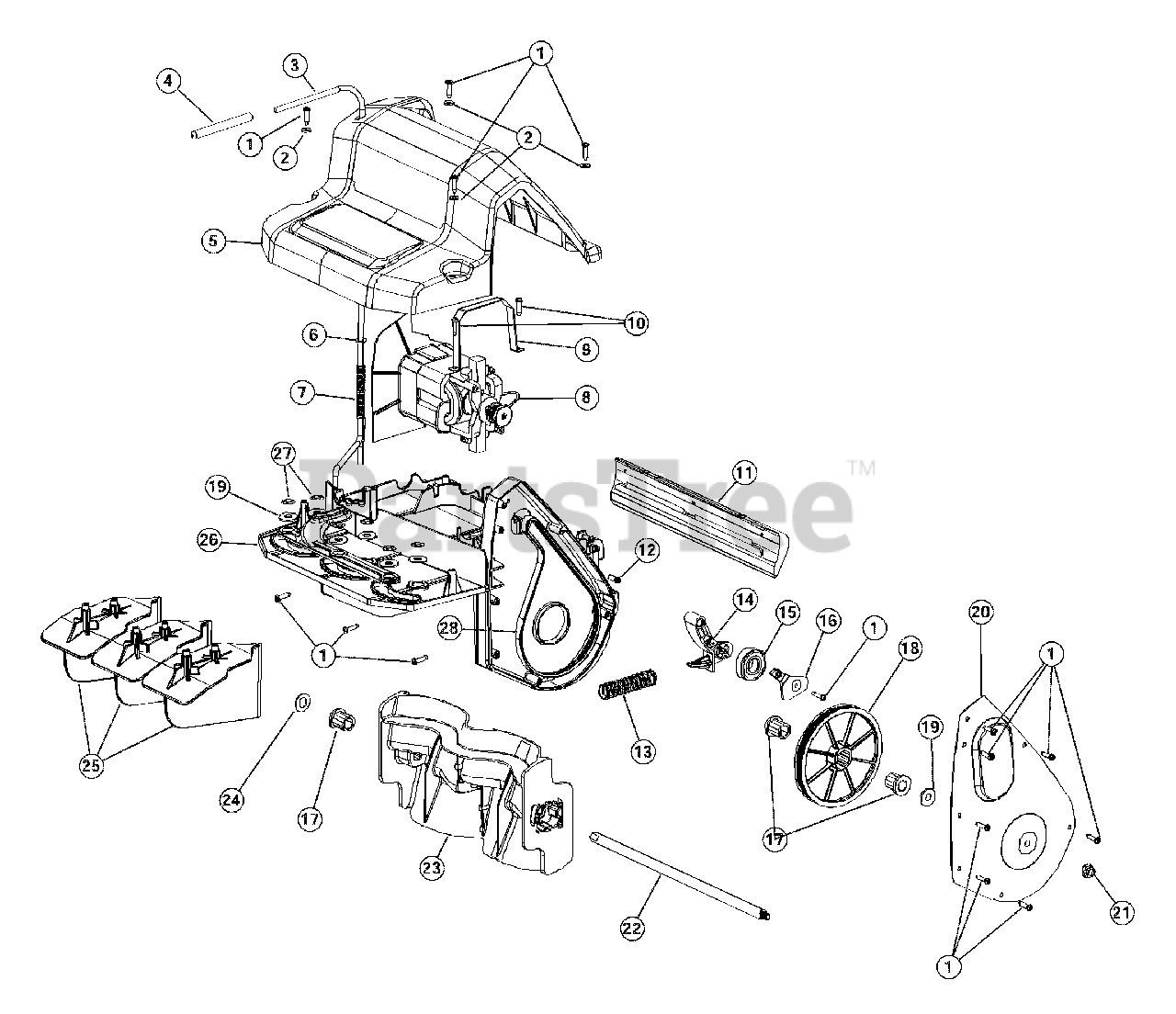

Motor/Thrower Parts Diagram

  • Title
1

$4.49

$

In Stock, Qty 20+

0

2

$4.99

$

In Stock, Qty 5

0

3

MTD 791-000012

Vane Control Handle
(Superseded to 791-00012)

Note: (includes 4)

$

$

Not available

$

$

Currently unavailable

5

$

$

Not available

6

MTD 753-04079

Washer
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

7

MTD 791-000002

Spring
(Superseded to 791-00002)

$

$

Not available

8

MTD 753-04421

Motor Assm w/Baffle, Fan & Pulley

$

$

Not available

9

MTD 753-04422

Motor Strap

$

$

Not available

10

MTD 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

11

MTD 791-00010

Scraper

$45.99

$

Usually ships in 3-6 days

0

12

$

$

Not available

13

MTD 791-00015

Spring

$

$

Not available

14

MTD 791-00016

Idler Arm

$

$

Not available

15

MTD 753-04081

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

16

MTD 791-00017

Keeper

$

$

Not available

17

MTD 753-04082

Flange Bearing
(Superseded to 741-0503)

$3.49

$

Usually ships in 3-6 days

0

18

MTD 791-00018

Driven Pulley

$

$

Not available

19

MTD 753-04080

Washer
(Superseded to 936-0159)

$

$

Not available

20

MTD 753-04443

Bert Case Cover

$

$

Not available

21

MTD 753-04056

Flange Lock Nut
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

22

MTD 791-00022

Axle Auger

$

$

Not available

23

$

$

Not available

24

$7.99

$

Usually ships in 3-6 days

0

25

MTD 753-04424

Vane
(Superseded to 791-00020)

$

$

Not available

26

MTD 753-04425

Snow Thrower Housing

$

$

Not available

27

MTD 791-00013

Push Nut

$

$

Not available

28

MTD 791-00014

Drive Belt

$36.99

$

Usually ships in 3-6 days

0
