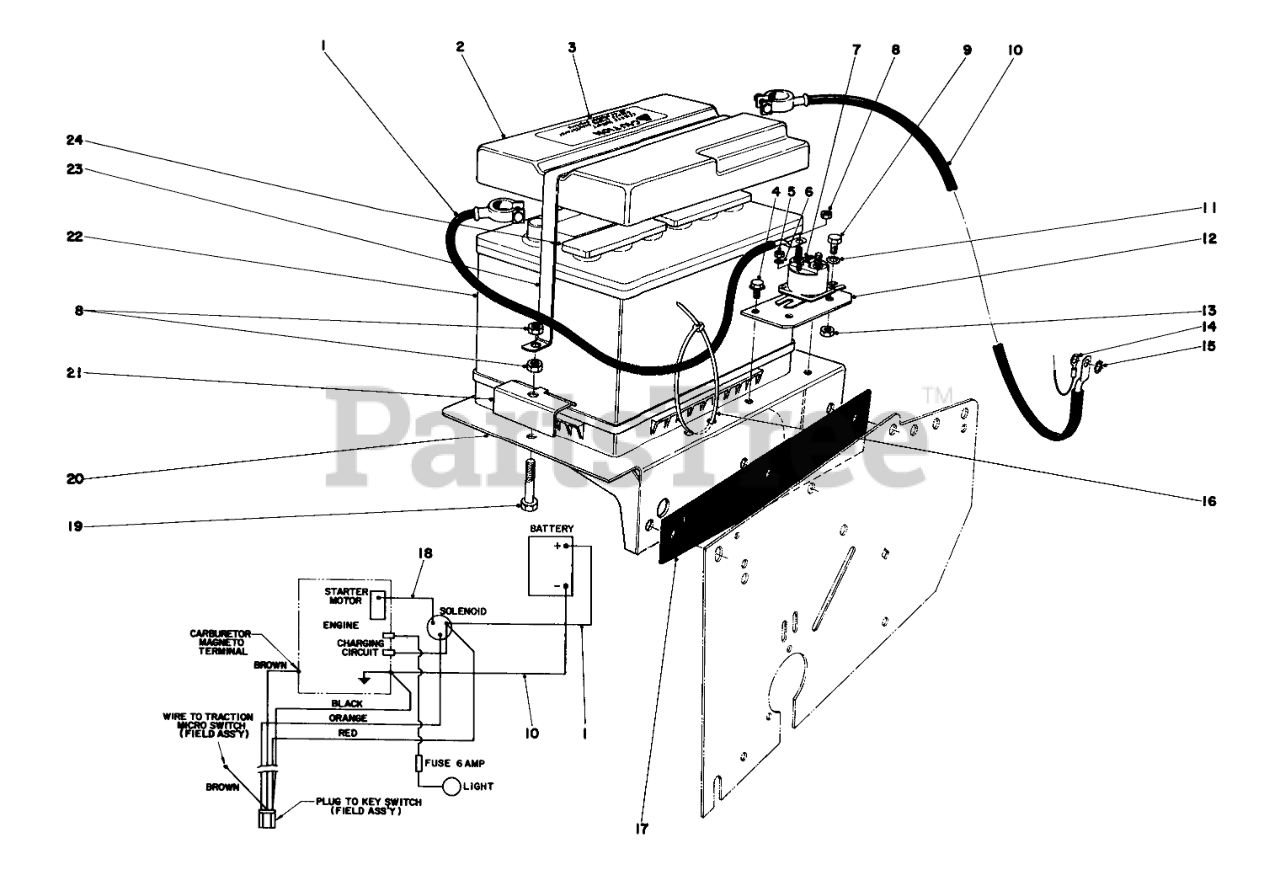

31995 (1032) - Toro 32" Snow Thrower (SN: 006000001 - 006999999) (1976) BATTERY AND WIRING DIAGRAM Parts Diagram

32" Snow Thrower

BATTERY AND WIRING DIAGRAM Parts Diagram

  • Title

1

Toro 22-9320

BATT-SOLENOID CABLE

$274.99

$

Usually ships in 3-6 days

0

2

Toro 6-1889

Cover Battery (Incl. Ref. #3)
(Superseded to 8-2839)

$

$

Not available

3

Toro 22-8890

Decal
(Superseded to 38-0530)

$

$

Not available

4

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

5

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

6

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

7

Toro 6-1600

SOLENOID

$

$

Not available

8

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

9

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

10

Toro 22-9330

BATT-GROUND CABLE

$

$

Not available

11

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

12

Toro 22-8880

Bracket Solenoid

$

$

Not available

13

Toro 329642

Nut

$

$

Currently unavailable

14

Toro 218475

Ring Terminal

$

$

Currently unavailable

15

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Toro 24-6150

Batery Isolation Pad

$

$

Not available

18

Toro 22-9310

STRT MTR-SOLNOID WIRE

$

$

Not available

19

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 22-8830

Battery Mounting Plate

$

$

Not available

21

Toro 22-8870

BATTERY CLAMP

$

$

Not available

22

Toro 239-17

Battery

$

$

Not available

23

Toro 22-8850

Strap Battery
(Superseded to 22-8850-03)

$103.99

$

Usually ships in 3-6 days

0

24

Toro 239-19

PUSH-ON BATTERY CAP

$

$

Currently unavailable
