31960S - MTD Snow Thrower (1985) Snow Parts Diagram

Snow Thrower

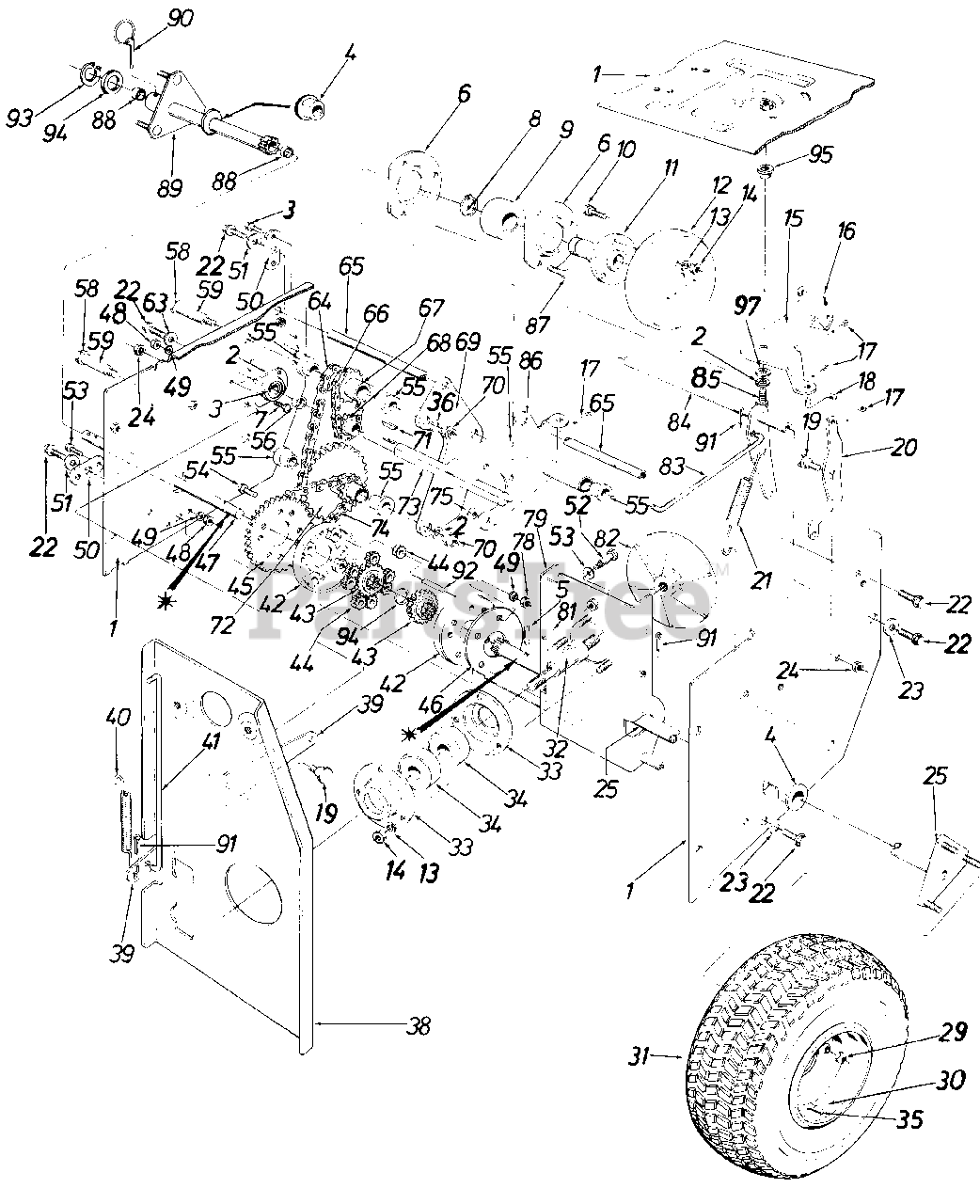

Snow Parts Diagram

  • Title

1

MTD 05487

Frame Ass'y.

$

$

Currently unavailable

2

MTD 736-0217

L-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 9

0

3

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

4

MTD 741-0244

Flange Brg. w/Flats 1.00" I.D.
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

5

MTD 715-0136

H-Spring Pin Spiral 3116" Dia. x 1.25" Lg.
(Superseded to 915-0136)

$

$

Not available

7

UNKNOWN

$

$

Not available

6

MTD 05794

Bearing Housing

$

$

Not available

8

MTD 716-0102

Snap Ring 1.00" Dia.

$5.49

$

In Stock, Qty 20+

0

9

MTD 741-0301

Ball Brg. 25 mm x 52 mm x 15 mm Thk.
(Superseded to 941-0301)

$53.99

$

In Stock, only 4 left!

0

10

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

11

MTD 748-0281

Friction Wheel Adapter

$

$

Not available

12

MTD 05080

Friction Wheel Ass'y.
(Superseded to 05080AP)

$30.99

$

In Stock, Qty 12

0

13

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 712-0267

Hex Nut 5/16-18" Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 05521

Sliding Linkage Brk't.

$

$

Currently unavailable

16

MTD 747-0151

Sliding Rod .31" Dia. x 2.00" Lg.

$

$

Not available

17

MTD 714-0507

Cot. Pin 3132" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

18

MTD 747-0152

Shifting Linkage Rod .31" Dia. x 2.25" Lg.

$

$

Not available

19

MTD 738-0281

Shld. Scr. .625" Dia. x .170"

$10.99

$

In Stock, only 1 left!

0

20

MTD 05522

Shifting Linkage Brk't.

$

$

Not available

21

MTD 732-0121

Extension Spring .73 O.D. x 4.31" Lg.
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

22

MTD 710-0538

Hex L-Scr. 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

23

MTD 736-0264

Fl-Wash. .345 I.D. x .75 O.D.

$6.99

$

In Stock, only 1 left!

0

24

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

25

MTD 05820

Differential Shaft Ass'y. L.H.

Note: (Incl. Ref. Nos. 5, 47 & Brg)

$

$

Not available

29

MTD 712-0193

Cone Nut 3/8-24 Thd.

$

$

Not available

30

MTD 09262

Wheel Rim Ass'y.

$

$

Not available

31

MTD 734-0748

Wheel Ass'y. Comp. 16.0 x 6.50

$

$

Not available

MTD 734-0275

Tire Only 16 x 6.50-8

Variations

MTD 734-0275-0901

TIRE-16X6.5 - Carlisle (0901)

$

$

Not available

MTD 734-0275-0905

TIRE-16X6.5 - Duro (0905)

$

$

Not available

MTD 734-0275-0902

TIRE-16X6.5 - Dico (0902)

$

$

Not available

$114.99

$

Usually ships in 3-6 days

0

32

MTD 738-0279

Drive Plate Spindle

$57.99

$

Usually ships in 3-6 days

0

33

MTD 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

34

MTD 741-0919

Ball Brg. .787 I.D. x 1.85 O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

35

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

36

MTD 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

MTD 741-0133

Ball Bearing

$35.99

$

Usually ships in 3-6 days

0

38

MTD 05491

Engine Brk't. Ass'y.

$

$

Not available

39

MTD 05518

Auger Clutch Brk't.

$

$

Not available

40

MTD 732-0303

Extension Spring .38 O.D. x 3.18" Lg.
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

41

MTD 747-0149

Auger Clutch Rod .31" Dia. x 10.62" Lg.

$

$

Currently unavailable

42

MTD 748-0222

Differential Housing

$

$

Not available

43

MTD 748-0224

20 Tooth Spur Gear

$

$

Not available

44

MTD 748-0223

9 Tooth Spur Gear

$

$

Not available

45

MTD 713-0198

28 Teeth Sprocket

$

$

Currently unavailable

46

MTD 05484

Differential Hsg. Support Plate

$

$

Not available

47

MTD 738-0284

Differential Connecting Shaft

$

$

Not available

48

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

49

MTD 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

50

MTD 05523

Pivot Axle Brk't.

$

$

Not available

51

MTD 736-0264

Fl-Wash. .345" I.D. x .75" O.D.

$6.99

$

In Stock, only 1 left!

0

52

MTD 738-0144

Shld. Scr.
(Superseded to 938-0144)

$

$

Not available

53

MTD 736-0105

Bell-Wash.

$4.49

$

In Stock, Qty 20+

0

54

MTD 710-0559

Hex Scr. 1/4-28 x 1.75" Lg.

$

$

Not available

55

MTD 748-0184

Flange Brg. .630" I.D.

$7.49

$

Usually ships in 3-6 days

0

56

MTD 750-0277

Spacer.51" I.D. x .69" O.D.

$

$

Not available

58

MTD 710-0629

Hex Scr. 3/8-24 x 2.75" Lg.

$

$

Not available

59

MTD 750-0275

Sprocket Hub Tubing 1.900" Lg.

$

$

Not available

63

MTD 736-0242

Bell-Wash. .345" I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

64

MTD 713-0270

#41 Chain 1/2" Pitch x 43 Links

$

$

Not available

MTD 713-0723

Master Link
(Superseded to 913-0723)

$

$

Not available

65

MTD 738-0278

Sliding Support Axle

$

$

Not available

66

MTD 713-0199

#41 Chain 1/2" Pitch x 19 Links

$

$

Not available

MTD 713-0723

Master Link
(Superseded to 913-0723)

$

$

Not available

67

MTD 713-0193

9 and 14 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0193)

$81.99

$

Usually ships in 3-6 days

0

68

MTD 748-0204

8 Teeth Sprocket

$

$

Not available

69

MTD 05520

Chain Support Brk't.

Variations

MTD 05520-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

70

MTD 712-0116

Hex L-Jam Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

71

MTD 714-0129

#9 Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

72

MTD 713-0194

9 and 32 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0194)

$153.99

$

In Stock, only 1 left!

0

73

MTD 738-0280

Hex Shaft

$

$

Not available

74

MTD 713-0269

#420 Chain 1/2" Pitch x 37 Links
(Superseded to 913-0269)

$32.99

$

Usually ships in 3-6 days

0

MTD 713-0154

Master Link
(Superseded to 913-0154)

$

$

Not available

75

MTD 712-0896

Hex Ins. Jam L-Nut 1/4-28"

$4.99

$

In Stock, Qty 6

0

78

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

79

MTD 05497

Drive Plate Mtg. Brk't. Ass'y.

Variations

MTD 05497-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

81

MTD 714-0388

#61 Hi-Pro Key 3/16 x 5/8" Dia
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 5

0

82

MTD 717-0302

Aluminum Drive Plate
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

83

MTD 747-0150

Drive Clutch Rod .31" Dia. x 7.38" Lg.

$

$

Not available

84

MTD 05500

Drive Clutch Brk't. Ass'y.

$

$

Currently unavailable

85

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

86

MTD 05502

Sliding Brk't. Ass'y.

$

$

Currently unavailable

87

MTD 710-0195

Hex Scr. 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

88

MTD 741-0305

Sleeve Brg.

$

$

Not available

89

MTD 05637

Differential Tubing Ass'y. R.H.

$

$

Currently unavailable

90

MTD 714-0143

Klick Pin 1/4" Dia. x 1.75" Lg.
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 7

0

91

MTD 714-0104

Internal Cot. Pin 5/16 Dia.

$4.49

$

In Stock, Qty 20+

0

92

MTD 738-0304

Differential Pin

$

$

Not available

93

MTD 716-0115

Snap Ring .625 Shaft
(Superseded to 916-0115)

$

$

Not available

94

MTD 736-0187

Fl-Wash. .62 I.D. x 1.25 O.D.

$4.49

$

In Stock, Qty 20+

0

95

MTD 738-0347

Shld. Spacer 5/8" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

97

MTD 07386

Fl-Wash.

$

$

Not available
