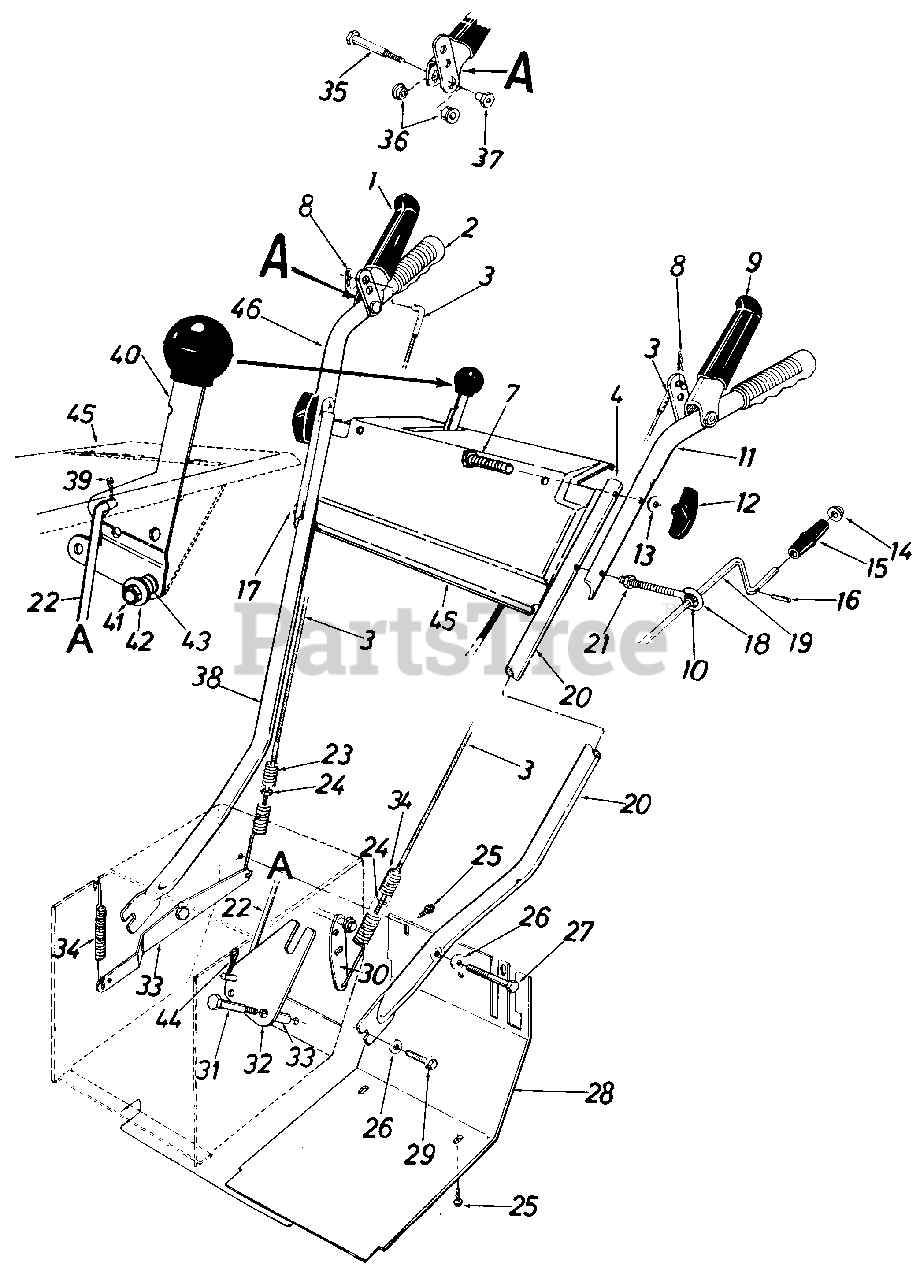

31960-7 - MTD Snow Thrower (1987) Snow Parts Diagram

Snow Thrower

Snow Parts Diagram

  • Title

1

MTD 05988

Clutch Grip Ass'y. R.H.

$

$

Not available

2

MTD 720-0180

Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

3

MTD 746-0367

Lockout Cable 30.5" Lg.
(Superseded to 946-0367)

$40.99

$

Usually ships in 3-6 days

0

4

MTD 731-0496

Plastic Plug

$

$

Not available

7

MTD 710-0116

Hex Scr. 5/16-18 x 2.00" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

8

MTD 714-0111

Hairpin Cotter

$4.99

$

In Stock, Qty 13

0

9

MTD 05987

Clutch Grip Ass'y. L.H.

$

$

Currently unavailable

10

MTD 735-0218

Chute Crank Grommet
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

11

MTD 749-0593

Upper Handle Half L.H.

$

$

Not available

12

MTD 09966

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

13

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

14

MTD 726-0100

Cap Speed Nut for 3/8" Rod

$4.49

$

In Stock, Qty 20+

0

15

MTD 720-0201

Knob 3/8" Rod
(Superseded to 720-0201A)

$10.99

$

In Stock, Qty 5

0

16

MTD 715-0138

Roll Pin .12 Dia. x .631" Lg.
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

17

MTD 710-0572

Carr. Bolt 5/16-18 x 2.50" Lg.

$4.49

$

In Stock, Qty 20+

0

18

MTD 747-0416

Eyebolt

$

$

Not available

19

MTD 05981

Chute Crank Ass'y.

$

$

Not available

20

MTD 749-0341

Lower Handle Half L.H.

$

$

Currently unavailable

21

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 747-0325

Shift Rod

$

$

Not available

23

MTD 732-0184

Ext. Spring .75" O.D. x 5.00" Lg.

$25.99

$

Usually ships in 3-6 days

0

24

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

25

MTD 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

26

MTD 736-0105

Bell-Wash. .401" I.D. x .88" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0427

Hex Scr. 3/8-16 x 2.00" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

28

MTD 05517

Frame Cover

$

$

Currently unavailable

29

MTD 710-0555

Pilot Scr. 3/8-16 x .88" Lg.
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

30

MTD 05500

Drive Clutch Brkt. Ass'y.

$

$

Currently unavailable

31

MTD 738-0129

Shld. Bolt .498 Dia. x 2.005

$11.99

$

In Stock, only 1 left!

0

32

MTD 784-5133

Shift Linkage Brkt. Ass'y.

Variations

MTD 784-5133-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 750-0273

Spacer .51 I.D. x .69 O.D. x 1.97 Lg.

$

$

Not available

34

MTD 732-0184

Spring

$25.99

$

Usually ships in 3-6 days

0

35

MTD 738-0560

Shld. Bolt .374" Dia. x 1.53" Lg.
(Superseded to 938-0560)

$10.99

$

In Stock, only 1 left!

0

36

MTD 741-0402

Hex Flange Brg. Plastic .38" I.D.

$

$

Not available

37

MTD 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

Usually ships in 3-6 days

0

38

MTD 749-0342

Lower Handle Half R.H.

$

$

Currently unavailable

39

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

40

MTD 05805

Shift Handle Ass'y.

$

$

Not available

41

MTD 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

42

MTD 732-0193

Comp. Spring .60" O.D. x .88" Lg.

$4.99

$

In Stock, Qty 6

0

43

MTD 736-0105

Bell-Wash. .401" I.D. x .88" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

44

MTD 714-0111

Cotter Pin 3/32" Dia. x .75' Lg.

$4.99

$

In Stock, Qty 13

0

45

MTD 784-5139

Handle Panel Ass'y.

$

$

Not available

46

MTD 749-0594

Upper Handle Half R.H.

$

$

Not available
