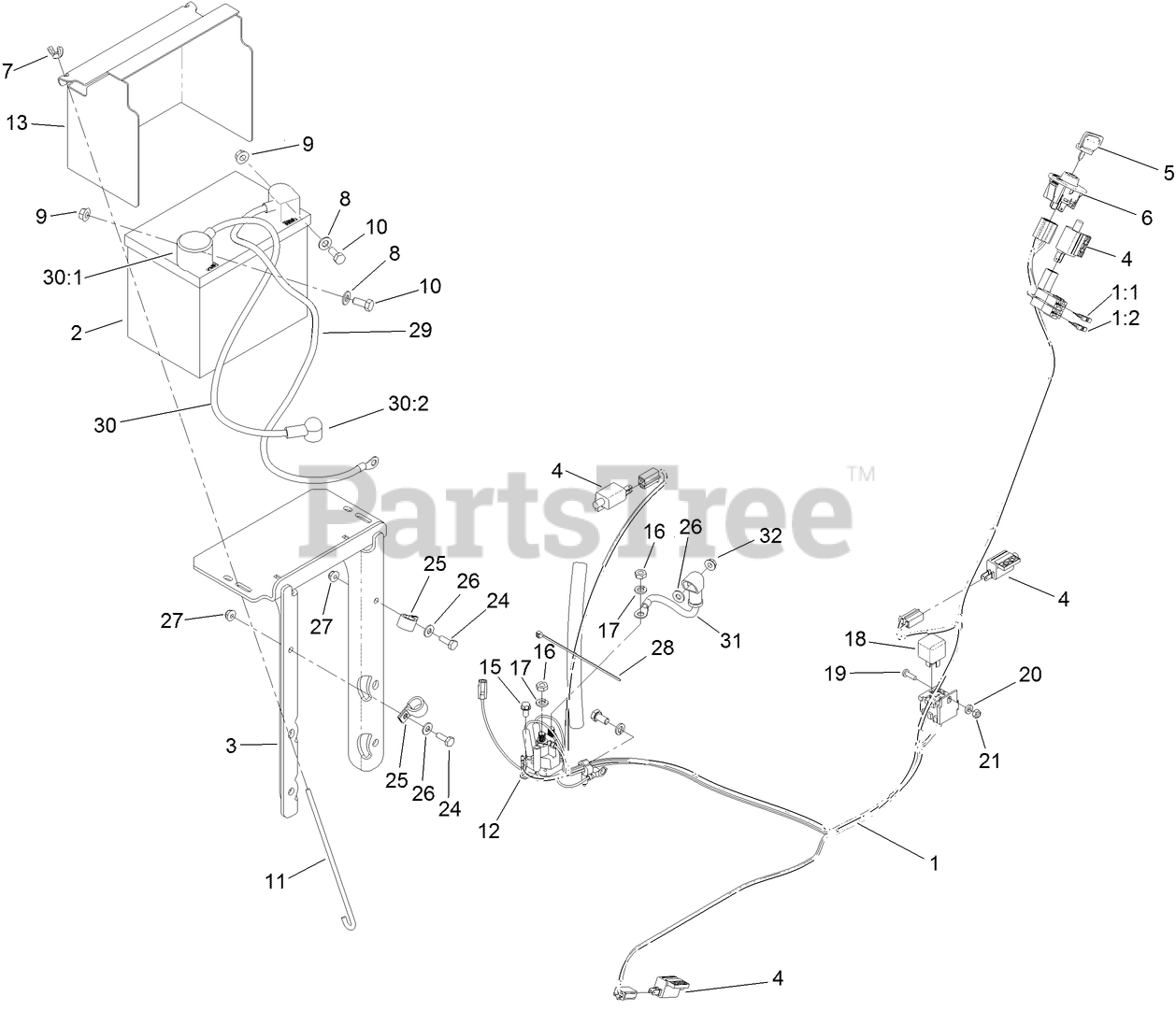

31914 - Toro Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp (SN: 410300000 - 411999999) Harness and Battery Assembly Parts Diagram

Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp

Harness and Battery Assembly Parts Diagram

  • Title
1

Toro 119-6667

HARNESS-WIRE

$302.99

$

Usually ships in 3-6 days

0

1:1

Toro 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 6

0

1:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

2

Toro 104-8162

BATTERY-DRY

$

$

Not available

3

Toro 119-6666-03

TRAY-BATTERY

$169.99

$

Usually ships in 3-6 days

0

4

Toro 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

5

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

6

Toro 137-4100

SWITCH-IGNITION

$35.99

$

In Stock, Qty 19

0

7

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 9

0

12

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 17

0

13

Toro 117-0543-01

COVER-BATTERY

$88.99

$

Usually ships in 3-6 days

0

15

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

19

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

20

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

21

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

29

Toro 117-6422

CABLE-BATTERY, BLACK

$32.99

$

Usually ships in 3-6 days

0

30

Toro 109-7653

POSITIVE BATTERY CABLE ASM

$35.99

$

In Stock, only 1 left!

0

30:1

Toro 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

30:2

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

31

Toro 106-8268

CABLE-BATTERY, RED

$37.99

$

Usually ships in 3-6 days

0

32

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0
