319 E (1694584) - Simplicity 19" Snow Thrower, 3hp Handles Group (026hac) Parts Diagram

19" Snow Thrower, 3hp

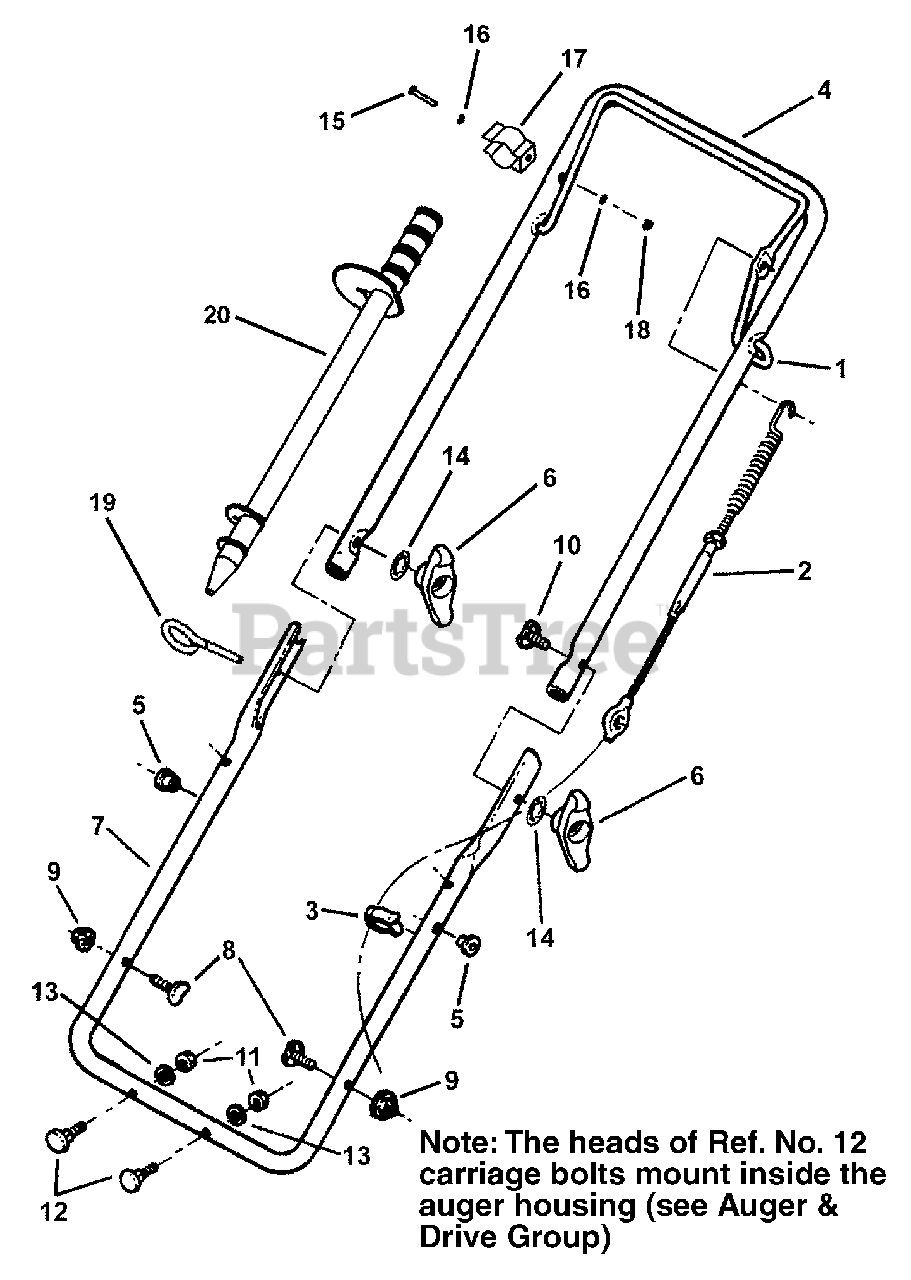

Handles Group (026hac) Parts Diagram

  • Title
1

Simplicity 7024645SM

BAIL, Drive Control

$53.99

$

In Stock, only 1 left!

0

2

Simplicity 7024662SM

CABLE, Drive Control

$14.99

$

In Stock, only 4 left!

0

3

Simplicity 7023813SM

CLIP, Wiring Harness

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 7033496SM

HANDLE, Upper

$89.99

$

Usually ships in 2-12 days

0

5

Simplicity 7091182SM

INSERT, Nylon

$3.49

$

In Stock, only 4 left!

0

6

Simplicity 1716632SM

KNOB, 5/16-18 Wing, Black
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

7

Simplicity 7036570SM

HANDLE, Lower

$179.99

$

Usually ships in 2-12 days

0

8

Simplicity 7091190SM

BOLT, 5/16-18 x 1-3/8" Curved Head
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

9

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Simplicity 7091013SM

BOLT, 5/16-18 x 2" Curved Head, Grade 2

$5.49

$

In Stock, only 1 left!

0

11

Simplicity 1917372SM

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1931337SM

CARRIAGE BOLT, 5/16-18 x 1-1/2, Grade 5
(Superseded to 703296)

$4.49

$

In Stock, only 4 left!

0

13

Simplicity 1917356SM

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1923300SM

WASHER, 5/16 Internal Tooth Lock

$3.99

$

In Stock, only 4 left!

0

15

Simplicity 7091757SM

SCREW, Hex Head Cap, #10-24 x 1-1/4, Grade 5

$3.49

$

In Stock, Qty 8

0

16

Simplicity 7090011SM

WASHER, #10 Flat

$3.99

$

In Stock, only 1 left!

0

17

Simplicity 1726728SM

HOLDER, Clean-Out Tool, Upper
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 17

0

18

Simplicity 7091267SM

NUT, Hex Center Lock, #10-24

$3.99

$

In Stock, Qty 6

0

19

Simplicity 7075342SM

HOLDER, Clean-Out Tool, Lower, 5/16-18 thread

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 7075909SM

TOOL, Clean-Out
(Superseded to 1736094YP)

$34.99

$

In Stock, only 4 left!

0
