319 E (1694383) - Simplicity 19" Snow Thrower, 3hp Auger & Drive Group (02603) Parts Diagram

19" Snow Thrower, 3hp

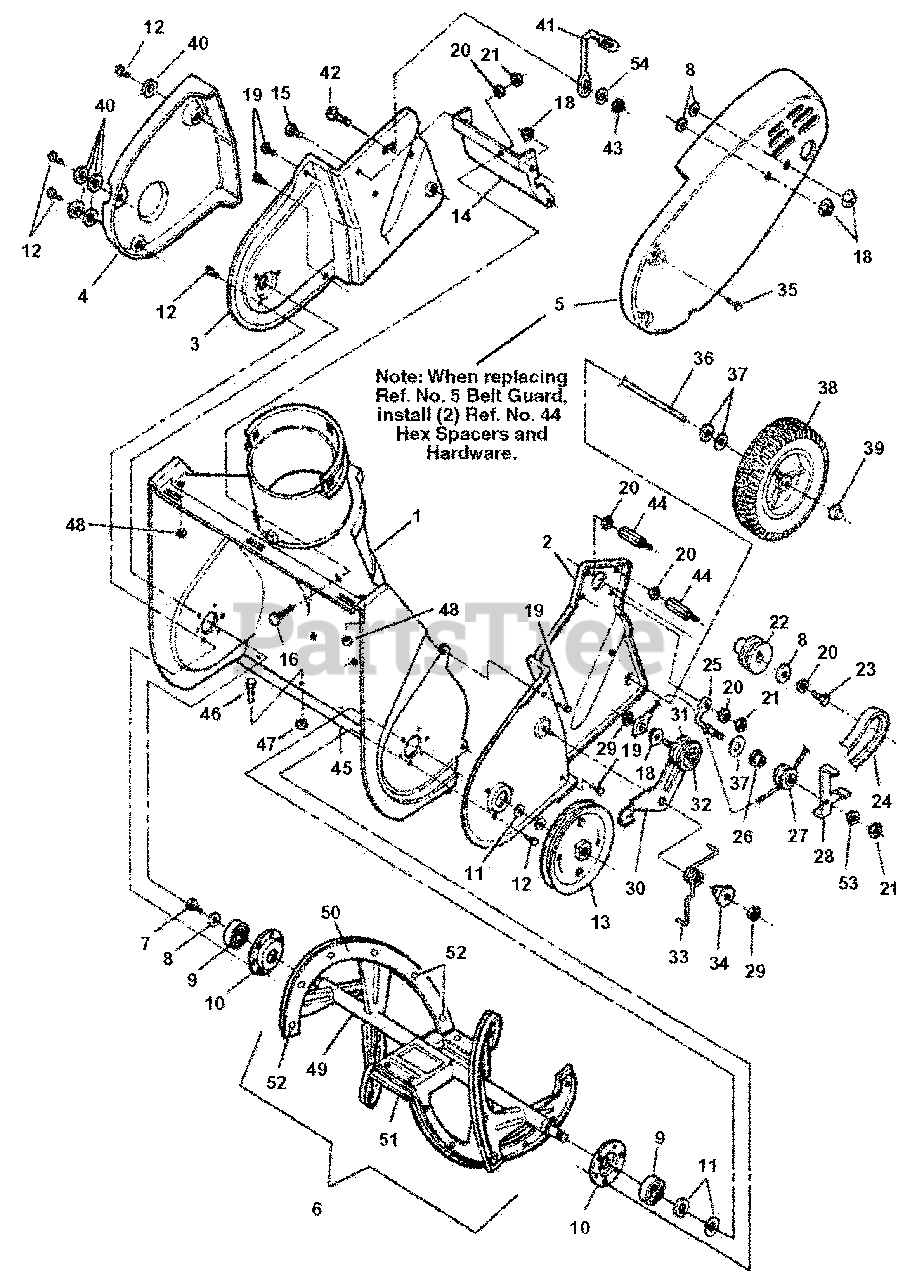

Auger & Drive Group (02603) Parts Diagram

  • Title

1

Simplicity 7052969SM

ASSEMBLY, Auger Housing, Electric Start

$372.99

$

Usually ships in 2-12 days

0

1

Simplicity 7059233SM

ASSEMBLY, Auger Housing, Manual Start
(Superseded to 7052969SM)

$372.99

$

Usually ships in 2-12 days

0

2

Simplicity 7052964SM

ASSEMBLY, End Frame, L.H.

$66.99

$

Usually ships in 2-12 days

0

3

Simplicity 7041333SM

FRAME, End, R.H.

$56.99

$

Usually ships in 2-12 days

0

4

Simplicity 7026117SM

COVER, R.H. Side

$22.99

$

Usually ships in 2-12 days

0

5

Simplicity 7034327SM

GUARD, Belt Drive

$136.99

$

Usually ships in 2-12 days

0

6

Simplicity 7052940SM

ASSEMBLY, Auger (Includes Items 49 Thru 52)

$393.99

$

Usually ships in 2-12 days

0

7

Simplicity 1930601SM

CAPSCREW, 5/16-18 x 5/8" Taptite
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

8

Simplicity 1919381SM

WASHER, 5/16 Flat
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 7014608SM

BEARING, Ball

$34.99

$

Usually ships in 2-12 days

0

10

Simplicity 7034385SM

RETAINER, 1-3/4" O.D. Bearing

$10.99

$

Usually ships in 2-12 days

0

11

Simplicity 7010935SM

WASHER, 3/4 Flat

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 7091012SM

SCREW, #10-32 x 3/8" Taptite, Torx
(Superseded to 703967)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 7018635SM

PULLEY

$57.99

$

Usually ships in 2-12 days

0

14

Simplicity 7033457SM

BRACE, Engine

$26.99

$

Usually ships in 2-12 days

0

15

Simplicity 1929000SM

SCREW, 1/4-20 x 3/8" Hex Washer Taptite
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 1931333SM

BOLT, 5/16-18 x 3/4" Square Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

18

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Simplicity 7091081SM

SCREW, 1/4-15 x 1" Hex Washer Taptite

$4.49

$

In Stock, Qty 12

0

20

Simplicity 1917356SM

WASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1917372SM

NUT, 5/16-18 Hex, Grade B or 5
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 7022179SM

PULLEY, Engine

$47.99

$

Usually ships in 2-12 days

0

23

Simplicity 1921515SM

SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 1715591SM

V-BELT, 3L, 34.27

$24.99

$

In Stock, only 4 left!

0

25

Simplicity 7024743SM

GUIDE, Cable

$54.99

$

Usually ships in 2-12 days

0

26

Simplicity 7012306SM

BUSHING, Flange
(Superseded to 703973)

$5.99

$

In Stock, Qty 9

0

27

Simplicity 7024228SM

PULLEY, Nylon

$4.99

$

In Stock, only 3 left!

0

28

Simplicity 7033729SM

GUIDE, Belt

$11.99

$

Usually ships in 2-12 days

0

29

Simplicity 1923362SM

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

30

Simplicity 7033695SM

BRACKET, Idler Pivot

$19.99

$

Usually ships in 2-12 days

0

31

Simplicity 7024626SM

PULLEY, Idler

$9.49

$

Usually ships in 2-12 days

0

32

Simplicity 1922127SM

SCREW, 5/16-18 x 1-3/4" Hex Cap, Grade 5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

33

Simplicity 7024621SM

SPRING, Idler Torsion

$12.99

$

Usually ships in 2-12 days

0

34

Simplicity 7024620SM

BUSHING, Pivot

$7.99

$

Usually ships in 2-12 days

0

35

Simplicity 7091195SM

SCREW, #10-16 x 3/4" Pan Head Taptite

$4.49

$

In Stock, only 1 left!

0

36

Simplicity 7033692SM

AXLE, 3/8" Diameter Wheel

$7.49

$

Usually ships in 2-12 days

0

37

Simplicity 7014098SM

WASHER, 3/8 Flat

$16.99

$

In Stock, only 2 left!

0

38

Simplicity 7026240SM

WHEEL, 7"
(Superseded to 760714MA)

$

$

Not available

39

Simplicity 1720458SM

NUT, 3/8" Push

$4.49

$

Usually ships in 2-12 days

0

40

Simplicity 7090010SM

WASHER, #10 Flat

$

$

Not available

41

Simplicity 7024852SM

SUPPORT, Fuel Tank

$9.99

$

Usually ships in 2-12 days

0

42

Simplicity 1960252SM

BOLT, 1/4-20 x 5/8" Short Neck Carriage, Grade 5

$3.99

$

In Stock, only 1 left!

0

43

Simplicity 1923358SM

NUT, 1/4-20 Hex, Nyloc
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

44

Simplicity 7027925SM

SPACER, Hex, 3.69" Long

$15.99

$

Usually ships in 2-12 days

0

45

Simplicity 7035948SM

BLADE, Scraper

$36.99

$

Usually ships in 2-12 days

0

46

Simplicity 7091148SM

SCREW, 1/4-20 x 1/2" Machine

$4.99

$

In Stock, Qty 7

0

47

Simplicity 1923358SM

NUT, 1/4-20 Hex Center Lock, Grade B or 5
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

48

Simplicity 1923358SM

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

49

Simplicity 7047025SM

STRUCTURE, Auger
(Superseded to 7052940SM)

$393.99

$

Usually ships in 2-12 days

0

50

Simplicity 7029565SM

SHOE, Flite

$30.99

$

In Stock, only 3 left!

0

51

Simplicity 7014612SM

SHOE, Center Flite

$5.49

$

In Stock, Qty 9

0

52

Simplicity 1929477SM

CAPSCREW, #10-24 x 11/2" Hex Washer Taptite Sems

$4.49

$

Usually ships in 2-12 days

0

53

Simplicity 1923300SM

WASHER, 5/16 Internal Tooth Lock

$3.99

$

In Stock, only 4 left!

0

54

Simplicity 1916964SM

WASHER, 1/4 Split Lock
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0
