319-590-000 - MTD Snow Thrower (1989) Parts Parts Diagram

Snow Thrower

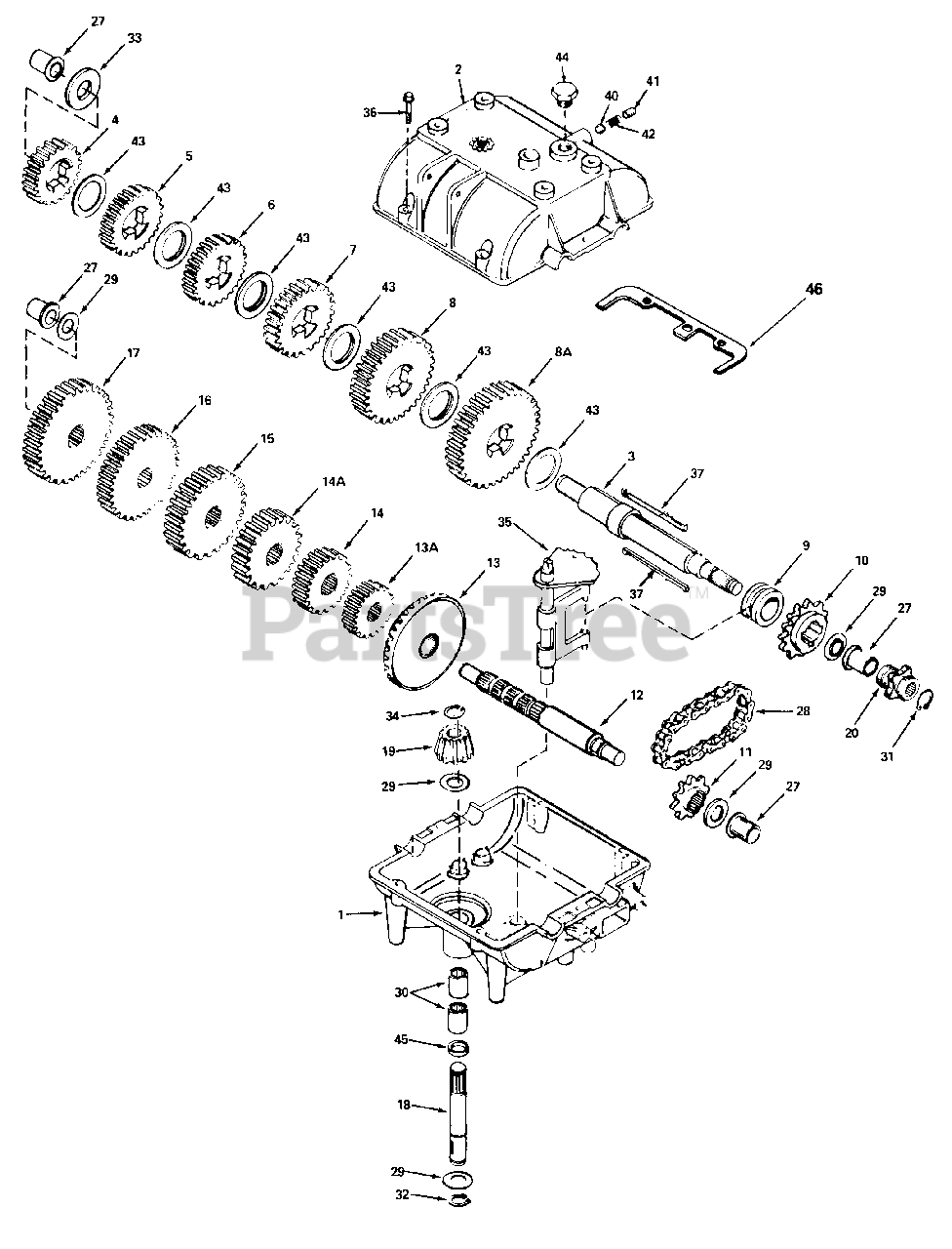

Parts Parts Diagram

  • Title

1

MTD 770061

Case, Transmission

$

$

Currently unavailable

2

MTD 772083

Cover, Transmission

$

$

Currently unavailable

3

MTD 776238

Shaft, Output

$238.99

$

Usually ships in 3-12 days

0

4

MTD 778209

Gear, Spur (19 Teeth)

$

$

Currently unavailable

5

MTD 778190

Gear, Spur (22 Teeth)

$

$

Currently unavailable

6

MTD 778187

Gear, Spur (25 Teeth)

$

$

Currently unavailable

7

MTD 778185

Gear, Spur (30 Teeth)

$

$

Currently unavailable

8

MTD 778183

Gear, Spur (35 Teeth)

$

$

Currently unavailable

8A

MTD 778191

Gear, Spur (37 Teeth)

$

$

Not available

9

MTD 784266

Collar, Shift

$11.99

$

Usually ships in 3-12 days

0

10

MTD 786060

Sprocket (14 Teeth)

$16.99

$

In Stock, only 2 left!

0

11

MTD 786061

Sprocket (10 Teeth)

$13.99

$

In Stock, only 1 left!

0

12

MTD 776134

Shaft, Counter

$98.99

$

In Stock, only 1 left!

0

13

MTD 778137A

Gear, Bevel (42 Teeth)
(Superseded to TC-778137A)

$54.99

$

Usually ships in 3-12 days

0

13A

MTD 778192

Gear, Spur (12 Teeth)

$

$

Currently unavailable

14

MTD 778193

Gear, Spur (15 Teeth)

$

$

Currently unavailable

14A

MTD 778184

Gear, Spur (20 Teeth)

$

$

Currently unavailable

15

MTD 778186

Gear, Spur (25 Teeth)

$

$

Currently unavailable

16

MTD 778189

Gear, Spur (28 Teeth)

$

$

Currently unavailable

17

MTD 778163

Gear, Spur (31 Teeth)

$

$

Currently unavailable

18

MTD 776140

Shaft, Input

$

$

Currently unavailable

19

MTD 778113A

Bevel Pinion, Input
(Superseded to TC-778113A)

$34.99

$

In Stock, only 1 left!

0

20

MTD 786077

Sprocket (7 Teeth)

$

$

Currently unavailable

27

MTD 780105A

Bushing, Flanged
(Superseded to TC-780105A)

$8.49

$

In Stock, Qty 10

0

28

MTD 786062A

Chain, Roller (No. 41 Chain, 22 Links)

$32.99

$

In Stock, only 1 left!

0

29

MTD 780072

Washer, Thrust
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

MTD 780086

Bearing, Needle

$12.99

$

In Stock, Qty 20+

0

31

MTD 792072

Ring, Retaining

$172.99

$

Usually ships in 2-12 days

0

32

MTD 792035

Ring, Retaining
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 13

0

33

MTD 780139

Washer, Thrust

$4.49

$

In Stock, Qty 9

0

34

MTD 788040

Ring, Retaining

$4.49

$

In Stock, only 4 left!

0

35

MTD 784347

Rod and Fork Ass'y., Shift

$

$

Currently unavailable

36

MTD 792073

Screw, Flanged Hex Hd. Thd. Forming, 1/4-20 x 1-1/4

$1.99

$

Usually ships in 3-12 days

0

37

MTD 792089A

Key

$35.99

$

Usually ships in 3-12 days

0

40

MTD 792077

Ball, Steel, 5/16

$4.49

$

In Stock, only 4 left!

0

41

MTD 792078

Screw, Set, 3/8-16 x 3/8

$4.49

$

In Stock, only 1 left!

0

42

MTD 792079

Spring
(Superseded to TC-792079)

$4.49

$

In Stock, only 1 left!

0

43

MTD 780108

Wash, Thrust
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

44

MTD 792074

Plug

$22.99

$

Usually ships in 3-12 days

0

45

MTD 792001

"O"-Ring
(Superseded to TC-792001)

$4.49

$

In Stock, Qty 11

0

46

MTD 788054

Gasket

$

$

Currently unavailable

MTD 700-031

Transmission Comp .

$

$

Currently unavailable
