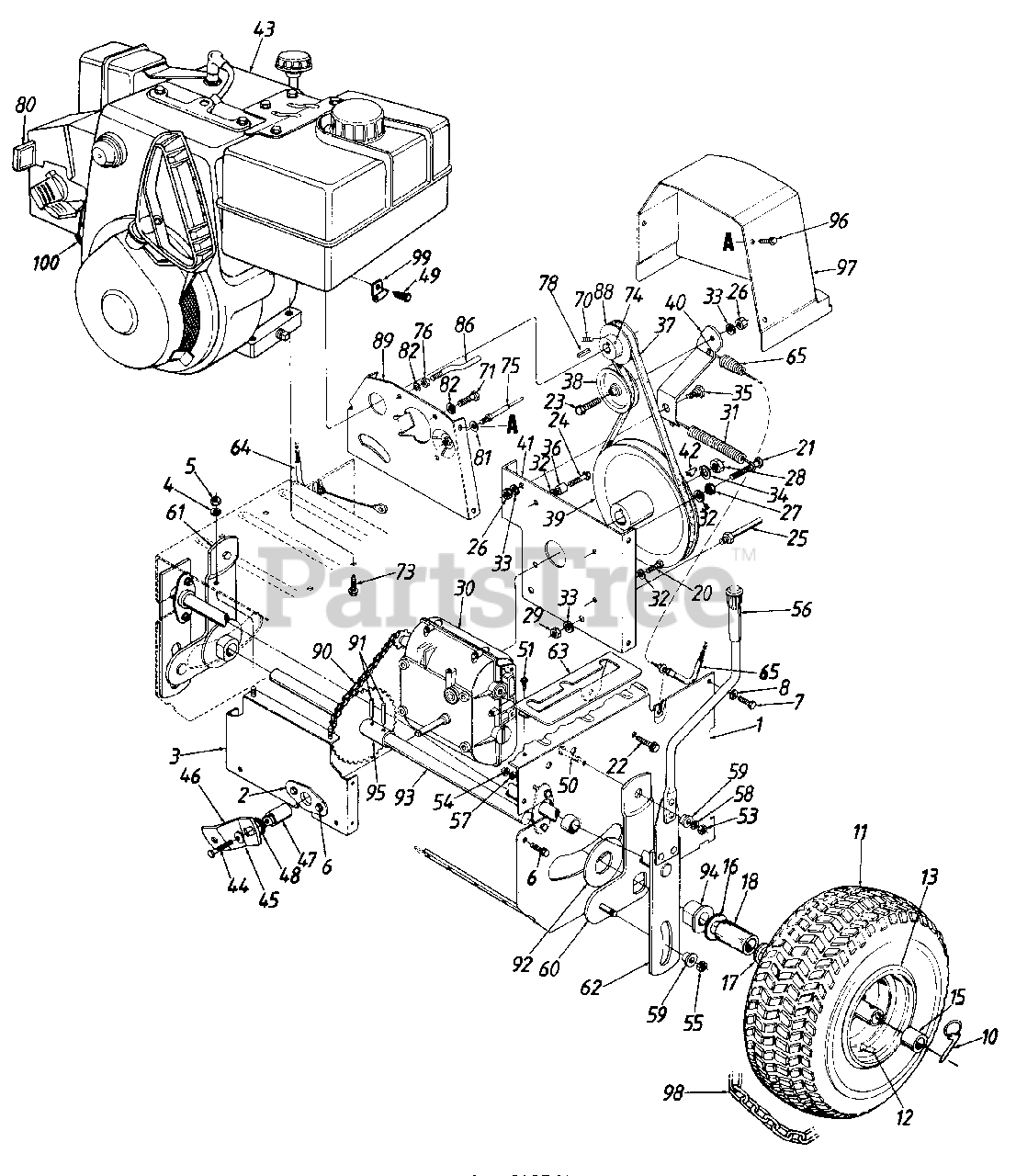

319-590-000 - MTD Snow Thrower (1989) Parts Parts Diagram

Snow Thrower

Parts Parts Diagram

  • Title

1

MTD 784-5384

Frame Ass'y.

$

$

Not available

2

MTD 784-5386

Shift Support

$

$

Not available

3

MTD 784-5382

Back Plate Ass'y.

$

$

Not available

4

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

5

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

6

MTD 710-0599

Hex TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0623

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0217

L-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 6

0

10

MTD 714-0143

Kwick Pin
(Superseded to 714-0143A)

$6.49

$

In Stock, only 4 left!

0

11

MTD 734-1417

Wheel Ass'y. Comp.

$

$

Currently unavailable

MTD 734-1375

Tire Only
(Superseded to 734-1375-0901)

Variations

MTD 734-1375-0901

TIRE-13 X 6.5 - Carlisle (0901)

$

$

Not available

MTD 734-1375-0902

TIRE-13 X 6.5 - Dico (0902)

$

$

Not available

$

$

12

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

13

MTD 734-1145

Rim Only

$

$

Currently unavailable

15

MTD 741-0401

Sleeve Brg. .755" I.D.
(Superseded to 941-0401)

$7.49

$

In Stock, Qty 8

0

16

MTD 736-0287

Fl-Wash. .793" I.D.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0315

Fl-Wash. .75" I.D.

$6.99

$

In Stock, Qty 6

0

18

MTD 750-0442

Spacer.75" I.D.

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

23

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

24

MTD 710-0874

Hex Bolt 5/16-18 x 1.25" Lg.

$6.99

$

Usually ships in 3-6 days

0

25

MTD 711-0640

Stud 3/8-16 x 2.75" Lg.

$7.99

$

Usually ships in 3-6 days

0

26

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

27

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-0333

Nut 1/2-20 Thd.
(Superseded to 912-0333)

$

$

Not available

29

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

30

MTD 717-0944

Transmission Comp.

$

$

Currently unavailable

31

MTD 732-0429

Extension Spring 3.97" Lg.
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

32

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

34

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

35

MTD 738-0689

Shld. Bolt 1/2" Dia. x .175"
(Superseded to 938-0689)

$8.99

$

In Stock, only 2 left!

0

36

MTD 750-0539

Spacer.315" I.D.
(Superseded to 950-0539)

$

$

Not available

37

MTD 754-0356

V-Belt
(Superseded to 954-0356)

$36.99

$

In Stock, only 1 left!

0

38

MTD 756-0536

Flat Idler 1.88" Dia.

$

$

Not available

39

MTD 756-0537

Trans. Pulley 7" O.D. x 3L

$

$

Currently unavailable

40

MTD 784-5314

Trans. Idler Arm

$

$

Not available

41

MTD 784-5315

Trans. Support Plate

$

$

Not available

42

MTD 714-0129

Key
(Superseded to 914-0129)

$

$

Not available

43

MTD 143.796132

Engine ??

$

$

Currently unavailable

44

MTD 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.

$

$

Not available

45

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

46

MTD 784-5390

Shift Arm

$

$

Not available

47

MTD 748-0327

Shift Arm Extension

$

$

Currently unavailable

48

MTD 736-0256

Fl-Wash. .63" I.D. x .93" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

49

MTD 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

50

MTD 710-0152

Hex Bolt 3/8-24 x 1" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

51

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5"

$4.99

$

Usually ships in 3-6 days

0

53

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

54

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

55

MTD 712-0116

Hex L-Nut 3/8-24 Thd. Gr. 5

$4.99

$

In Stock, Qty 6

0

56

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

57

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

58

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

59

MTD 738-0372

Shoulder Spacer
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 19

0

60

MTD 784-5318

Side Arm Ass'y.-R.H.

$

$

Not available

61

MTD 784-5319

Side Arm Ass'y.-L.H.

$

$

Currently unavailable

62

MTD 784-5321

Pivot Handle Ass'y.

$

$

Not available

63

MTD 784-5389

Position Selector Plate

$

$

Currently unavailable

64

MTD 746-0692

Clutch Cable 25.5" Lg.

$

$

Not available

65

MTD 746-0693

Auger Cable 25.5" Lg.

$

$

Currently unavailable

70

MTD 710-0188

Set Scr. 1/4-28 x .18"

$

$

Currently unavailable

71

MTD 710-0237

Hex Bolt 5/16-24 x .62"

$4.49

$

In Stock, only 1 left!

0

73

MTD 710-0502A

Hex L-Wash. TT-Tap Scr. 3/8-16

$6.99

$

In Stock, only 2 left!

0

74

MTD 710-0938

Set Scr. 1/4-28 x .25"

$

$

Not available

75

MTD 711-0769

Stud 3/8-16 x 3.37" Lg.

$

$

Not available

76

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

78

MTD 714-0131

Key 8/32" x 5/8" Dia.

$

$

Not available

80

MTD 725-1377

Plastic Key-Craftsman
(Superseded to TC-35062)

$3.99

$

In Stock, only 4 left!

0

81

MTD 736-0105

Bell-Wash. 88" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

82

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

86

MTD 747-0716

Belt Guard Scr.

$

$

Not available

88

MTD 756-0538

Auxiliary PTO Pulley

$

$

Not available

89

MTD 784-5396

Engine Plate Ass'y.

$

$

Currently unavailable

90

MTD 713-0394

Chain #420 1/2 Pitch x 41 Links

$

$

Not available

MTD 713-0723

#41 Master Link
(Superseded to 913-0723)

$

$

Not available

91

MTD 715-0143

Spring Spiral Pin

$4.99

$

In Stock, Qty 9

0

92

MTD 731-0973

Slide Washer

$

$

Not available

93

MTD 738-0766

Free Wheeling Axle

$

$

Not available

94

MTD 741-0490

Flange Brg. w/Flats .752 I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, Qty 20+

0

95

MTD 784-5393

30 T-Sprocket Hub Ass'y.

$

$

Not available

96

MTD 710-0603

Hex B-Tap Scr. 5/16-18 x .5 Lg.

$4.99

$

Usually ships in 3-6 days

0

97

MTD 731-1042

Belt Cover

$

$

Not available

98

MTD 723-0396

Tire Chains

$

$

Currently unavailable

99

MTD 726-0175

Clamp

$

$

Not available

100

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0
