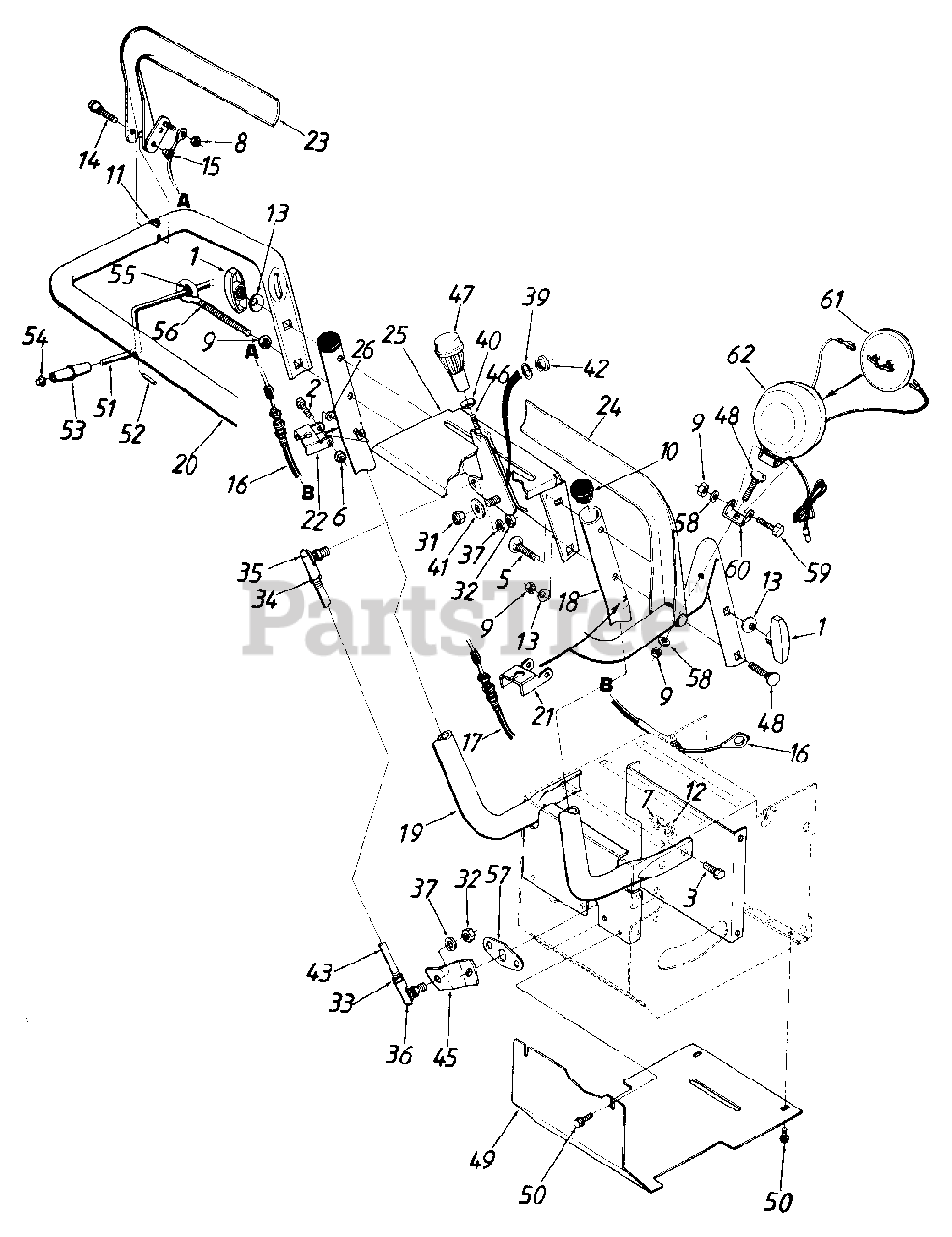

319-590-000 - MTD Snow Thrower (1989) Parts Parts Diagram

Snow Thrower

Parts Parts Diagram

  • Title
1

MTD 09966

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

2

MTD 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 12

0

5

MTD 710-0572

Carriage Bolt 5/16-18 x 2.5" Lg.

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

7

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

8

MTD 712-0392

Hex Lock Stop Nut 1/4-28 Thd.

$6.99

$

In Stock, only 1 left!

0

9

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 731-0496

Plastic Plug

$

$

Not available

11

MTD 735-0199

Rubber Bumper
(Superseded to 935-0199A)

$7.99

$

In Stock, only 2 left!

0

12

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

13

MTD 736-0242

Bell-Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

14

MTD 738-0560

Shld. Bolt.374" Dia.
(Superseded to 938-0560)

$10.99

$

In Stock, only 1 left!

0

15

MTD 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

Usually ships in 3-6 days

0

16

MTD 746-0692

Clutch Cable 25.5" Lg.

$

$

Not available

17

MTD 746-0693

Auger Cable 25.5" Lg.

$

$

Currently unavailable

18

MTD 749-0779

Lower Handle-R.H.

$

$

Not available

19

MTD 749-0780

Lower Handle-L.H.

$

$

Not available

20

MTD 749-0783

Upper Handle Ass'y.

$

$

Not available

21

MTD 784-5394

Cable Bracket-R.H.

$

$

Currently unavailable

22

MTD 784-5395

Cable Bracket-L.H.

$

$

Currently unavailable

23

MTD 784-5431

Clutch Grip Ass'y.-L.H.

$

$

Not available

24

MTD 784-5432

Clutch Grip Ass'y.-R.H.

$

$

Not available

25

MTD 784-5433

Handle Panel Ass'y.

$

$

Not available

26

MTD 736-0142

Fl-Wash. 1/4" I.D. x 1/2" O.D.

$4.99

$

In Stock, Qty 20+

0

31

MTD 712-0181

Hex Ins. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

32

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

33

MTD 712-0312

Hex Nut 3/8-24 L.H. Thd.
(Superseded to 712-0312A)

$3.99

$

Usually ships in 3-6 days

0

34

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

35

MTD 723-0156

Ball Joint Ass'y. 3/8-24 Thd.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

36

MTD 723-0351

Ball Joint Ass'y. 3/8-24 L.H. Thd.
(Superseded to 923-0351)

$44.99

$

Usually ships in 3-6 days

0

37

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

39

MTD 736-0185

Fl-Wash..406" I.D.

$3.99

$

In Stock, Qty 20+

0

40

MTD 736-0256

Fl-Wash. .635" I.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

41

MTD 736-0219

Bell-Wash. .39" I.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

42

MTD 738-0372

Shoulder Spacer
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 18

0

43

MTD 747-0577

Shift Rod

$

$

Not available

45

MTD 784-5390

Shift Arm

$

$

Not available

46

MTD 784-5392

Shift Lever Ass'y.

$

$

Not available

47

MTD 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

48

MTD 710-0487

Carriage Bolt 5/16-18 x 2" Lg.

$7.49

$

Usually ships in 3-6 days

0

49

MTD 784-5388

Bottom Cover

Variations

MTD 784-5388-0629

No Longer Available COVER-BOTT - SILVER FLAKE (0629)

$

$

Not available

$

$

50

MTD 710-0599

Hex TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

51

MTD 05980

Chute Crank Ass'y.

$

$

Not available

52

MTD 715-0138

Roll Pin 1/8" Dia.
(Superseded to 915-0138)

$4.99

$

Usually ships in 3-6 days

0

53

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, only 4 left!

0

54

MTD 726-0100

Pushnut 3/8" Rod

$4.49

$

In Stock, Qty 17

0

55

MTD 741-0475

Plastic Bushing .38" I.D.
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

56

MTD 747-0416A

Eyebolt

$

$

Not available

57

MTD 784-5386

Shift Support

$

$

Not available

58

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

59

MTD 710-0116

Hex Bolt 5/16-18 x 2.0" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

60

MTD 13359

Lamp Mounting Brkt.

$

$

Not available

61

MTD 725-1300

Headlight
(Superseded to 925-1300)

$

$

Not available

62

MTD 725-0586

Headlight Housing

$

$

Currently unavailable
