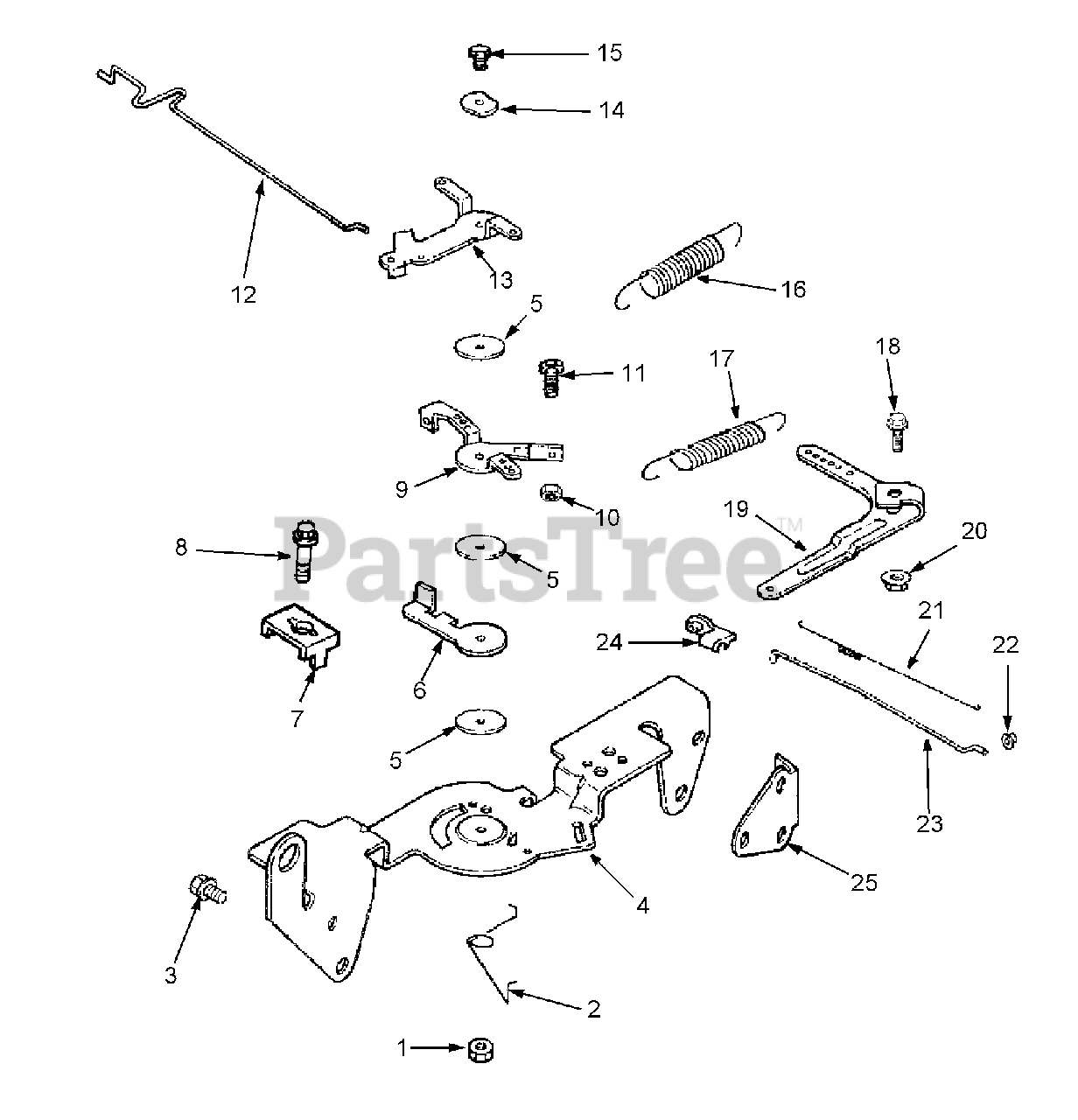

3186 (14A-668-100) - Cub Cadet Garden Tractor Engine Controls Parts Diagram

Garden Tractor

Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-M-0547050

Nut, Hex Lock M5 x 0.8

$

$

Not available

2

Cub Cadet KH-24-089-03

Spring, Choke Return

$

$

Not available

3

Cub Cadet KH-M-0645016

Screw, Hex Flange M6 x 1.0 x 16
(Superseded to KH-M-645016-S)

$3.99

$

In Stock, Qty 13

0

4

Cub Cadet KH-24-126-56

Bracket, Control
(Superseded to KH-24-126-176-S)

$

$

Not available

5

Cub Cadet KH-24-468-01

Washer, Plain 5.5 mm

$

$

Not available

6

Cub Cadet KH-24-090-07

Lever, Throttle Actuator
(Superseded to KH-24-090-65-S)

$5.49

$

In Stock, only 1 left!

0

7

Cub Cadet KH-12-237-01

Clamp,Cable,
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet KH-M-0545016

Screw, Hex Flange M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

9

Cub Cadet KH-24-090-13

Lever, Throttle Control

$

$

Not available

10

Cub Cadet KH-M-0446030

Nut, Hex M4 x 0.7
(Superseded to KH-M-446030-S)

$2.49

$

In Stock, only 4 left!

0

11

Cub Cadet KH-M-0401030

Screw, Hex Cap M4 x 0.7 x 30
(Superseded to KH-M-401030)

$

$

Not available

12

Cub Cadet KH-24-079-02

Linkage,Choke
(Superseded to KH-24-079-21-S)

$

$

Not available

13

Cub Cadet KH-24-090-05

Lever, Choke

$

$

Not available

14

Cub Cadet KH-41-468-03

Washer, Spring 1/4"

$

$

Not available

15

Cub Cadet KH-M-0545020

Screw, Hex Flange M5 x 0.8 x 20

$

$

Not available

16

Cub Cadet KH-24-089-38

Spring, Throttle Limiter
(Superseded to KH-24-089-51-S)

$5.49

$

In Stock, only 1 left!

0

17

Cub Cadet KH-24-089-15

Spring, Governor

$

$

Not available

18

Cub Cadet KH-M-0642025

Screw, Hex Flange M6 x1.0 x 25
(Superseded to KH-M-642025-S)

$2.49

$

In Stock, only 1 left!

0

19

Cub Cadet KH-24-090-14

Lever, Governor

$

$

Not available

20

Cub Cadet KH-M-0641060

Nut, Hex Flange M6 x 1.0"
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 6

0

21

Cub Cadet KH-24-089-01

Spring, Linkage

$

$

Not available

22

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$5.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-24-079-01

Linkage, Throttle

$

$

Not available

24

Cub Cadet KH-25-158-11

Bushing, Linkage Retaining

$

$

Not available

25

Cub Cadet KH-24-126-04

Bracket Support
(Superseded to KH-24-126-04-S)

$21.99

$

Usually ships in 2-5 days

0
