3186 (14A-668-100) - Cub Cadet Garden Tractor Brake Assembly Parts Diagram

Garden Tractor

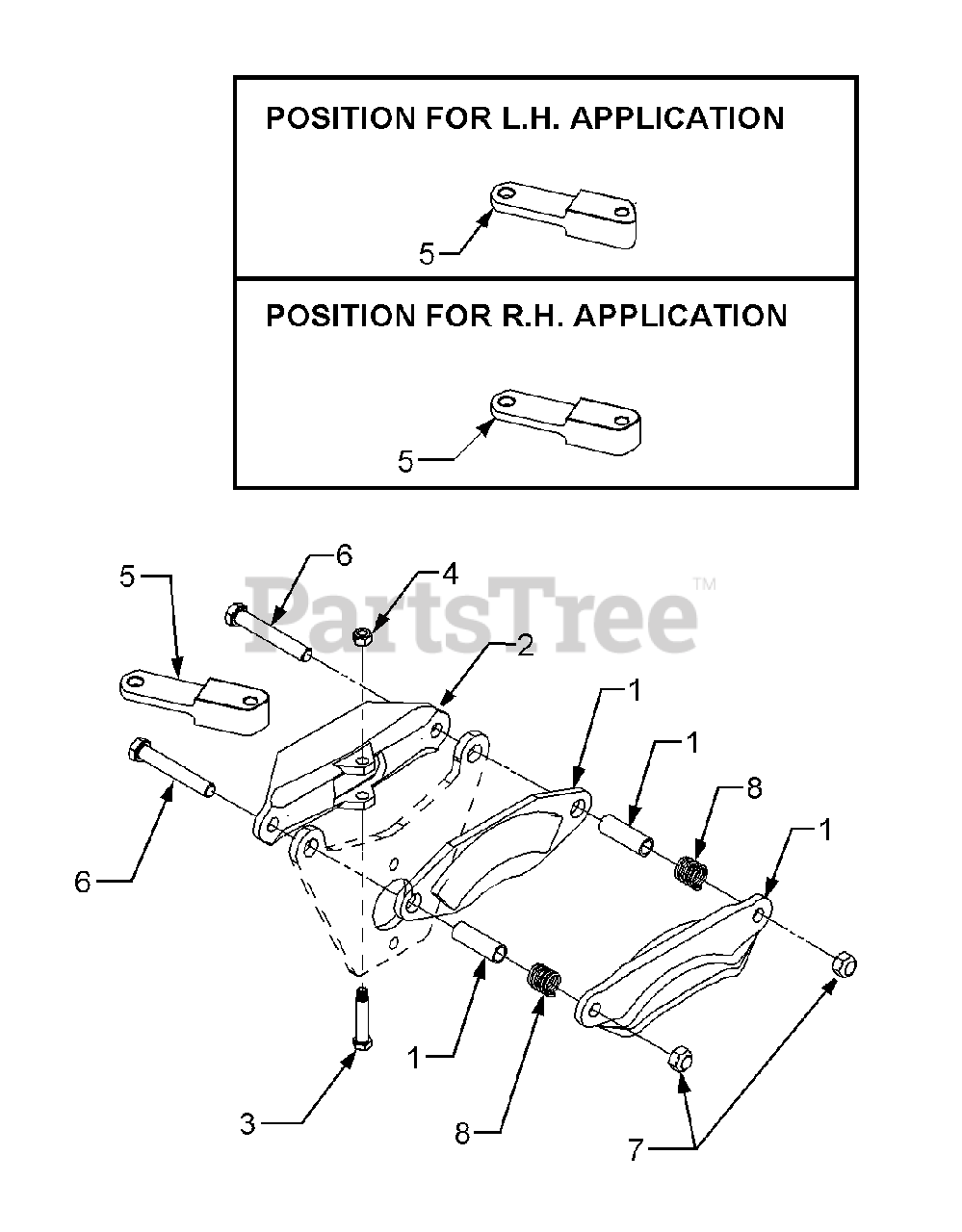

Brake Assembly Parts Diagram

  • Title

Cub Cadet 661-3013

Brake Assembly Complete

$

$

Not available

1

Cub Cadet 759-3688

Pad Kit, Brake

Note: (Includes Ref. Nos. 6 (Qty. 2), 7 (Qty. 2), and 8 (Qty. 2).)

$

$

Not available

2

Cub Cadet 703-0931

Bracket, Brake Actuator

$

$

Not available

3

Cub Cadet 710-3133

Screw, Shoulder

$

$

Not available

4

Cub Cadet 712-3055

Nut, Hex Top Lock, 1/4-20
(Superseded to 912-0291)

$

$

Not available

5

Cub Cadet 761-3059

Arm, Brake Actuator

$51.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0369

Screw, Hex Cap, 3/8-24 x 2.5 GR5

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 732-3042

Spring, Compression
(Superseded to 932-3042)

$4.99

$

In Stock, only 1 left!

0
