3185 (14A-665-100) - Cub Cadet Garden Tractor Transmission - Differential Parts Diagram

Garden Tractor

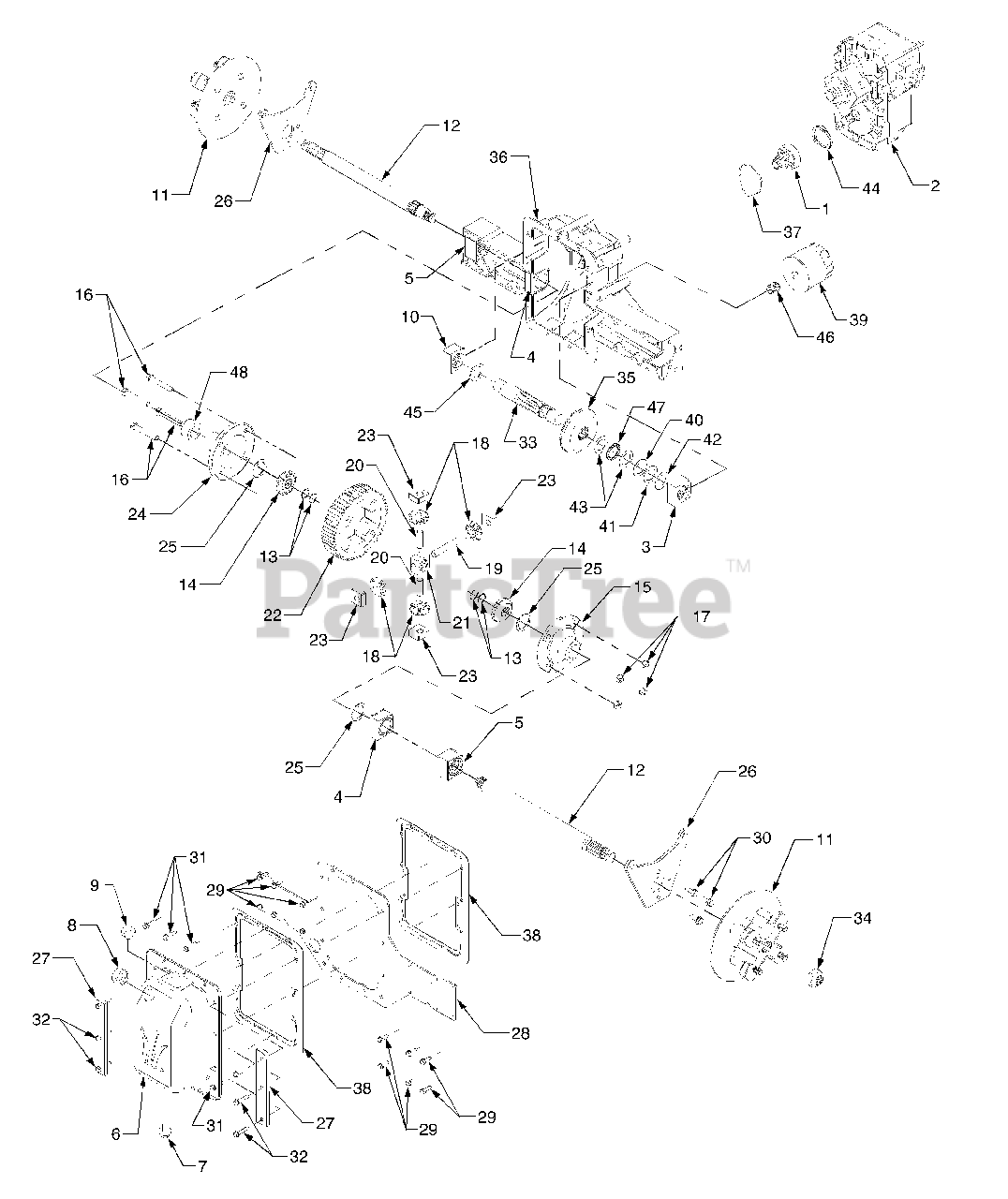

Transmission - Differential Parts Diagram

  • Title

Cub Cadet 618-3191A

Transmission Assembly, Complete

$

$

Not available

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz. Tube

$70.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 617-3001

Gear Assembly, Pinion 13T

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-3037

Bearing, Ball
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

2

Cub Cadet 759-3967

Hydrostatic Transmission Assy. Kit

$

$

Not available

3

Cub Cadet 618-3145

Bearing Block Assembly, Needle
(Superseded to 918-3145)

$

$

Not available

4

Cub Cadet 618-3149

Bearing Block Assembly

$

$

Not available

5

Cub Cadet 618-3150

Bearing Block Assembly

$

$

Not available

6

Cub Cadet 618-3162

Cover Assembly, Rear

Note: Includes Ref. Nos. 7, 8 and 9

$

$

Not available

7

Cub Cadet 710-1633

Plug, Drain, M14 x 1.5 x .827

$14.99

$

In Stock, only 2 left!

0

8

Cub Cadet 735-0277

Grommet, Rubber
(Superseded to 735-0277A)

$10.99

$

In Stock, only 2 left!

0

9

Cub Cadet 735-0279

Grommet

$7.49

$

In Stock, only 2 left!

0

10

Cub Cadet 618-3163

Bearing Block Assembly

$

$

Not available

11

Cub Cadet 618-3169A

Hub Assembly, Wheel

$

$

Not available

12

Cub Cadet 711-1308

Axle Shaft, 15.08 Long
(Superseded to 911-1308)

$200.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 716-0172

Retaining Ring
(Superseded to 916-0172)

$8.49

$

In Stock, only 3 left!

0

14

Cub Cadet 717-1119

Gear, Spur, 14T

$44.99

$

In Stock, only 3 left!

0

15

Cub Cadet 619-3086

Housing, Diff. Cover

$77.99

$

In Stock, only 3 left!

0

16

Cub Cadet 710-0331

Hex Cap Screw, 3/8-24 x 2.25 GR5

$6.99

$

In Stock, Qty 7

0

17

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 717-1120

Gear, Differential 10T

$32.99

$

In Stock, only 4 left!

0

19

Cub Cadet 717-1173

Shaft, Cross, .5 x 3.485

$38.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 717-1178

Shaft, Cross, Special

$28.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 717-1180

Differential Pinion Block

$33.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 717-3466

Gear, Spur 60T

$280.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 718-3101

Block, Thrust Miter

$13.99

$

In Stock, only 2 left!

0

24

Cub Cadet 719-3142

Housing, Differential Cover

$

$

Not available

25

Cub Cadet 736-0558

Washer, Flat, 1.187 x 1.56 x .062

$5.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 661-3015

Bracket, Brake Mounting

$

$

Not available

27

Cub Cadet 703-3188A

Block, Transmission Cover

$

$

Not available

28

Cub Cadet 703-3316

Plate, Transmission

$

$

Not available

29

Cub Cadet 710-0642

Screw, Hex Wash. Hd. Tapp 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0650

Screw, Hex Wash. Hd. Tapp 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-0788

Screw, Hex Wash. Hd. Tapp 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

32

Cub Cadet 710-0809

Screw, Hex Wash. Hd. Tapp 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

33

Cub Cadet 711-1205A

Shaft, Output 9T

$

$

Not available

34

Cub Cadet 712-0682

Nut, Lock, 7/8-14

$13.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 717-3449

Gear, Bevel 54T

$427.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 759-3936

Differential Housing Service Kit

$

$

Not available

37

Cub Cadet 721-0261

O-Ring, 2.75 x .103

$9.99

$

In Stock, only 1 left!

0

38

Cub Cadet 721-0467

Gasket
(Superseded to 721P0467)

$49.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0423

Washer, Flat Shim, 1.0 x 1.56 x .010

$

$

Not available

41

Cub Cadet 736-0424

Washer, Flat Shim, 1.0 x 1.56 x .020
(Superseded to 936-0424)

$6.99

$

In Stock, only 3 left!

0

42

Cub Cadet 736-0431

Washer, Flat Shim, 1.0 x 1.56 x .015
(Superseded to 936-0431)

$

$

Not available

43

Cub Cadet 736-0615

Washer, Thrust, 1.007 x 1.542 x .03

$8.99

$

In Stock, only 2 left!

0

44

Cub Cadet 736-0619

Washer, Spring

$18.99

$

In Stock, only 1 left!

0

45

Cub Cadet 736-3046A

Washer, Flat, 1.01 x 1.86 x .060

$8.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 737-3022

Fitting, Filter Nipple
(Superseded to 937-3022)

$15.99

$

In Stock, only 1 left!

0

47

Cub Cadet 741-3083

Bearing, Needle Thrust

$16.99

$

In Stock, only 1 left!

0

48

Cub Cadet 750-3238

Spacer, Axle, 1.188 x 1.665 x .67

$

$

Not available
