3185 (14A-665-100) - Cub Cadet Garden Tractor Hood, Grille And Side Panels Parts Diagram

Garden Tractor

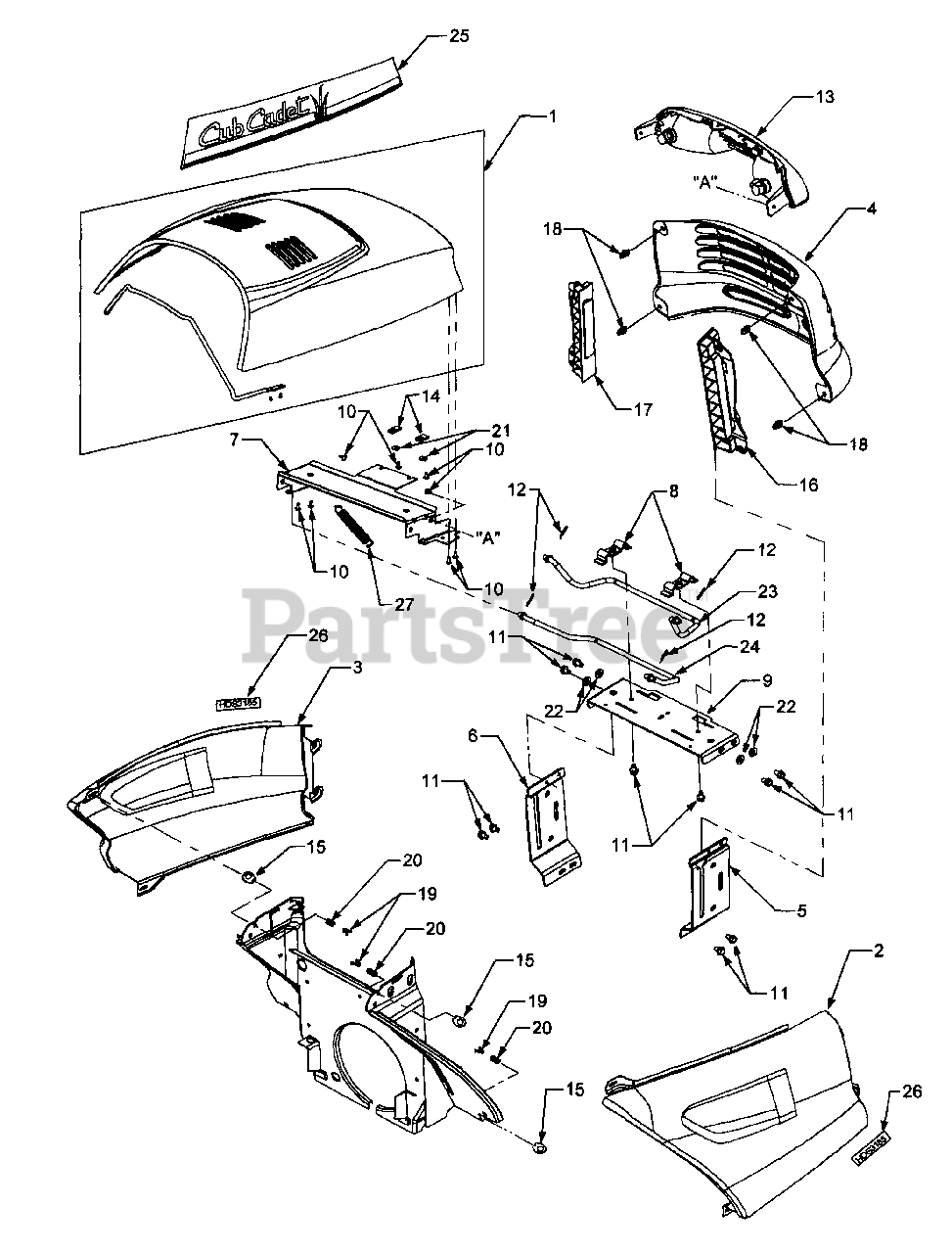

Hood, Grille And Side Panels Parts Diagram

  • Title

1

Cub Cadet 759-3865-0499

Hood w/Support Rod Assembly

$

$

Currently unavailable

2

Cub Cadet 703-2946-0499

Side Panel, RH

$344.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2947-0499

Side Panel, LH

$

$

Not available

4

Cub Cadet 703-2950-0499

Grille, Series 3000

$163.99

$

Usually ships in 3-6 days

0

Cub Cadet 777I20314

Graphic, Warning

$

$

Not available

5

Cub Cadet 703-2984-0498

Support, Grille - RH
(Superseded to 703-2984-0637)

$

$

Not available

6

Cub Cadet 703-2985-0498

Support, Grille - LH

$

$

Not available

7

Cub Cadet 703-3070-0499

Bracket, Upper Hood
(Superseded to 703-3070B-0499)

$

$

Not available

8

Cub Cadet 703-3071

Bracket, Rod Retainer

$

$

Not available

9

Cub Cadet 703-3101-0498

Support, Hood
(Superseded to 703-3101B-0716)

$

$

Not available

10

Cub Cadet 710-0351

Screw, Truss Hd, Tapp, #10-16 x .5

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0607

Screw, Hex Wash. Hd. Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 9

0

12

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 725-3257A

Headlight Assembly
(Superseded to 759-3947)

Note: (Lens glued to reflector on units built after Mfg. Date 1H018G)

$179.99

$

In Stock, only 3 left!

0

Cub Cadet 725-3161A

Bulb Assembly Only, Headlamp
(Superseded to 925-3161A)

$52.99

$

In Stock, only 2 left!

0

Cub Cadet 731-3150A

Reflector
(Superseded to 759-3947)

$179.99

$

In Stock, only 3 left!

0

Cub Cadet 731-3138A

Lens
(Superseded to 759-3947)

$179.99

$

In Stock, only 3 left!

0

14

Cub Cadet 726-0139

Nut, U-type Speed, #10

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-3056

Latch, 1/4 Turn

$7.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-3227

Mount, Side Panel/Grille RH

$

$

Not available

17

Cub Cadet 731-3228

Mount, Side Panel/Grille LH

$

$

Not available

18

Cub Cadet 731-3229

Fastener, Grille Mount
(Superseded to 759-04312)

$21.99

$

In Stock, only 4 left!

0

19

Cub Cadet 732-0936

Clip, Spring
(Superseded to 726-05561)

$

$

Not available

20

Cub Cadet 732-0937

Spring, Compression

$8.49

$

In Stock, only 2 left!

0

21

Cub Cadet 736-0400

Washer, Flat, .194 x .62 x .063

$5.49

$

In Stock, Qty 11

0

22

Cub Cadet 736-3008

Washer, Flat, .344 x .75 x .120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 747-3337

Rod, Upper Hood
(Superseded to 747-3337A)

$

$

Not available

24

Cub Cadet 747-3338

Rod, Upper Hood

$

$

Not available

25

Cub Cadet 777D02019

Graphic, Hood - RH

$

$

Not available

Cub Cadet 777D02018

Graphic, Hood - LH

$

$

Not available

26

Cub Cadet 777D00425

Graphic, HDS 3185

$

$

Not available

27

Cub Cadet 732-0470A

Spring, Extension
(Superseded to 932-0470A)

$9.99

$

In Stock, only 4 left!

0
