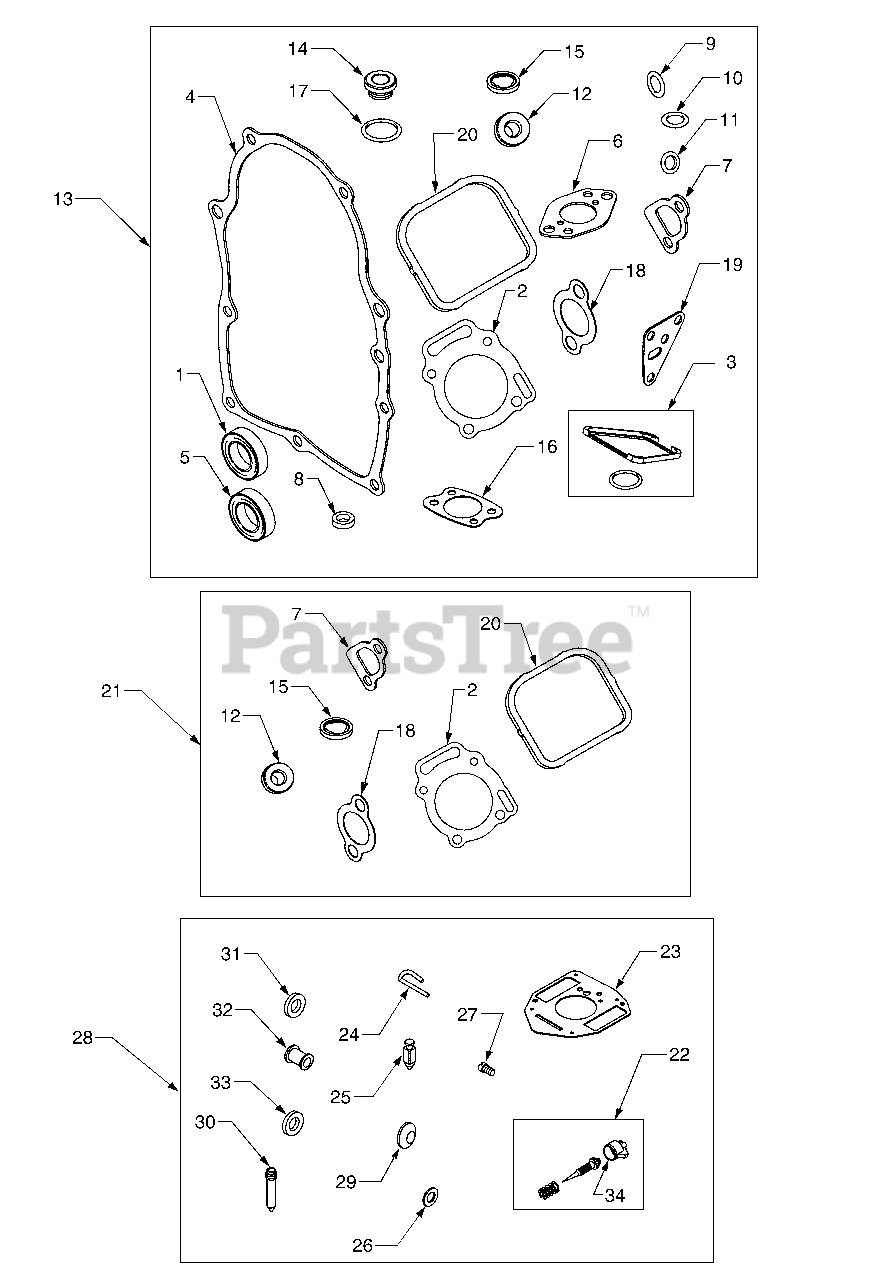

3185 (14A-665-100) - Cub Cadet Garden Tractor Gasket Set And Overall Kits Parts Diagram

Garden Tractor

Gasket Set And Overall Kits Parts Diagram

  • Title

1

Cub Cadet BS-805101

Seal, Oil
(Superseded to BS-805101S)

$13.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-806086

Gasket, Cylinder Head
(Superseded to BS-845884)

$30.99

$

In Stock, Qty 10

0

3

Cub Cadet BS-807688

Gasket, Breather
(Superseded to BS-844986)

$8.49

$

In Stock, only 3 left!

0

4

Cub Cadet BS-806190

Gasket, Crankcase
(Superseded to BS-845254)

$45.99

$

In Stock, Qty 13

0

5

Cub Cadet BS-805049

Seal, Oil
(Superseded to BS-805049S)

$12.99

$

In Stock, Qty 20+

0

6

Cub Cadet BS-805700

Gasket, Intake
(Superseded to BS-691694)

$2.99

$

In Stock, Qty 20+

0

7

Cub Cadet BS-805023

Gasket, Intake
(Superseded to BS-692035)

$3.49

$

In Stock, Qty 17

0

8

Cub Cadet BS-805054

Seal, Governor Shaft
(Superseded to BS-842826)

$7.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-806191

Seal, O-Ring (Crankcase Cover)
(Superseded to BS-692154)

$5.99

$

In Stock, Qty 20+

0

10

Cub Cadet BS-805058

Seal, O-Ring (Oil Pump)
(Superseded to BS-690681)

$5.99

$

In Stock, only 2 left!

0

11

Cub Cadet BS-805316

Seal, O-Ring (Oil Pump Screen)
(Superseded to BS-690690)

$5.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-805420

Washer
(Superseded to BS-691766)

$6.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-808389

Gasket Set
(Superseded to BS-847319)

$123.99

$

In Stock, only 2 left!

0

14

Cub Cadet BS-281370

Seal, Fill Tube
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-271983

Seal, Fill Plug
(Superseded to BS-809500)

$10.99

$

In Stock, Qty 15

0

16

Cub Cadet BS-805655

Gasket, Air Cleaner
(Superseded to BS-692081)

$5.49

$

In Stock, only 2 left!

0

17

Cub Cadet BS-805386

Seal, O-ring
(Superseded to BS-690611)

$7.49

$

In Stock, only 1 left!

0

18

Cub Cadet BS-805024

Gasket, Exhaust
(Superseded to BS-691613)

$5.49

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-805250

Gasket, Filter Adapter
(Superseded to BS-692063)

$4.49

$

In Stock, Qty 5

0

20

Cub Cadet BS-806039

Gasket, Rocker Cover
(Superseded to BS-806039S)

$7.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-808391

Overhaul Kit, Valve
(Superseded to BS-841191)

$89.99

$

In Stock, only 2 left!

0

22

Cub Cadet BS-808399

Valve, Idle Adjust

$33.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-805541

Gasket, Carburetor Body
(Superseded to BS-692077)

$25.99

$

In Stock, Qty 20+

0

24

Cub Cadet BS-805545

Pin, Float Hinge

$

$

Not available

25

Cub Cadet BS-805547

Valve, Fuel Inlet
(Superseded to BS-808798)

$

$

Not available

26

Cub Cadet BS-805549

Washer

$

$

Not available

27

Cub Cadet BS-808126

Main Jet

$

$

Currently unavailable

28

Cub Cadet BS-808395

Overhaul Kit, Carburetor
(Superseded to BS-842881)

$149.99

$

In Stock, Qty 6

0

29

Cub Cadet BS-805559

Plug, Welch
(Superseded to BS-690727)

$4.49

$

In Stock, only 2 left!

0

30

Cub Cadet BS-806128

Nozzle, Carburetor

$35.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-806131

Collar, Throttle

$5.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-805543

Collar, Choke

$

$

Not available

33

Cub Cadet BS-805544

Seal, Shaft

$

$

Not available

34

Cub Cadet BS-805862

Cap, Limiter
(Superseded to BS-691516)

$8.49

$

Usually ships in 2-12 days

0
