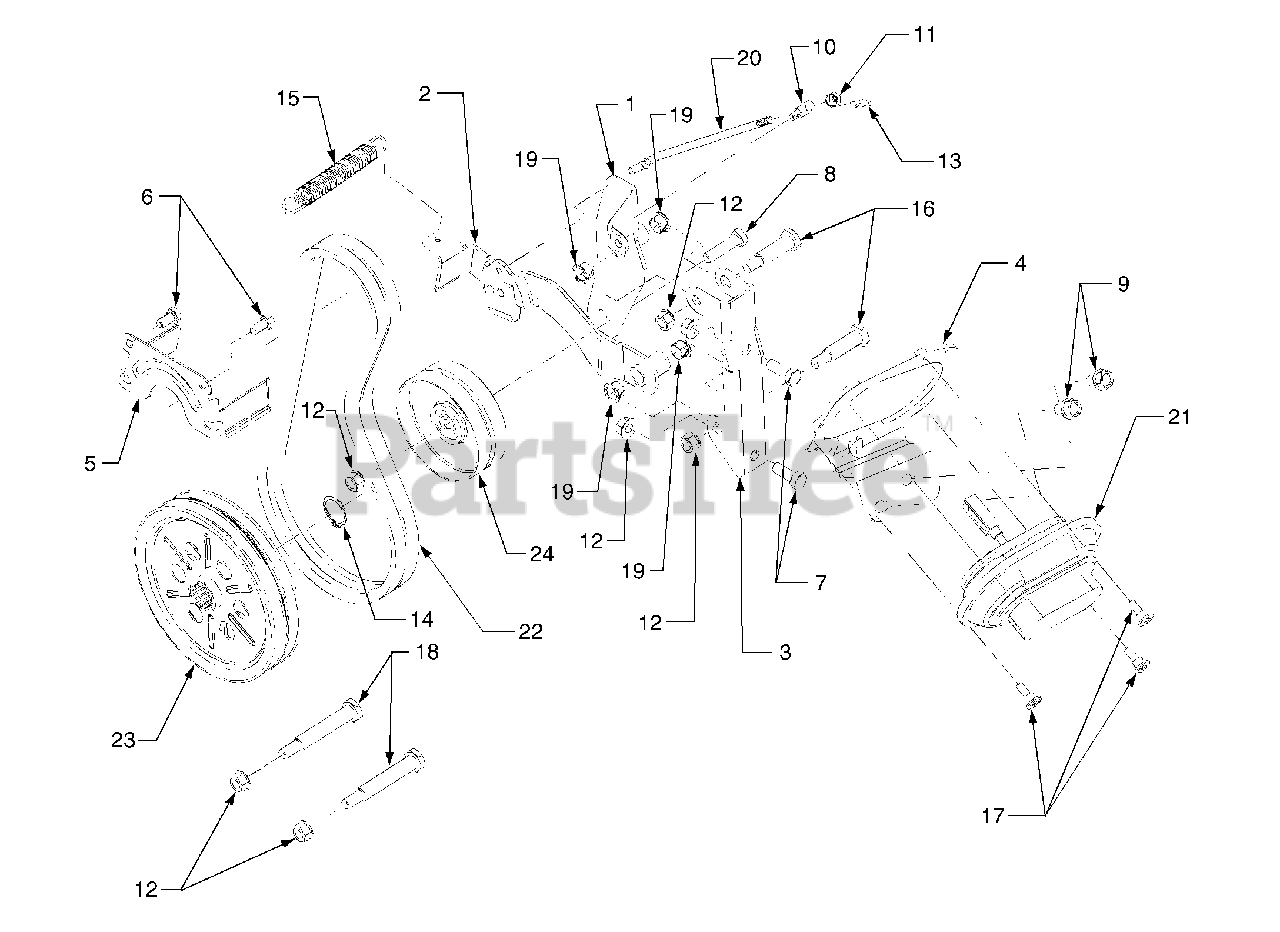

3185 (14A-665-100) - Cub Cadet Garden Tractor Front PTO Parts Diagram

Garden Tractor

Front PTO Parts Diagram

  • Title
1

Cub Cadet 603-0442-0637

Bracket, Idler

$114.99

$

In Stock, only 2 left!

0

2

Cub Cadet 759-3867

Bracket Assembly, Brake

$

$

Not available

3

Cub Cadet 703-3009-0637

Bracket, PTO Mounting

$

$

Not available

4

Cub Cadet 703-3161-0498

Bracket, Actuator

$

$

Not available

$38.99

$

In Stock, only 2 left!

0

6

Cub Cadet 710-0237

Screw, Hex Cap 5/16-24 x .625 GR5

$4.49

$

In Stock, only 1 left!

0

7

Cub Cadet 710-0514

Screw, Hex Cap 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0520

Screw, Hex Cap 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 7

0

9

Cub Cadet 710-0623

Screw, Hex Wash. Hd. Tapp 3/8-16 x .75

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet 711-1196

Ferrule, Brake Adjustment

$

$

Not available

11

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 17

0

12

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 716-0102

Snap Ring, 1.0 Dia Shaft

$5.49

$

In Stock, Qty 20+

0

15

Cub Cadet 732-0470A

Spring, Extension, .530 x 4.74
(Superseded to 932-0470A)

$9.99

$

In Stock, Qty 7

0

16

Cub Cadet 738-0213

Shoulder Screw, .498 x 1.45

$7.99

$

In Stock, only 2 left!

0

17

Cub Cadet 738-0706B

Shoulder Screw, .375 x .28
(Superseded to 738-0706D)

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 738-3056

Shoulder Screw
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

19

Cub Cadet 741-0491

Bearing, Nylon Flange

$5.49

$

In Stock, only 4 left!

0

20

Cub Cadet 747-3322

Rod, PTO Brake

$

$

Not available

21

Cub Cadet 751-3158

Vacuum Actuator
(Superseded to 759-3963)

$

$

Not available

22

Cub Cadet 754-3084

V-Belt, A-Section x 37.63
(Superseded to 954-3084)

Note: (Set of two belts)

$85.99

$

In Stock, Qty 20+

0

23

Cub Cadet 756-3092

Pulley, PTO Drive. 6.75-Double

$124.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 756-3094

Pulley, Flat Idler, 4.0

$85.99

$

In Stock, only 1 left!

0
