3185 (14A-665-100) - Cub Cadet Garden Tractor Fender And Running Board Parts Diagram

Garden Tractor

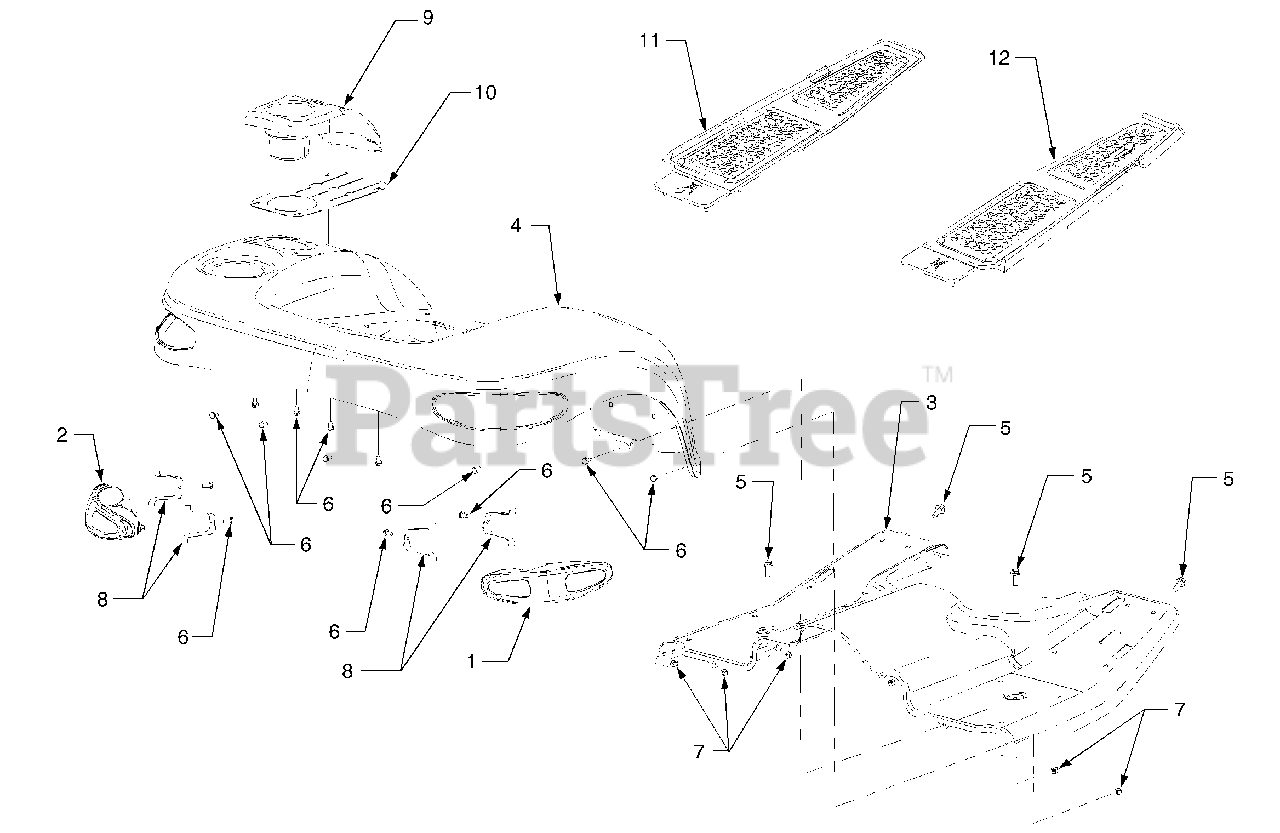

Fender And Running Board Parts Diagram

  • Title
1

Cub Cadet 625-0023

Light Assembly, Rear RH
(Superseded to 925-0023B)

$131.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 725-3262

Bulb Only, Tail Light
(Superseded to 925-3262)

Note: Not shown

$15.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 725-3263

Bulb Only, Reverse Indicator Light
(Superseded to 925-3263)

Note: Not shown

$

$

Not available

2

Cub Cadet 625-0024

Light Assembly, Rear LH
(Superseded to 925-0024B)

$129.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 725-3262

Bulb Only, Tail Light
(Superseded to 925-3262)

Note: Not shown

$15.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 725-3263

Bulb Only, Reverse Indicator Light
(Superseded to 925-3263)

Note: Not shown

$

$

Not available

3

Cub Cadet 703-2977-0498

Running Board
(Superseded to 903-2977-0716)

$

$

Not available

3

Cub Cadet 777D00432

Graphic, Direct Drive

Note: Not shown

$

$

Not available

3

Cub Cadet 777I20094

Graphic, Starting Instructions

Note: Not shown

$

$

Not available

3

Cub Cadet 777S30017

Graphic, Warning

Note: Not shown

$

$

Not available

4

Cub Cadet 703-2978-0498

Fender
(Superseded to 703-2978-0716)

$

$

Not available

4

Cub Cadet 777D00431

Graphic, 3000 Series
(Superseded to 977D00431)

Note: Not shown

$

$

Not available

5

Cub Cadet 710-0602

Screw, Hex Wash. Hd. Tapp 5/16-18 x 1.

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 x .5 GR5

$4.99

$

In Stock, Qty 11

0

7

Cub Cadet 712-0324

Nut, Hex Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

8

Cub Cadet 726-3057

Clip, Tail Light
(Superseded to 726-3057A)

$

$

Not available

9

Cub Cadet 731-3239

Cover, Lift Lever

$

$

Not available

10

Cub Cadet 731-3253

Flap, Lift Lever

$

$

Not available

11

Cub Cadet 735-0275

Pad. Floor LH

$59.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 735-0276

Pad. Floor RH

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 629-3059

Harness, Tail Light

Note: Not shown

$

$

Not available
