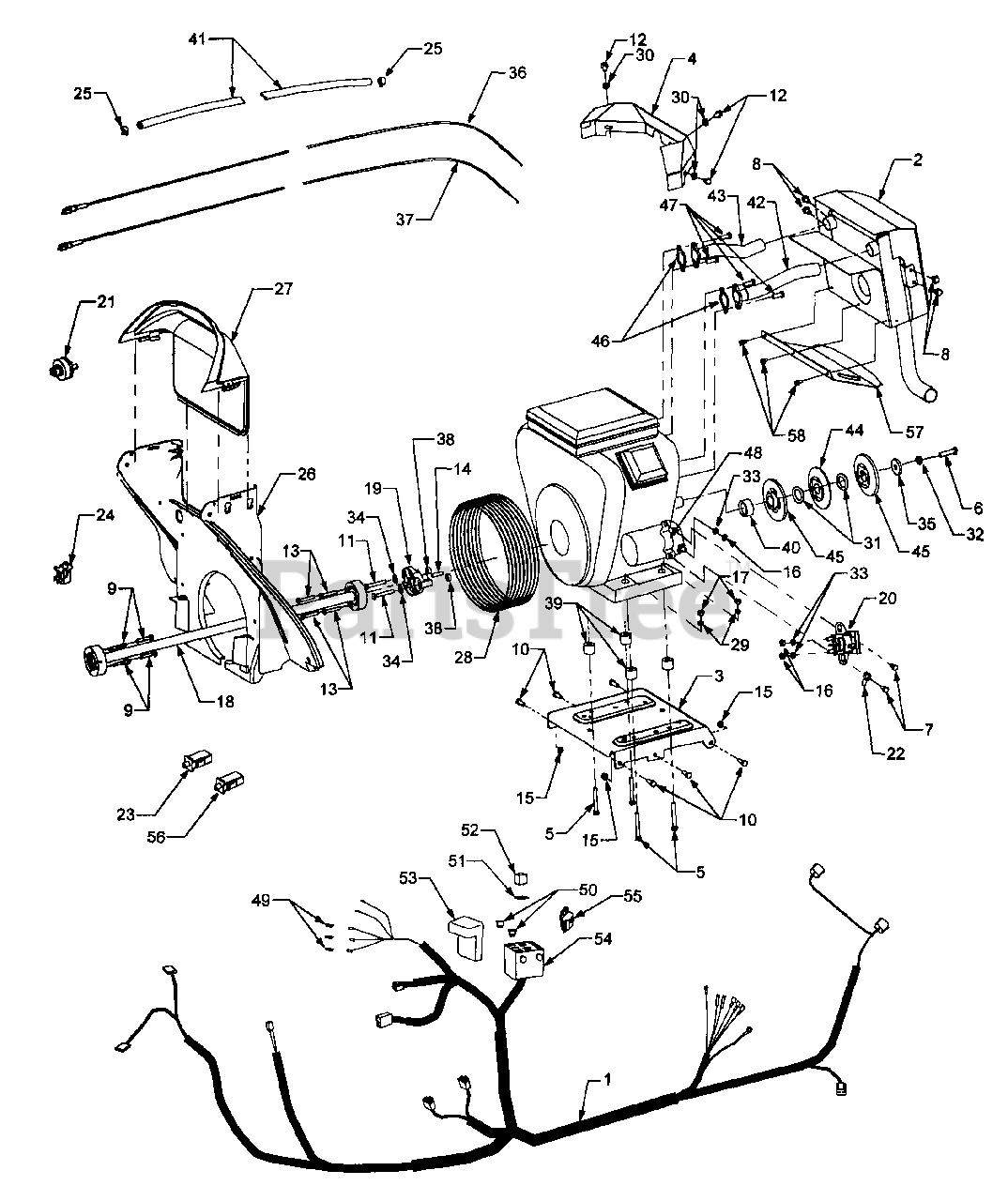

3185 (14A-665-100) - Cub Cadet Garden Tractor Drive Shaft And Engine Connections Parts Diagram

Garden Tractor

Drive Shaft And Engine Connections Parts Diagram

  • Title

1

Cub Cadet 629-3047

Harness, Wire

Note: NLA

$

$

Not available

1

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

1

Cub Cadet 926-0154

Tie, Pushmount

$6.49

$

Usually ships in 3-6 days

0

1

Cub Cadet 726-3055

Clip, Cable

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 651-3003

Muffler Assembly

$

$

Not available

3

Cub Cadet 703-2909-0716

Plate, Engine Mounting

$

$

Not available

4

Cub Cadet 703-2994

Shield, Muffler Heat

Note: NLA

$

$

Not available

5

Cub Cadet 710-0378

Screw, Hex Cap, 5/16-18 x 2.5 GR5

$4.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-0459A

Screw, Hex Cap, 3/8-24 x 1.5 GR5

$6.99

$

In Stock, Qty 8

0

7

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0607

Screw, Hex Wash. Hd. Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 9

0

9

Cub Cadet 710-0778

Screw, Hex Wash. Hd. Tapp 1/4-20 x 1.5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3288

Screw, Hex Cap Lock 1/4-20 x 1.62 GR5

$6.99

$

In Stock, Qty 12

0

10

Cub Cadet 710-3038

Screw, Hex Cap, 5/16-18 x .875 GR5

$4.99

$

In Stock, only 3 left!

0

11

Cub Cadet 710-3103

Screw, Hex Cap, 5/16-18 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3209

Screw, Hex Cap, M6 - 1.0 x 10MM

$8.49

$

In Stock, Qty 13

0

13

Cub Cadet 710-3288

Screw, Hex Cap, Lock 1/4-20 x 1.62 GR5

$6.99

$

In Stock, Qty 12

0

14

Cub Cadet 711-3330

Pin, Locating

Note: NLA

$

$

Not available

15

Cub Cadet 912-0429

Nut, Hex Insert Lock, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3006

Nut, Hex, 1/4-20

$4.99

$

In Stock, Qty 17

0

17

Cub Cadet 912-3010

Nut, Hex , 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 918-3092

Shaft, Drive, 28.75 Long

$

$

Not available

18

Cub Cadet 759-3764

Drive Barrels Kit

Note: Not shown (2 used per tractor)

$27.99

$

In Stock, Qty 20+

0

19

Cub Cadet 719-3096

Adapter, Drive Shaft
(Superseded to KH-24-029-12-S)

$33.99

$

In Stock, only 1 left!

0

20

Cub Cadet 925-1426A

Solenoid

$26.99

$

In Stock, Qty 20+

0

21

Cub Cadet 925-1717

Switch, Ignition

$52.99

$

In Stock, only 4 left!

0

21

Cub Cadet 959-3476A

Key, Ignition
(Superseded to 925-0201)

Note: (Set of 2)(not shown)

$9.49

$

In Stock, only 1 left!

0

21

Cub Cadet 725-1341B

Key, Ignition

Note: (no logo)(not shown)

$10.99

$

In Stock, only 1 left!

0

22

Cub Cadet 725-3147

Quick Connect Lug

$

$

Not available

23

Cub Cadet 925-3164A

Switch, Plunger

Note: (reverse switch)

$40.99

$

In Stock, Qty 20+

0

24

Cub Cadet 925-3167

Switch, Snap Mount

Note: (seat switch)

$14.99

$

In Stock, only 2 left!

0

25

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 731-3221A

Baffle, Lower Air

$98.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-3231A

Baffle, Upper Air

$

$

Not available

28

Cub Cadet 731-3266

Boot, Intake

Note: NLA

$

$

Not available

29

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 936-0119

Washer, Flat, .281 x .50 x .06

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 936-0142

Washer, Flat Shim (Hdn)
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 936-0163

Washer, Lock, 3/8
(Superseded to 736-0163)

$

$

Not available

33

Cub Cadet 936-0169

Washer, Lock, 1/4
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 936-0329

Washer, Flat, .344 x .75 x .12

$4.49

$

In Stock, Qty 9

0

35

Cub Cadet 936-3008

Washer, Flat, .417 x 1.5 x .225

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 746-3075

Cable, Throttle Control

$

$

Not available

37

Cub Cadet 746-3076

Cable, Choke Control

$

$

Not available

38

Cub Cadet 750-0507

Spacer, .38 x .62 x .275
(Superseded to 750-04776)

$5.49

$

In Stock, only 3 left!

0

39

Cub Cadet 750-3203

Spacer, Engine Mtg. 1.0 x .335 x .875

$

$

Not available

40

Cub Cadet 750-3239

Spacer, Crankshaft

$

$

Not available

41

Cub Cadet 751-10349-72

Hose, Fuel Line

Note: (68 in. required)

$60.99

$

In Stock, only 1 left!

0

42

Cub Cadet 751-3156

Pipe, Exhaust RH

$

$

Not available

43

Cub Cadet 751-3157

Pipe, Exhaust LH

$

$

Not available

44

Cub Cadet 756-3101

Pulley, Center

$

$

Not available

45

Cub Cadet 756-3102

Pulley, Half

Note: NLA

$

$

Not available

46

Cub Cadet BS-691613

Gasket, Exhaust

$5.49

$

In Stock, only 3 left!

0

47

Cub Cadet BS-691902

Screw, Exhaust Pipe

$3.49

$

In Stock, only 4 left!

0

48

Cub Cadet BS-222934

Bracket, Solenoid Mtg.

Note: NLA

$

$

Not available

48

Cub Cadet BS-393514

Clamp, Band

Note: NLA

$

$

Currently unavailable

49

Cub Cadet 925-1365

Bulb, Indicator

$10.99

$

In Stock, only 1 left!

0

50

Cub Cadet 725-3243

Fuse, 25 Amp

$5.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 921-0342

Gasket, Silicone

$7.99

$

In Stock, only 3 left!

0

52

Cub Cadet 925-1648

Relay, PTO
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 7

0

53

Cub Cadet 959-3869

Cover, Fuse Box

$

$

Not available

54

Cub Cadet 959-3869

Box, Fuse

$

$

Not available

55

Cub Cadet 925-3251

Sensor, Voltage

$49.99

$

In Stock, only 1 left!

0

56

Cub Cadet 925-3164A

Switch, Plunger

Note: (brake switch)

$40.99

$

In Stock, Qty 20+

0

57

Cub Cadet 703-3398

Shield, Lower Exhaust

$65.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-3007
