3185 (14A-665-100) - Cub Cadet Garden Tractor Blower Housing And Flywheel Parts Diagram

Garden Tractor

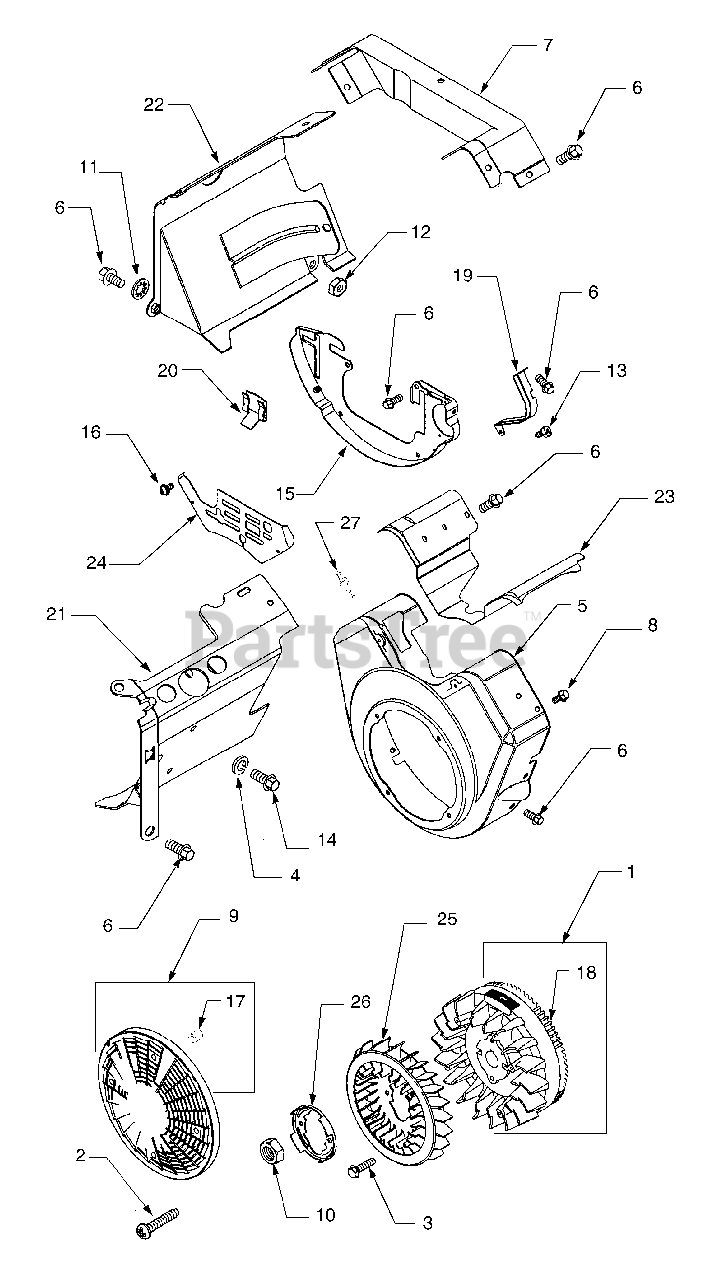

Blower Housing And Flywheel Parts Diagram

  • Title

1

Cub Cadet BS-808132

Flywheel

$

$

Not available

2

Cub Cadet BS-94417

Screw, Phillips
(Superseded to BS-691647)

$3.99

$

In Stock, only 4 left!

0

3

Cub Cadet BS-94627

Screw, Hex

$

$

Not available

4

Cub Cadet BS-805449

Washer, Lock

$

$

Not available

5

Cub Cadet BS-808219

Housing, Blower
(Superseded to BS-690929)

$162.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-805406

Screw, Hex
(Superseded to BS-691982)

$3.99

$

In Stock, only 4 left!

0

7

Cub Cadet BS-807978

Cover, Air Guide

$

$

Not available

8

Cub Cadet BS-805025

Screw, Hex

$

$

Not available

9

Cub Cadet 703-2164

Screen, Rotating

$

$

Not available

10

Cub Cadet BS-806028

Nut, Hex

$

$

Not available

11

Cub Cadet BS-806101

Washer, Lock

$

$

Not available

12

Cub Cadet BS-805383

Nut, Hex
(Superseded to 712-0689)

$

$

Not available

13

Cub Cadet BS-805260

Screw, Hex

$

$

Not available

14

Cub Cadet BS-805448

Screw, Hex
(Superseded to BS-692067)

$3.99

$

In Stock, Qty 9

0

15

Cub Cadet BS-807663

Plate, Back

$

$

Not available

16

Cub Cadet BS-805009

Screw, Hex
(Superseded to BS-690677)

$3.99

$

In Stock, only 2 left!

0

17

Cub Cadet BS-805402

Spacer
(Superseded to BS-691500)

$7.49

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-807805

Gear, Ring

$

$

Currently unavailable

19

Cub Cadet BS-805505

Guard, Flywheel

$

$

Not available

20

Cub Cadet BS-224356

Clip, Debris

$

$

Not available

21

Cub Cadet BS-808099

Cover, Air Guide (Cylinder #1)

$

$

Not available

22

Cub Cadet BS-808100

Cover, Air Guide (Cylinder #2)

$

$

Not available

23

Cub Cadet BS-805738

Cover, Valley

$

$

Not available

24

Cub Cadet BS-805841

Cover, Carburetor

$

$

Not available

25

Cub Cadet BS-808082

Fan, Flywheel

$

$

Not available

26

Cub Cadet BS-224413

Retainer, Fan
(Superseded to BS-690452)

$10.99

$

Usually ships in 2-12 days

0

27

Cub Cadet 727-3156

Fitting, Hose Barb

$

$

Not available
