3184 (14A-641L100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Transmission - Differential Parts Diagram

Garden Tractor

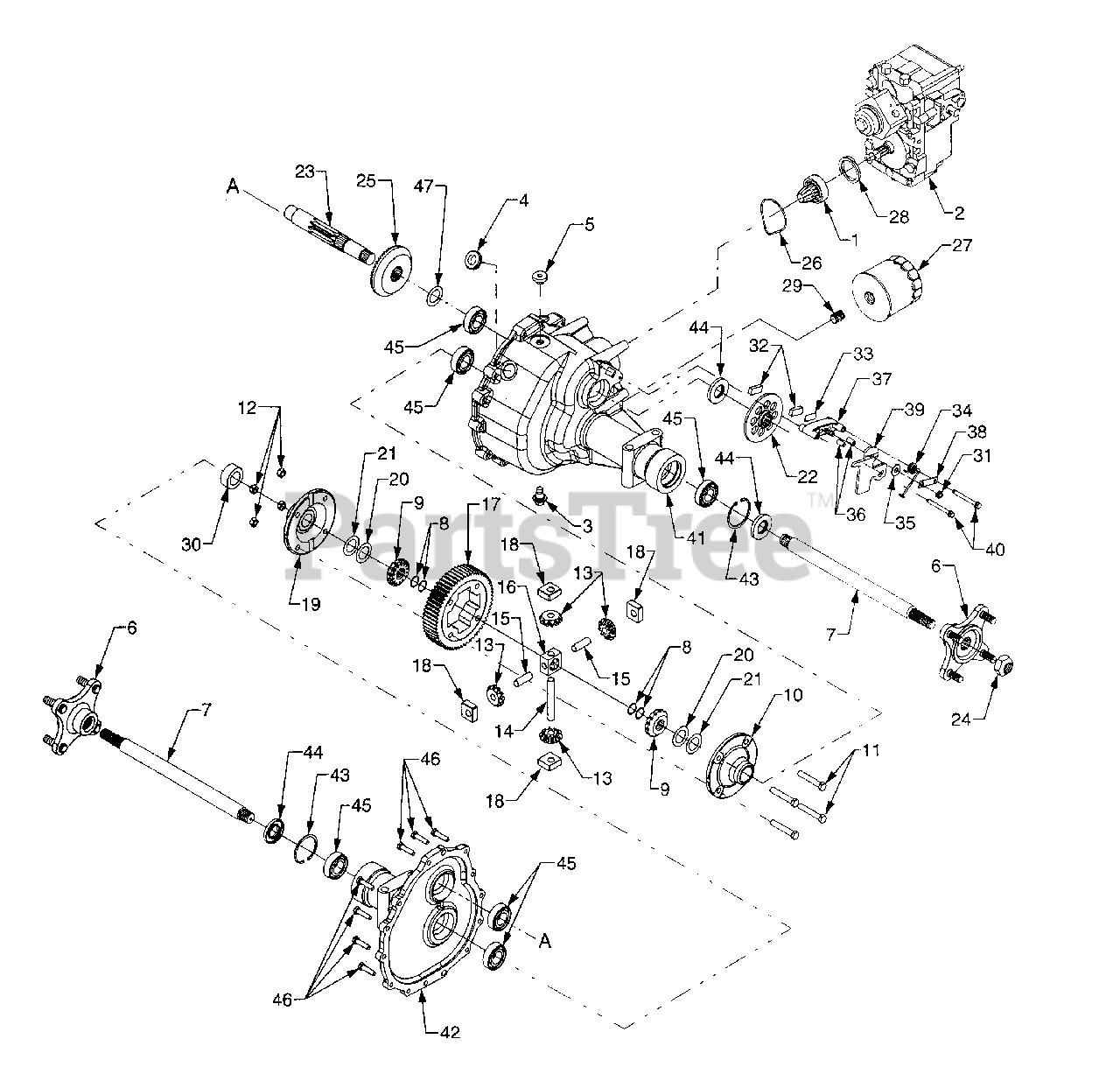

Transmission - Differential Parts Diagram

  • Title

Cub Cadet 618-3236

Transmission Assembly
(Superseded to 918-3236)

Note: Complete - DOES NOT include Ref. Nos. 1, 2, 6, 24, 26, 27, 28 and 29.

$

$

Not available

1

Cub Cadet 617-3001

Gear Assembly, Pinion 13T.

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-3037

Bearing, Ball
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

2

Cub Cadet 618-3214

Hydrostatic Transmission Assy.
(Superseded to 918-3214)

Note: For components see separate parts breakdown.

$2213.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1633

Plug, Drain, M14 x 1.5 x .827

$14.99

$

In Stock, only 2 left!

0

4

Cub Cadet 735-0277A

Grommet, Rubber

$10.99

$

In Stock, only 2 left!

0

5

Cub Cadet 735-0279

Grommet

$7.49

$

In Stock, only 2 left!

0

6

Cub Cadet 618-0579

Hub Assembly, Wheel
(Superseded to 618P0579B)

$77.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 711-1386

Axle Shaft,

$

$

Not available

8

Cub Cadet 716-0172

Retaining Ring
(Superseded to 916-0172)

$8.49

$

In Stock, only 3 left!

0

9

Cub Cadet 717-1119

Gear, Spur, 14T

$44.99

$

In Stock, only 3 left!

0

10

Cub Cadet 719-3165

Housing, Diff. Cover RH

$

$

Not available

11

Cub Cadet 710-0331

Hex Cap Screw, 3/8-24 x 2.25 GR5

$6.99

$

In Stock, Qty 7

0

12

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 717-1120

Gear, Differential 10T

$32.99

$

In Stock, only 4 left!

0

14

Cub Cadet 717-1173

Shaft, Cross, .5 x 3.485

$38.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 717-1178

Shaft, Cross, Special

$28.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 717-1180

Differential Pinion Block

$33.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 717-3466

Gear, Spur 60T

$280.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 718-3101

Block, Thrust Miter

$13.99

$

In Stock, only 2 left!

0

19

Cub Cadet 719-3164

Housing, Differential Cover LH

$

$

Not available

20

Cub Cadet 736-0420

Washer, Flat, 1.0 x 1.56 x .040
(Superseded to 936-0420)

$

$

Not available

21

Cub Cadet 736-0424

Washer, Flat, 1.0 x 1.56 x .020
(Superseded to 936-0424)

$6.99

$

In Stock, only 3 left!

0

22

Cub Cadet 761-0215

Disc, Brake

$20.99

$

In Stock, only 1 left!

0

23

Cub Cadet 711-1385A

Shaft, Output 9T

$180.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 712-1329

Nut, Lock, 3/4-16

$12.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 717-3449

Gear, Bevel 54T

$427.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 721-0519

Seal, Gland O-Ring

$35.99

$

In Stock, only 1 left!

0

27

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0619

Washer, Spring

$18.99

$

In Stock, only 1 left!

0

29

Cub Cadet 737-3022

Fitting, Filter Nipple
(Superseded to 937-3022)

$15.99

$

In Stock, only 1 left!

0

30

Cub Cadet 750-3254

Spacer, Axle, 1.0 x 1.665 x .71

$

$

Not available

31

Cub Cadet 712-0273

Nut, Hex Insert Lock, 5/16-24
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 717-0678

Pad, Brake
(Superseded to 917-0678)

$7.49

$

In Stock, Qty 5

0

33

Cub Cadet 717-0682

Plate, Puck
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 9

0

34

Cub Cadet 732-0925

Spring, Torsion

$9.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0371

Washer, Flat, .343 x .88 x .062

$4.49

$

In Stock, only 3 left!

0

36

Cub Cadet 741-0343

Pin, Brake Actuator

$10.99

$

In Stock, Qty 7

0

37

Cub Cadet 761-0207A

Yoke, Brake

$40.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 761-0208

Bracket, Brake Anti-Rotation

$7.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 761-3074

Arm, Brake Actuator

$24.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 710-1206

Screw, Hex Wash. Hd. Tapp 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

41

Cub Cadet 619-3071

Housing, RH

$

$

Not available

42

Cub Cadet 619-3072

Housing, LH

$477.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 716-0204

Retaining, Ring

$6.99

$

In Stock, only 2 left!

0

44

Cub Cadet 721-0523

Seal, Oil, 1.0 ID

$15.99

$

In Stock, only 1 left!

0

45

Cub Cadet 741-3114

Bearing, Ball

$26.99

$

In Stock, only 3 left!

0

46

Cub Cadet 710-0573

Screw, Hex Cap Locking 5/16-18 x 1.25 GR5

$6.49

$

In Stock, Qty 12

0

47

Cub Cadet 736-0615

Washer, Flat, 1.0 x 1.56 x .030

$8.99

$

In Stock, only 2 left!

0

Cub Cadet 759-3958

Sealant, Loctite Black, 5.3 oz. Tube.

$

$

Not available

Cub Cadet 737-3120

Drive System Fluid Plus - Quart
(Superseded to 490-000-C051)

$21.99

$

In Stock, Qty 10

0

Cub Cadet 737-3121

Drive System Fluid Plus - Gallon

$77.99

$

In Stock, only 3 left!

0

$

$
